XtendLan XL-FMUX4E1T User Manual

4-e1 over fiber calbe pdh fiber optic multiplexer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XL-FMUX4E1T
XL-FMUX4E1
4-E1 over fiber cable
PDH Fiber Optic Multiplexer
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL-FMUX4E1T and is the answer not in the manual?

Questions and answers

Related Manuals for XtendLan XL-FMUX4E1T

Summary of Contents for XtendLan XL-FMUX4E1T

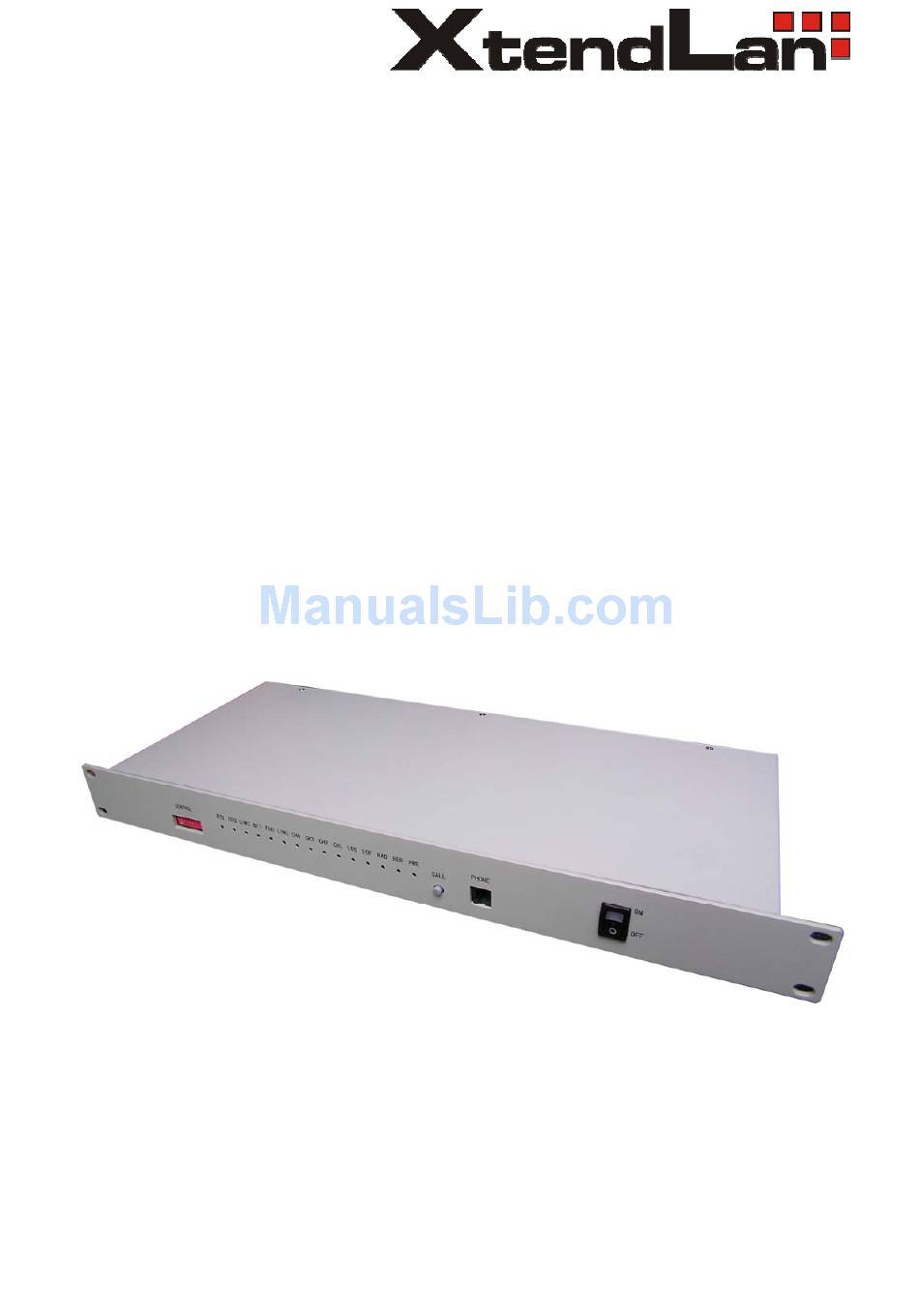

  • Page 1 XL-FMUX4E1T XL-FMUX4E1 4-E1 over fiber cable PDH Fiber Optic Multiplexer User’s Manual...

  • Page 2: Table Of Contents

    5.1.2 Front panel of XL-FMUX4E1 ..........................6     ................................2 EAR PANEL     5.2.1 Rear panel of XL-FMUX4E1T ..........................2     5.2.2 Rear panel of XL-FMUX4E1 ..........................3     INSTALLATION AND MAINTENANCE ........................4    ...

  • Page 3: Foreword

    XL-FMUX4E1T / XL-FMUX4E1T optic multiplexers are high in integration, strong in reliability, low in power consumption, small in size and overall in function, suitable for point to point optic transferring line, and able to provide public and special networks with high-quality, flexible and reliable optic transferring digital line.

  • Page 4: Specification

    • Humidity: UP to 90%, non-condensing • Dimension: 9.6”Lx 7.8’’W x 1.8’’H • Net Weight: 2kg 5 Form of the equipment 5.1 Front Panel 5.1.1 Front panel of XL-FMUX4E1T LEDs: LED Indicators Color Status Description Green Indicator for power supply.
  • Page 5 Loss of optical signal. Loss of frame Bit error in 2M lines E1 channels indicator. Green means All the CH1-CH4 Green 2M tributaries are working normally Ethernet rate indicator. ON means 100M on LINK1 Green ON/OFF the TP1. OFF means 10M Ethernet rate indicator.

  • Page 6: Front Panel Of Xl-Fmux4E1

    5.1.2 Front panel of XL-FMUX4E1 Description of the LED Indicators Status Color POWER Green Power supply is normal. Power supply is disconnected. CALL Yellow A call from remote terminal No call Loss of optical signal on the terminal No fault Loss frame synchronization...
  • Page 8 Descriptions of DIP Switches Switch Status Function First E1channel loop-back control switch. When it is set ON, the first 2M bit/s DIP SW1-1 ON/OFF data stream of remote terminal will loop-back to local terminal. When the equipment is operating in normal, it is at OFF . Second E1channel loop-back control switch.
  • Page 9 It switches the alarm display of fourth E1 channel. When it is set ON, the LED CH4 will indicate the loss of E1 input signal. When it is set OFF , the DIP SW1-8 ON/OFF LED CH4 will be shut off, and doesn’t Indicate the loss of E1 input signal even if the tributary occurs alarm.

  • Page 10: Rear Panel

    5.2 Rear panel 5.2.1 Rear panel of XL-FMUX4E1T Interface Description Interface Type Description Supports 10/100M, full duplex, half duplex, auto negotiation, RJ-45 TP1，TP2 interface, Bandwidth:100M Console It is available for manufacturer only E1 75Ω Unbalanced E1 tributaries E1 120Ω Balanced E1 tributaries...

  • Page 11: Rear Panel Of Xl-Fmux4E1

    5.2.2 Rear panel of XL-FMUX4E1 Connection Descriptions 2M Connector BNC/75ΩUnbalance or RJ-45/120ΩBalance Optical Transmitting Optical Receiving +18VDC～+36 VDC, two-pin parallel receptacle DC+24V Power Supply -36 VDC～72 VDC, two-pin parallel receptacle DC-48V Type 165～265VAC@50～60Hz, clover leaf 3-prong receptacle AC220V Power supply: For a model with AC power supply, AC power (165~265VAC) is supplied to the XL-FMUX4E1 through a becoming standard clover leaf 3-prong receptacle, located on the rear of the unit.

  • Page 12: Installation And Maintenance

    6 Installation and maintenance 6.1 Unpacking After the equipment arrives, unpack and check it before installation. Items to be checked are as follows: ● The external package is in good condition or not. If it is damaged seriously, please contact our after-sale service department immediately for solving.

  • Page 13: Start Equipment

    The installation position shall be easy for persons to access and transport equipment. The ambient environment shall be dry, clean and good in ventilation. 7 Start Equipment Turn the power supply switch to ON. After supplying power, check and verify relevant indicators and alarms according to the manual. Caution：...

  • Page 14: Fault Treatment

    8 Fault Treatment Before leaving factory, the equipment has been adjusted to optimal status, and all the functional interfaces are all in the front and rear panel. Except our technicians, no one shall open the unit shell freely. When the equipment has fault, use the stand-alone self-loop-back function to decide the fault scope and contact us immediately.

This manual is also suitable for:

Xl-mfux4e1
