XtendLan 1U Series Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Network Video Recorder
Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1U Series and is the answer not in the manual?

Questions and answers

Related Manuals for XtendLan 1U Series

Summary of Contents for XtendLan 1U Series

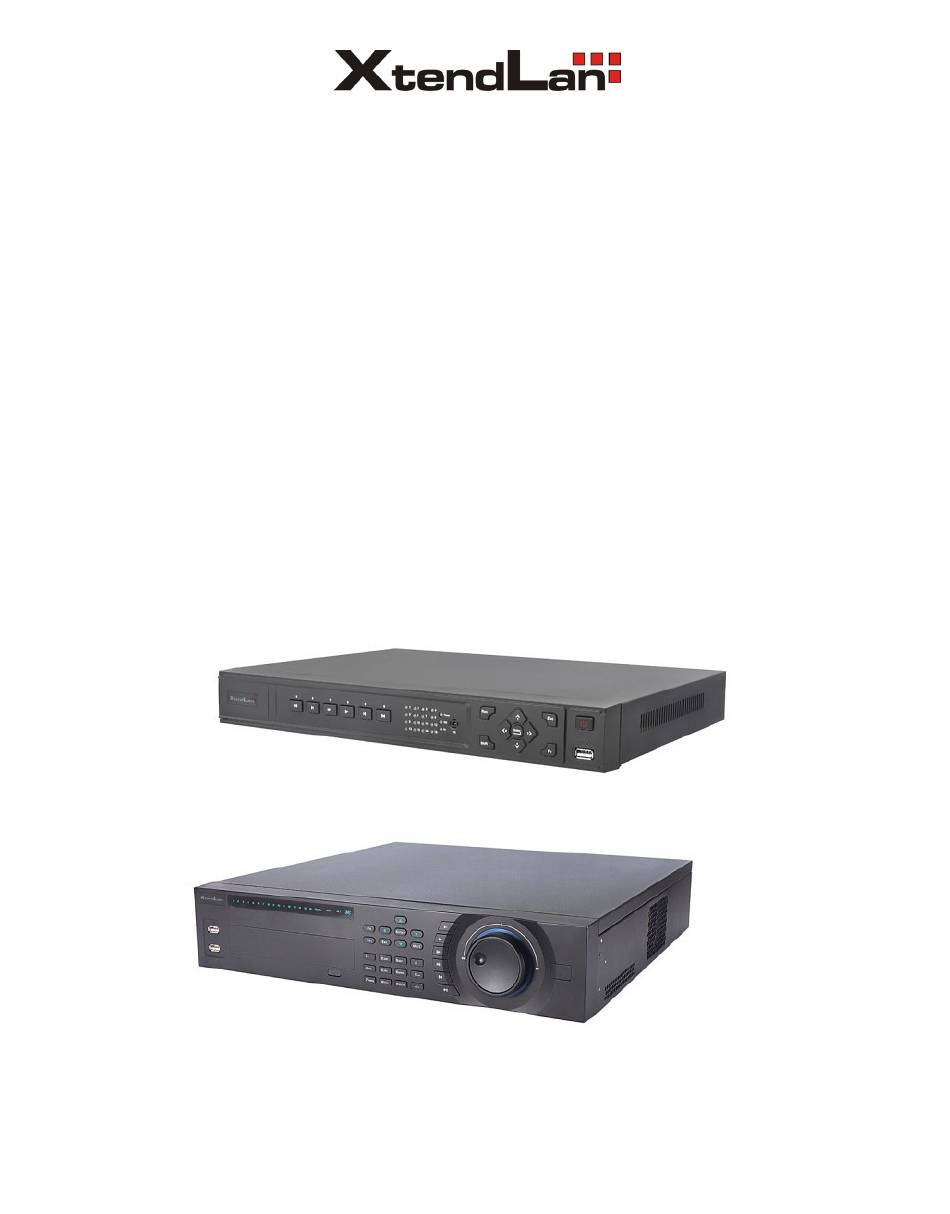

  • Page 1 Network Video Recorder Quick Start Guide...

  • Page 2: Table Of Contents

    Table of Contents Front Panel and Rear Panel ...........................7 Front Panel ..............................7 1.1.1 1U Series ............................7 1.1.2 2U Series ............................9 Rear Panel...............................12 1.2.1 1 U Series ............................12 1.2.2 2 U Series ............................13 HDD Installation..............................16 1U Series ..............................16 2U Series ..............................17 Network Connection............................19...
  • Page 3 Remote Device ............................30 Web ..................................32 General Introduction ..........................32 Preparation ............................32 6.1.1 6.1.2 Log in..............................32 Main Interface ............................33...
  • Page 4 Welcome Thank you for purchasing our network video recorder! This quick start guide is designed to be a reference tool for your system. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.
  • Page 5 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. 2．Transportation security Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.
  • Page 6 Be installed in well ventilated place; do not block the vent.  Accessories Check the following accessories after opening the box：  Please refer to the packing list in the box * Component Name 1U Series 2U Series Quantity ■ ■ 7-pin SATA cable ■...

  • Page 7: Front Panel And Rear Panel

    1 Front Panel and Rear Panel 1.1 Front Panel 1.1.1 1U Series The -1U series NVR front panel is shown as below. See Figure 1-1. Figure 1-1 Please refer to the following sheet for detail information. Name Icon Function Power button, press this button for three seconds to boot up or Power button shut down NVR.
  • Page 8 Go to menu Manually stop/start recording, working with direction keys Record or numeral keys to select the recording channel. Slow play Multiple slow play speeds or normal playback. One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.

  • Page 9: Series

    Record light 1-16 It becomes on when system is recording. IR Receiver It is to receive the signal from the remote control. abnormity The red light is for the HDD abnormity indicator Network abnormity The red light is for the network abnormity indicator 1.1.2 2U Series The 2U series NVR front panel is shown as in Figure 1-2.
  • Page 10 Increase/decrease numeral. Assistant function such as PTZ menu. Shift current activated control, and then move left and right. Left/   Right When playback, click these buttons to control playback bar. Go to previous menu, or cancel current operation. When playback, click it to restore real-time monitor mode. Confirm current operation Enter ENTER...
  • Page 11 In normal playback or pause mode, click this button to reverse Reverse/Pause playback  In reverse playback, click this button to pause playback. In normal playback click this button to pause playback Play/Pause  In pause mode, click this button to resume playback. Mult Window switch Click it to switch one-window/multiple-window.

  • Page 12: Rear Panel

    1.2 Rear Panel 1.2.1 1 U Series The 1U series NVR real panel is shown as in Figure 1-3. Figure 1-3 Please refer to the following sheet for detailed information. Port Name Connection Function USB port. Connect to USB mouse.

  • Page 13: Series

    Port Name Connection Function NO1～NO3 3 groups of alarm output ports. (Group 1： 1-3-ch alarm  port NO1～C1,Group 2:port NO2～ output port C1～C3 C2,Group 3:port NO3～C3）).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.
  • Page 14 Port Name Connection Function 1～16  Four groups of alarm input ports. The first Alarm input port. I/O port 1～16 group is from port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16.
  • Page 15 Port Name Connection Function Network port 10M/100M self-adaptive Ethernet port. Connect to the network cable. eSATA eSATA port The external SATA port. It can be connected to the peripheral devices of SATA port. Please pay attention to the HDD jumper when you connect the external HDD.

  • Page 16: Hdd Installation

    Strongly recommended to use the HDDs which we suggest you to use (high speed HDD that above 7200 rounds), we do not suggest you to use PC specified HDD. 2.1 1U Series Pleas follow the steps listed below to install the HDD.

  • Page 17: Series

    2.2 2U Series ① Unscrew the screws on the rear panel and cover the upper cover. ② Place the HDDs on the HDD bracket and fix the HDD on the bracket with four screws. ③ Use data cable to connect main board and HDD port, then connect the power (the other end) cable to the HDD port.
  • Page 18 Important Before you replace the HDD, please make sure you have shut down the device and unplug the power cable!

  • Page 19: Network Connection

    3 Network Connection 2U Series Connection Please refer to the following figure for 2U series connection. Figure 3-1...

  • Page 20: System Capability

    System Capability The max. system capability that this product series supports is 16-CH standard definition with transmission rate 2mbps every channel or 4-ch high definition with transmission rate 8mbps. The delay time for switch-in is under 500ms every channel. Model System capability 4-ch series Max.

  • Page 21: Gui Operation

    5 GUI Operation Connect the device to the monitor, insert the mouse and connect the power cable. Push the on/off button in the rear panel and then you can see the analog video output. You can use the mouse to implement some simple GUI operation.

  • Page 22: Schedule

    Figure 5-2 5.2 Schedule In the main menu, from setting to schedule, you can go to schedule menu. See Figure 5-3.  Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.

  • Page 23: Network

    Shortcut settings: Users can copy the settings of channel A to channel B to achieve the same configuration effect.E.g. choose channel 1 and click the copy button after relevant settings are done, then paste to channel3, you can find that the configuration of channel3 is the same as that of channel1.

  • Page 24: Ptz

    5.4 PTZ Note: All the operations here are based on PELCOD protocol. For other protocols, there might be a little difference. Cable Connection Please follow the procedures below to go on cable connection  Connect the dome RS485 port to NVR 485 port. ...

  • Page 25: Hdd Management

     Zoom  Focus  Iris Please click icon to adjust zoom, focus and iris. Figure 5-6 In Figure 5-6, please click direction arrows to adjust PTZ position. There are total 8 direction arrows. Figure 5-7 Here is a sheet for you reference. Name Function function...
  • Page 26 Figure 5-8 For the HDD group setup operation, please note:  Each channel’s records can be stored into the specified HDD Group.  Each HDD Group is corresponding to several hard disks, while one hard disk is only included in one HDD Group. ...
  • Page 27 Figure 5-9 In Figure 5-10, you can see the 6th and 7th position hard disks both belong to HDD Group 2. Important Once you change the HDD Group settings, system will pack the records and snapshots, and then reboot. Figure 5-10 Channels Setting Click the button named with “Channels Settings”...

  • Page 28: Alarm

    The Figure 5-11 and Figure 5-12 show that channels 1 to 16 are associated to HDD Group NO 1, and channels 17 to 32 are associated to HDD Group NO 2. Therefore the records of channels 1 to 16 are stored into the hard disk(s) which belong to HDD Group NO 1, and the records of channels 17 to 32 are stored into the hard disk(s) which belong to HDD Group NO 2.
  • Page 29  Anti-dither: Here you can set anti-dither time.  Show message: System can pop up a message to alarm you in the local host screen if yo u enabled this function.  Alarm upload: System can upload the alarm signal to the network (including alarm centre) if you enabled current function.

  • Page 30: Remote Device

    Figure 5-15 Figure 5-16 5.7 Remote Device The remote device interface is shown as in Figure 5-17. Here you can set IPC IP address, port, remote device channel number, user name and its password. IPC port number is 37777; remote device channel number is 1 by default. IPC user name is admin and password is admin.
  • Page 31 Note: this device supports the third party IPC, including Panasonic, Axis, Samsung and etc.

  • Page 32: Web

    6 Web 6.1 General Introduction The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window. Important The following operation is based on 16-channel series device. 6.1.1 Preparation Before log in, please make sure: Step1: PC and NVR connection is OK.

  • Page 33: Main Interface

    Figure 6-2 IE Safety Setup After installation, the interface is shown as below. See Figure 7-3. Figure 6-3 Login interface Please input your user name and password. Default factory name is admin and password is admin. Note: For security reasons, please modify your password after you first login. 6.2 Main Interface NVR web main interface is shown as in Figure 7-4.
  • Page 34 ② ③ ① ④ ⑤ ⑥ There are six sections: Section 1: Monitor channel menu tree   Section 2: System menu  Section 3: PTZ control  Section 4: Video setup and other setup  Section 5: Preview window ...

This manual is also suitable for:

2u series
