Summary of Contents for XtendLan GONU11B

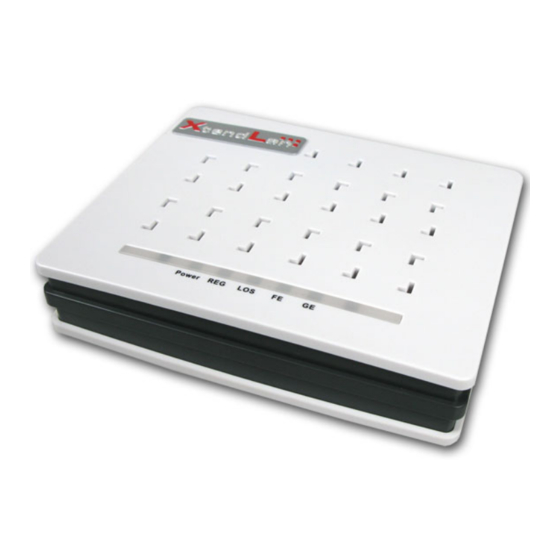

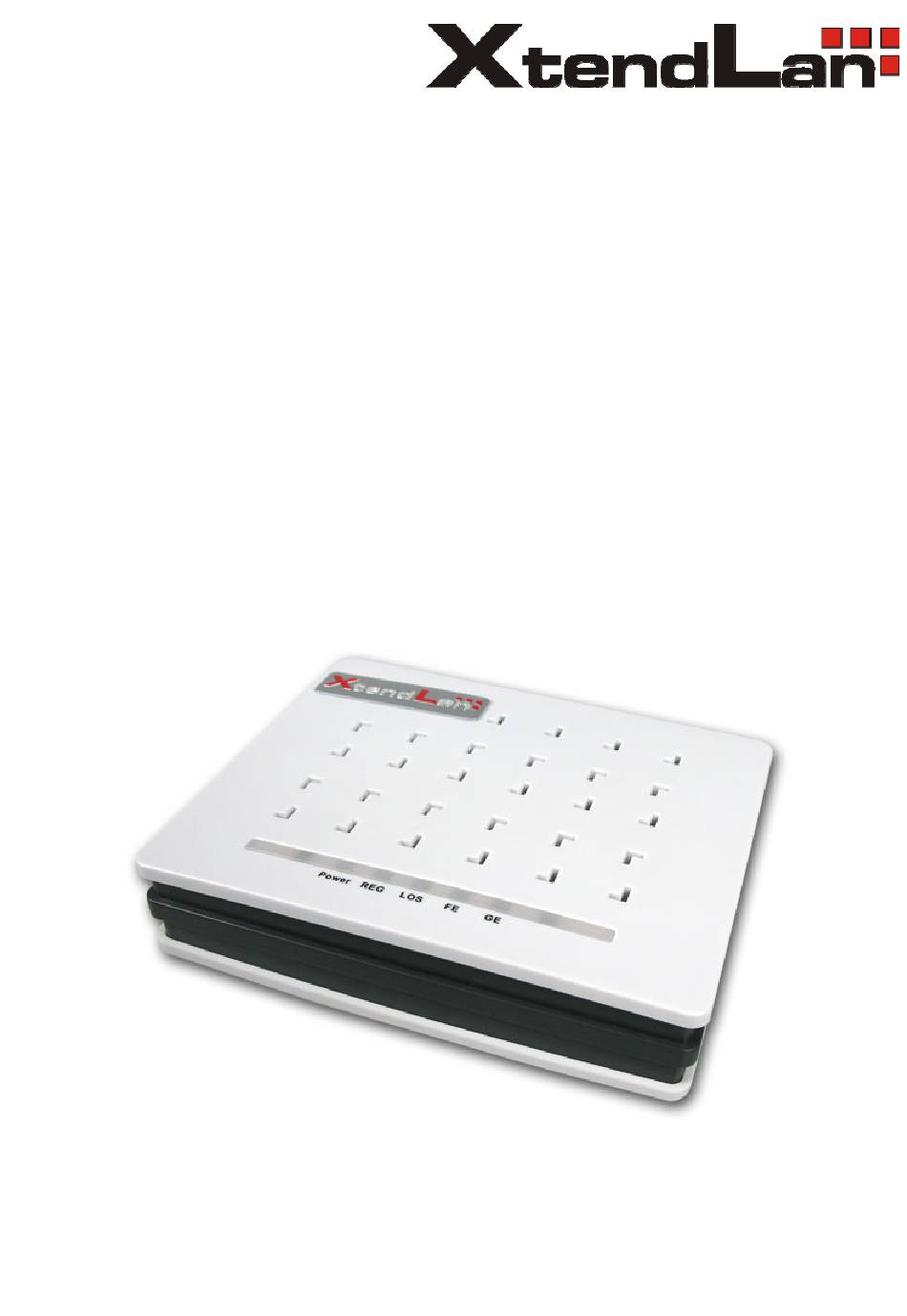

- Page 1 GONU11B GEPON ONU client unit User’s Guide...
-
Page 2: Table Of Contents
Contents Contents Product Overview ........................1 Overview ........................1 Introduction ....................... 1 Features ........................1 Rear panel ......................... 2 LED Description (See table 1) .................. 3 Technical Specifications .................... 4 1.6.1 Regulatory Compliance ..................4 1.6.2 Absolute Maximum Rating ................4 1.6.3 Recommended Operation Conditions ............... -
Page 3: Product Overview
GONU11B ONU provide high bandwidth over a distance of 10 km, breaking through the limitations on bandwidth and transmission distance and making the access solution more flexible. Due to their large-scale coverage, this product reduces the number of offices and meets the operators’... -
Page 4: Rear Panel
Substances (RoHS) Directive, 2002/95/EC 1.4 Rear panel As shown in Figure 1, GONU11B ONU provides one PON interface (PON), one 10/100/1000 BASE-T interface (GE), one 10/100 BASE-T interface (FE), one reset button (RESET), one power socket (POWER) and one power button from left to right on its rear panel. -
Page 5: Led Description (See Table 1)
GONU11B User’s guide 1.5 LED Description (See table 1) Figure 2 Table 1 Display of status (LED) Item LED Label Color Status Description Power is on POWER Green Power is off Service offered Link Green No service offered Normal operation... -
Page 6: Technical Specifications
GONU11B User’s guide 1.6 Technical Specifications 1.6.1 Regulatory Compliance This product has been tested according to American and European product safety and electromagnetic compatibility regulations (See Table 2). Table 2 Regulatory Compliance Feature Standard Performance Electrostatic Discharge 61000-4-2 (ESD) to the Duplex LC... -
Page 7: Recommended Operation Conditions
GONU11B User’s guide 1.6.3 Recommended Operation Conditions Functional operation of the system is implied at Recommended Operating Conditions (shown in Table 4). Table 4 Recommended Operating Conditions Parameter Symbol Min. Typ. Max. Unit Supply voltage range 4.75 12.6 Supply current... -
Page 8: Power Supply Specification (Adapter)
GONU11B User’s guide Parameter Specification/Value Supported Link Distance Maximum 100m Table 7 Performance Parameter Specification Remote loopback Remote loopback of ONU initiated from OLT shall be supported Management Telnet, console interface with CLI Remote system software upgrade based upon Port, IEEE802.1p, IPv4 Type of Service (ToS) or Differentiated Services (Diff-Serv), IPv6 Traffic Class, 802.1Q VLAN ID,... - Page 9 GONU11B User’s guide Figure 3...
-
Page 10: Hardware Installation
GONU11B User’s guide 2 Hardware Installation 2.1 Safety Precautions Make sure the GEPON service is enabled. Ensure that the optical fiber is long enough to achieve the desired installation place. Put the ONU on a sturdy table. When installing the ONU on a vertical surface, you should properly fix the ONU device and the power adapter to avoid them falling down. -
Page 11: Network Cable Connection
GONU11B User’s guide 2.3 Network Cable Connection Step 1 Insert one end of the network cable (RJ-45) into the 10/100/1000BASE-T or the 10/100BASE-T interface of the ONU. Step 2 Insert the other end of the cable (RJ-45) into the RJ-45 port on the peer device.
