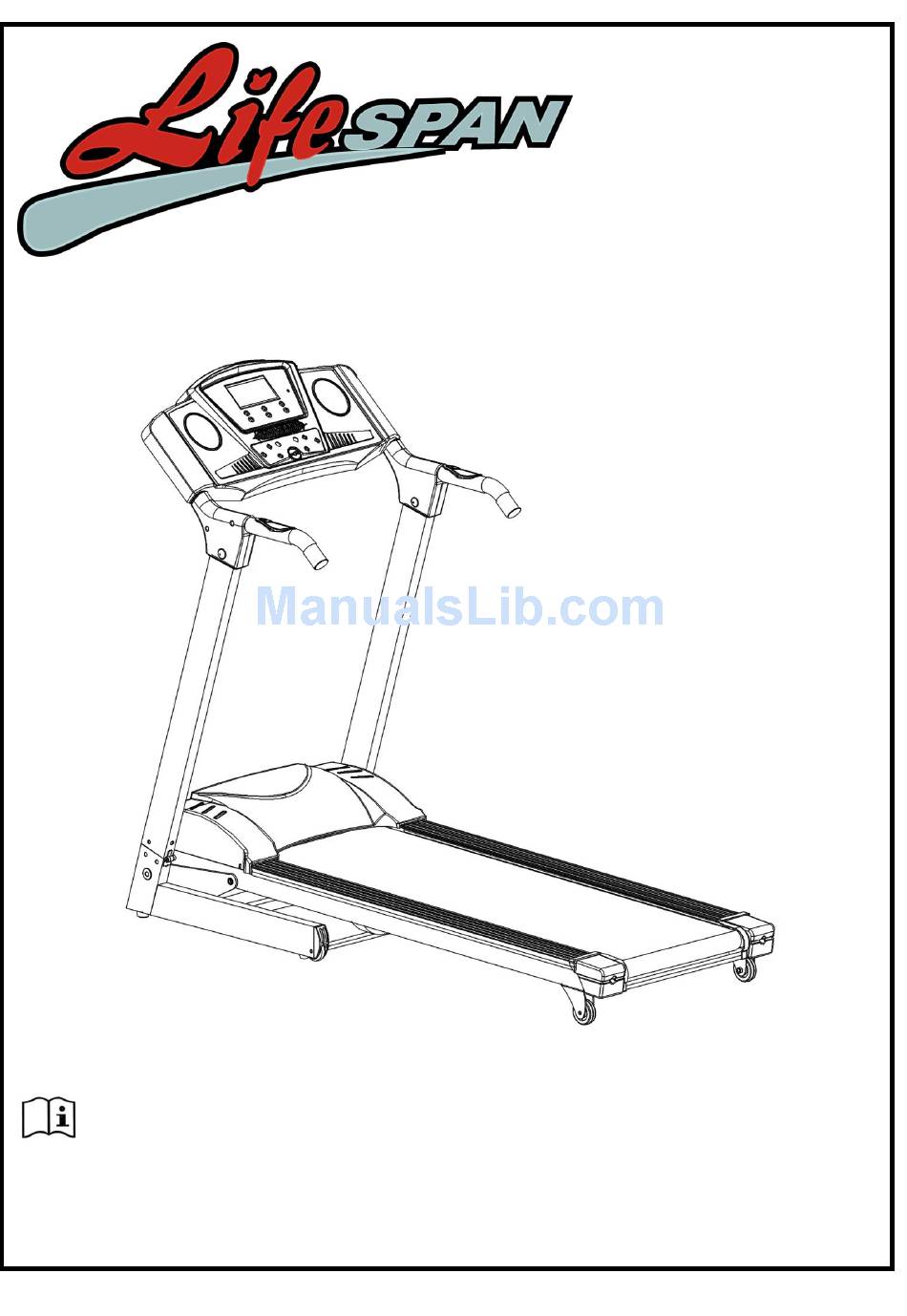

STYLE OWNER'S MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner's manual for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STYLE and is the answer not in the manual?

Questions and answers

Related Manuals for Life Span STYLE

Summary of Contents for Life Span STYLE

  • Page 1 STYLE OWNER’S MANUAL Product may vary slightly from the item pictured due to model upgrades Read all instructions carefully before using this product. Retain this owner’s manual for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS IMPORTANT ELECTRICAL INFORMATION IMPORTANT OPERATING INSTRUCTIONS ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS GROUNDING METHODS OPERATION GUIDE EXERCISE GUIDE MAINTENANCE INSTRUCTIONS EXPLODED DIAGRAM PARTS LIST TROUBLE SHOOTING GUIDE WARRANTY REGISTRATION STYLE...

  • Page 3: Important Safety Instructions

    Do not operate where aerosol spray products are being used or where oxygen is being administered. Sparks from the motor may ignite a highly gaseous environment.  Never drop or insert any object into any openings.  The treadmill is intended for in-home use only and not suitable for long time running. STYLE...

  • Page 4: Important Electrical Information

     NEVER remove any cover without first disconnecting AC power.  NEVER expose this treadmill to rain or moisture. This treadmill is not designed for use outdoors, near a pool, or in any other high humidity environment. STYLE...

  • Page 5: Important Operating Instructions

    A safety key is provided with this machine. Remove the safety key will stop the walking belt immediately; the treadmill will shut off automatically. Inserting the safety key will reset the display.  Do not use excessive pressure on console control keys. They are precision set to function properly with little finger pressure. STYLE...

  • Page 6: Assembly Instructions

    Specification Qty. main frame Lock washer lock washer S=13, 14, 15 5# Allen Wrench Bolt M8*16 Screw ST4.2*12 40 Left handle bar cover L Left handlebar cover R 25 Right handle bar cover L 32 Right handlebar cover R STYLE...
  • Page 7 1. Using the 5# Allen wrench, screw through STEP 3: the bolt (46) to Lock washer (66), then lock the Left upright (3) onto MAIN FRAME (1) Note: Support the Uprights with your hands to prevent them falling down and causing injury. STYLE...
  • Page 8 1. Use the 5# Allen wrench, screw through the bolt (46) to Lock washer (66), then lock the COMPUTER (64) onto R&L upright (3,4). STEP 6: 1. With ST4.2*12 Screw (59), insert the UPRIGHT COVER (25, 32, 40, 41) onto the L&R handle bar. STYLE...

  • Page 9: Folding Instructions

    (10) locking into the round tube. Unfolding: Support position A with your hand , depress position B of the air pressure control bar, then the base frame will descend automatically STYLE...

  • Page 10: Grounding Methods

    This product is for use on a nominal 240-volt circuit and has a grounding plug that looks like the plug illustrated in sketch A in following figure. Ensure the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product. STYLE...

  • Page 11: Operation Guide

    “End”. Upon reaching “0”, the computer will display “End” and will slow down to a stop. Then it will enter standby in 5 seconds 5. PUL/CAL window: shows the heart rate and calories burnt. When displaying calorie value the range is STYLE...
  • Page 12 6. “INCLINE+”, “INCLINE-”: increase or decreases incline. Adjust the incline gradient during excising. Sets parameter when stopped. 7. “SPEED: 5, 8, 12” Speed adjustment shortcut key 8. “INCL: 5, 8, 12” Incline adjustment shortcut key. Fan button: start or stop the fan (optional). STYLE...
  • Page 13 Upon completion of the segments, the program will end, slowing the treadmill down to a stop. During the operation speed can be adjusted but the next segment will be automatically adjusted to the program defaults. Built-in program data is listed on the table. STYLE...
  • Page 14 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 4. VALUE RANGE: PROGRAM BEGIN SET UP RANGE DISPLAY RANGE 0:00－99:59 TIME(MIN:SECOND) 0:00 15:00 5:00-99:00 INCLINE(LEVEL) 0-20 0-20 SPEED(K/h) 1.0-18 1.0-18 0.00－99.9 DISTANCE(K) 0.5-99.9 PULSE(hypo/min) 50-200 0－999 CALORIE(THERM) 10-999 STYLE...
  • Page 15 Height 100----200 Weight 20-----150 ≤19 Under weight =(20---25) Normal weight =(25---29) Over weight ≥30 Obese 7. SLEEP FUNCTION: The treadmill automatically enters sleep mode after 10 minutes of inactivity. Press any key on the display to wake the treadmill. STYLE...

  • Page 16: Exercise Guide

    So as you can see, the fitter you are, the healthier and greater you will feel. Warm-up Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise. STYLE...

  • Page 17: Workout Guidelines

    The most important factor here is the amount of effort you put in. The harder and longer you work, the more calories you will burn. Effectively this is the same as if you were training to improve your fitness, the difference is the goal. STYLE...

  • Page 18: Maintenance Instructions

    General Care  Check parts for wear before use.  Pay particular attention to the fixing knobs and make sure they are tight.  Always replace the mat if worn and any other defective parts. STYLE...

  • Page 19: How To Check The Running Mat For Proper Lubrication

    If the surface is dry to the touch, apply a suitable silicone lubricant. We recommend that you use a silicone based spray to lubricate your Lifespan treadmill. This can be purchased from your local sports retailer or hardware store. STYLE...

  • Page 20: Belt Tension Adjustment

    DO NOT OVER TIGHTEN - Over tightening will cause belt damage and premature bearing failure. This may also cause reduced motor performance and excessive roller wear. NOTE: When properly tightened, the sides of the belt can be raised approximately 2-3 inches off the board. STYLE...

  • Page 21: Belt Tracking Adjustment

    When adjusting the belt using the 6 mm Allen Key, it is important to adjust the belt in half turn increments. Over adjusting the belt can cause damage to the mat. If belt drifts to the RIGHT If belt drifts to the LEFT STYLE...

  • Page 22: Exploded Diagram

    10. EXPLODED DIAGRAM STYLE...

  • Page 23: Parts List

    WHEEL COVER SCREW ST4.2*12 MOTOR BELT TRANSFORMER BLUE CUSHION PAD LOCK WASHER BLACK CUSHION PAD LOCK WASHER TRANSPORT WHEEL LOCK WASHER FOOT PAD SPRING WASHER ADJUSTABLE WHEEL FLAT WASHER RING PROTECTING WIRE PLUG COMPUTER POWER WIRE BUCKLE CONTROL BOARD STYLE...
  • Page 24 BLUE 150 AC SINGLE LINE BROWN 150 DC MOTOR RUNNING BOARD MAGNETIC CORE MAGNETIC RING FLAT WASHER INCLINE MOTOR BOLT M10*30 L15 BOLT M10*50 L15 SPEAKER PLASTIC BOARD SPEAKER AMPLIFIER BOARD SCREW ST4.2*12 SCREW ST2.9*6.5 MP3 CONNECT WIRE SCREW ST3.5*40 STYLE...

  • Page 25: Trouble Shooting Guide

    2. Check the state of the transformer is good, if broken, change it. Burst clash 1. Ensure power is correct, if not, use correct power to test. 2. Check if the bottom control is burnt out, if burnt out replace it and then reconnect the motor wire. STYLE...
  • Page 26 1. The wires from computer and bottom control board are not control board and properly connected, please check each wire. If the wire is computer destroyed replace it. 2. Ensure wires of control board are properly connected, replace any broken parts on the board 3. Replace transformer STYLE...

  • Page 27: Warranty Registration

    Please visit the following link to complete the product warranty form online. Please visit: http://www.warrantyform.lifespanfitness.com.au PLEASE NOTE: YOUR WARRANTY IS ONLY VALID IF YOU CAN PROVE YOU ARE THE ORGINIAL PURCHASER OF THIS ITEM (i.e. a copy of the receipt, invoice, delivery date or internet confirmation) STYLE...
