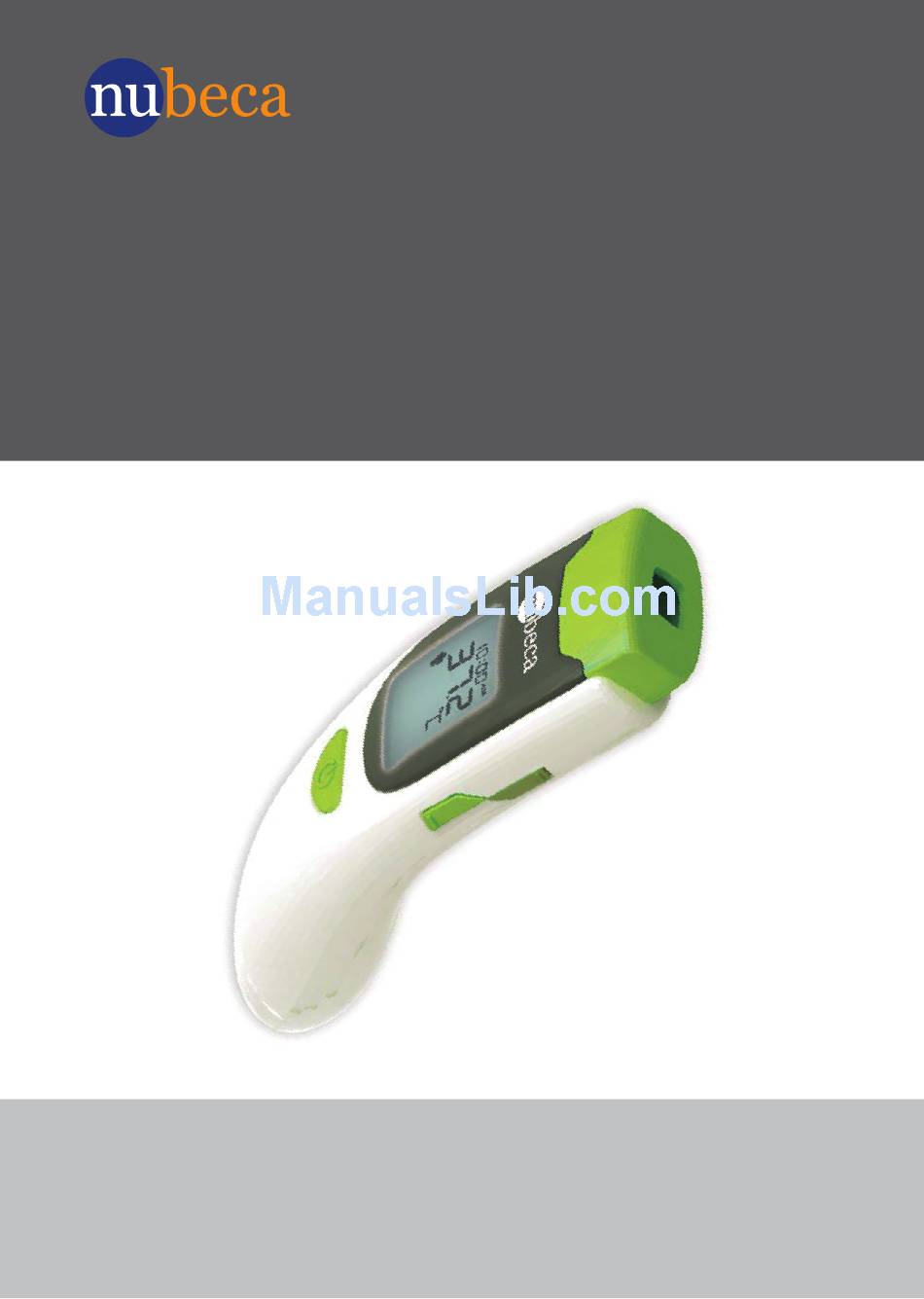

- Page 1 RT-1241 Infrared Forehead non-contact Thermometer OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ THIS BEFORE USING The following basic safety precautions should always be taken. 1. Close supervision is necessary when the thermometer is used by, on, or near children, handicapped persons or invalids. 2. Use the thermometer only for the intended use described in this manual. -
Page 3: Table Of Contents
TABLE OF CONTENTS CAUTIONS AND WARNINGS RESTRICTIONS OF USE INTRODUCTION HIGHLIGHTED FEATURES PACKAGE CONTENTS THERMOMETER PARTS DISPLAY SCREEN DISPLAY MODE SETTING THE THERMOMETER REPLACING THE BATTERY ABOUT NORMAL BODY TEMPERATURE & FEVER USING THE DEVICE As a Body Scan Thermometer As a Surface Scan Thermometer As a Room Scan Thermometer RECALLING THE MEMORY... -
Page 4: Cautions And Warnings
CAUTIONS AND WARNINGS As with any thermometer, proper technique is crucial to obtaining accurate temperature readings. Please read this manual thor- oughly and carefully before using. Always operate the thermometer in an operating temperature range 10°C to 40°C (50°F to 104°F), and relative humidity less than 95%. -
Page 5: Introduction
INTRODUCTION Thank you for choosing RT-1241 Thermometer. Please read this and correctly. Please keep this instruction manual for future refer- ence. This innovative medical device uses advanced infrared (IR) technology to measure temperature instantly and accurately on the forehead/surface. Intended Use... -
Page 6: Highlighted Features
Memory function allows you to recall previous results up to 10 previous results. Easy to read LCD with backlight in a dark environment. Able to measure temperature of other objects without contact and room temperature. PACKAGE CONTENTS RT-1241 Thermometer User’s Manual Two 1.5V AA batteries Warranty Card... -
Page 7: Thermometer Parts
THERMOMETER PARTS °C / °F Button SET Button Probe Display Screen On/Scan Button MODE Button MEM Button Battery Cover DISPLAY SCREEN Low battery indicator Date indicator Date/Time Temperature reading Body temperature indicator Object surface temperature indicator Room temperature indicator Memory mode Temperature unit Error warning... -
Page 8: Display Mode
DISPLAY MODE Three modes can be selected. 1. Body mode This mode is used to measure the forehead temperature. It also provides clock. 2. Surface mode This mode is used to measure the object surface tempera- ture. It also provides clock. 3. -
Page 9: Setting The Thermometer
SETTING THE THERMOMETER tery. Step 1 Press the for 5 seconds to enter the setting mode. Step 2 Set the date and time Press the Mode or °C / °F button to select the correct month. Press the to move on the next step. Press the Mode or °C / °F button to select the correct day/year/ hour/minute. -
Page 10: Replacing The Battery
NOTE If the meter is idle for 30 seconds during the setting mode, it will switch off automatically. REPLACING THE BATTERY The thermometer comes with two 1.5 V AA alkaline batteries. The meter will display “ ” to alert you when the meter power is getting low. -
Page 11: About Normal Body Temperature & Fever
ABOUT NORMAL BODY TEMPERATURE & FEVER Body temperature can vary from one individual/person to next. It also varies by location on the body and time of day. Below shows the statistical normal ranges from different sites. Please keep in mind that temperatures measured from different sites, even at the same time, should not be directly compared. -
Page 12: Select The Temperature Unit
SELECT THE TEMPERATURE UNIT This meter provides two measurement units used for indicating the body / surface / room temperature, °C or °F, for your preferred selec- tion. Step 1 Press the Step 2 Press the °C / °F button to select. Press the to begin the mea- surement or keep the meter in idle for 30 seconds to automatically turn it off. -
Page 13: Using The Device
USING THE DEVICE As a Body Measurement Thermometer Step 1 Remove the front protec- tive cap if present. Press turn on the thermometer. Step 2 Press the Mode button for 5 seconds to enter the dis- play mode to select Body mode. The Body temperature indicator “... -
Page 14: As A Surface Scan Thermometer
NOTE As the forehead measurement temperature is likely to be af- fected by sweat, oil and the surroundings, the reading shall be taken as a reference only. If the probe is placed at an angle close to the forehead measurement, the reading will be affected by surrounding temperature. -
Page 15: As A Room Scan Thermometer
Step 3 Move the probe close to the object surface. Press and hold the . Make sure the not at an angle. Perform an object mea- surement with a distance within 5 cm. Step 4 Read the result. Release the button and read the result. “ ”... - Page 16 Step 2 Press the Mode button for 5 seconds to enter the dis- play mode to select Room mode. The Room temperature indicator “ ” Step 3 Press and hold the On/Scan button. The built-in sensor inside the thermometer will capture the ambient temperature automatically.
-
Page 17: Recalling The Memory
RECALLING THE MEMORY Your thermometer stores 10 most recent readings Step 1 Be sure the thermometer is OFF before recalling this memory. Step 2 Press the to turn on the thermometer. Step 3 Press the MEM button to enter the memory mode. Each time you press the MEM button, a result will be displayed in the order of dates... -
Page 18: Care & Cleaning
Step 4 Exit the memory. Press ON/SCAN button to return to the measurement mode or keep the meter in idle for 30 seconds in the memory mode, it will switch off automatically. CARE & CLEANING The probe is not waterproof. Please wipe with a clean and dry cot- ton swab to clean the probe on the inside. -
Page 19: Troubleshooting
TROUBLESHOOTING The table below shows problems you may encounter. All error messages below would be shown together with backlight. Please follow “what to do” to resolve problems. If the problem still exists, please call your local dealer for help. Message What it means What to do Appear when envi-... -
Page 20: Specifications
SPECIFICATIONS RT-1241 Model no. 150mm(L) x 48.48mm(W) x Dimensions 55.16mm(H) 128.8 g Weight (include 2 x1.5V AA batteries) Battery 2 x 1.5 V AA alkaline batteries Displayed temperature range 22°C to 44°C (71.6°F to 111.2°F) Display resolution 0.1°C / 0.1°F ±0.2°C (±0.4°F) for the range... -
Page 21: Symbol Information
SYMBOL INFORMATION Symbol Referent Consult instructions for use Manufacturer Serial number Caution, consult accompanying documents CE mark Type BF Equipment Do not use if package is damaged Authorized representative in the European Community... -
Page 22: Reference Standards
REFERENCE STANDARDS Device Standard: Device Corresponds to the requirements of the standard for infrared thermometers ASTM E1965-98 EN 12470-5 EN 60601-1- 2:2007/AC:2010 EN 60601-1-4:1996 EN 60601-1-6:2010 Electromagnetic Compatibility: EN 60601-1-2 The stipulations of EU-Directive 93/42/EEC for Medical Devices...
