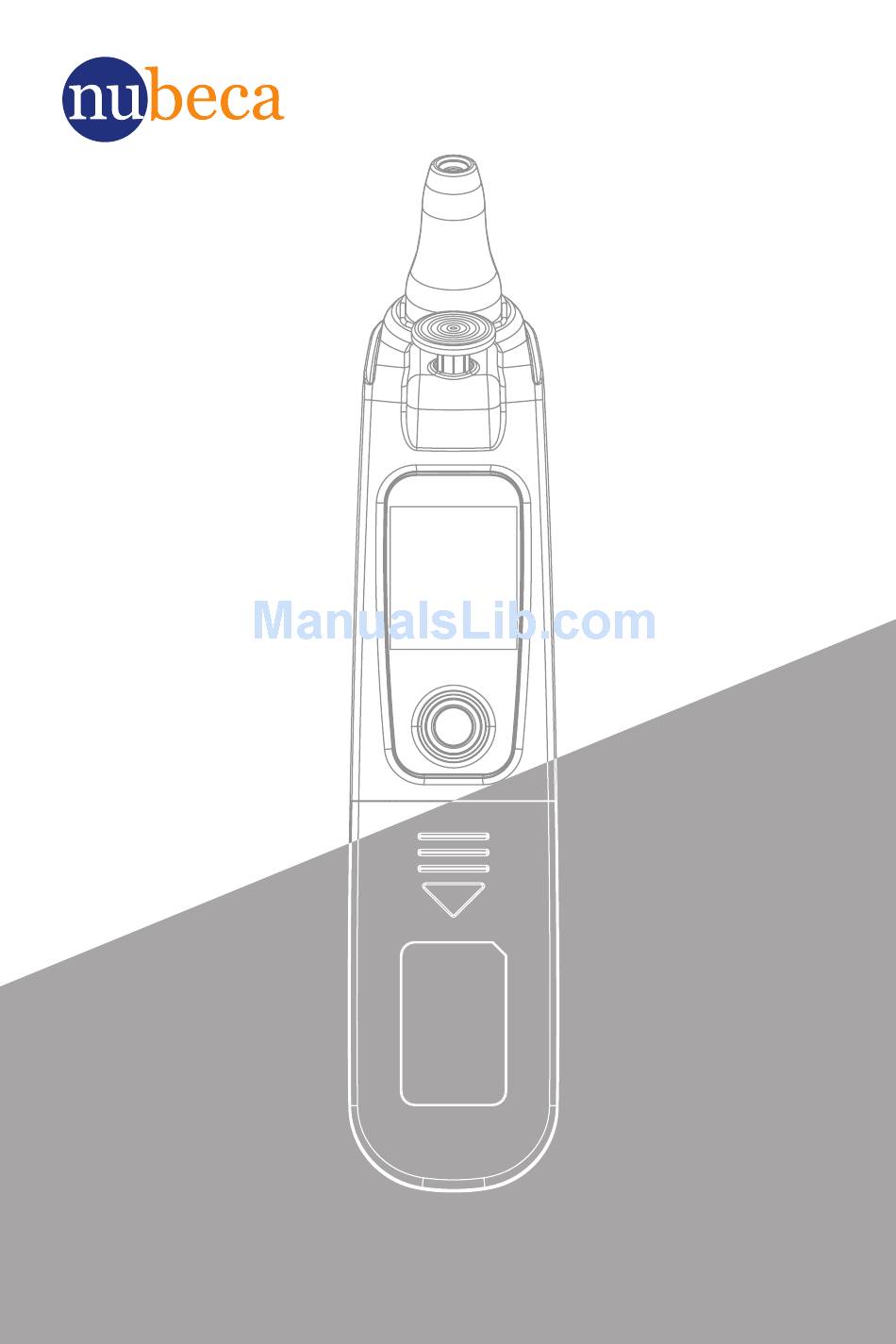

- Page 1 RT-1261B Ear Thermometer Owner’s Manual 311-1261000-010 Version 1.0 April, 2009...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ THIS BEFORE USING The following basic safety precautions should always be taken. 1. Close supervision is necessary when the thermometer is used by, on, or near children, handicapped persons or invalids. 2. Use the thermometer only for the intended use described in this manual.
-
Page 3: Table Of Contents
TABLE OF CONTENT Cautions and Warnings Restrictions of Use Introduction Package Contents Thermometer Parts LCD Screen Replacing the Battery About Normal Body Temperature & Fever... - Page 4 Using the Device Replacing Lens Filter Taking Ear Thermometer Hints on Taking Ear Temperature Recalling the Memory Viewing Results on a Personal Computer Care & Cleaning Fever Indicator Troubleshooting Specifications Symbol Information Warranty...
-
Page 5: Cautions And Warnings
Cautions and Warnings As with any thermometer, proper technique is crucial to Please read this getting accurate temperature readings. manual thoroughly and carefully before using. Always store the thermometer in a cool and dry place: temperatures between -20 ℃ to 60 ℃ relative humidity less than 95%. -
Page 6: Restrictions Of Use
Restrictions of Use This thermometer is clinically proven to produce accurate temperature measurements. However, please be advised if you have the following situations: The accuracy cannot be ensured for a person who has deformity in the ear such that the thermometer probe can not be properly inserted into the ear canal. -
Page 7: Introduction
Introduction Thank you for choosing nu-beca RT-1261 ear thermometer. This innovative medical device relies on on advanced infrared (IR) technology to measure temperature instantly nu-beca RT-1261 ear thermometer is an elegantly designed infrared thermometer meant for your family. Intended use nu-beca RT-1261 ear thermometer is intended for the intermittent measurement and monitoring of human body temperature from ear canal. -
Page 8: How Does It Work
How does it work The thermometer measures the infrared heat generated by the eardrum and its surrounding tissue. The thermometer then converts it into a temperature value shown on LCD. NOTE The thermometer does not emit any infrared signal. -
Page 9: Package Contents
Package Contents nu-beca RT-1261 Two 1.5V AAA Ear Thermometer Batteries User’s Manual Lens Filter Storage Case Warranty Card... -
Page 10: Thermometer Parts
Thermometer Parts Lens filter Lens filter ejection button On/Memory button Sticker Battery cover Data port Probe lens Probe Lens filter detector Scan button... -
Page 11: Lcd Screen
LCD Screen... - Page 12 Ear temperature indicator Non-lens filter warning Temperature scanning in progress Temperature display Memory mode Record numbers Low bettery indicator Temperature unit Temperature indicator for memory mode Communication symbol...
-
Page 13: Replacing The Battery
Replacing the Battery The thermometer comes with two 1.5V AAA alkaline batteries. Replace it when “ ” appears. Please follow the steps to replace new batteries. Step 1 Remove the battery cover. Step 2 Place the new battery in the battery compartment and press it in until the battery is firmly secured. - Page 14 Step 3 Reattach the battery cover. NOTE Although the thermometer works when “ ” appears, we still recommend that you change the battery to obtain an accurate result. Remove the battery if stored for a long period of time. The battery should be kept out of reach of children. If they are swallowed, promptly see a doctor for help.
-
Page 15: About Normal Body Temperature & Fever
About Normal Body Temperature & Fever Body temperature can vary from one individual/person to next. It also varies by location on the body and different time of the day. Below shows the statistical normal ranges from different sites. Please keep in mind that temperatures measured from different sites, even at the same time, should not be directly compared. -
Page 16: Using The Device
Using the Device Replacing Lens Filter Step 1 Check the lens filter is clean and new. Step 2 Attach new lens filter into the probe. Now, you can start to test your ear temperature. NOTE If a lens filter is not attached on the probe, LCD will show “ ”... - Page 17 Taking Ear Temperature Step 1 Make sure lens filter is firmly attached to the probe. Step 2 Press and release the On / Memory button to turn on the thermometer. When ready, the thermometer displays the last measurement. Step 3 Gently fit the probe into the ear canal.
- Page 18 Step 4 Press and release the Scan button. Do not remove the thermometer until it beeps. Step 5 Read the result. “ ” is shown together with a temperature value. Step 6 Discard used lens filter into trash by pressing lens filter ejection button. NOTE Turn off the thermometer by pressing On / Memory button twice.
-
Page 19: Hints On Taking Ear Temperature
Hints on Taking Ear Temperture 1. As with other of thermometer, you may observe slight variations in consecutive measurements. It is recommended that you take 3 temperature readings and use the highest one for the following situations: Infants younger than 3 months old. Children younger than 3 years old and who have a compromised immune system and the presence / absence of fever is critical. -
Page 20: Recalling The Memory
Recalling the Memory Your thermometer stores 10 recent readings in the memory. Step 1 Be sure the thermometer is OFF before recalling this memory. Step 2 Press the On / Memory button to turn on the thermometer. Step 3 Press the On / Memory button for 3 seconds to enter memory mode. - Page 21 Step 4 Exit the memory. Press the Scan button and LCD will show latest results with flashing “ ” . Then press On/Memory button again and LCD will show “ OFF ” to exit memory.
-
Page 22: Care & Cleaning
Care & Cleaning If you would like to clean the probe lens, wipe it gently with an 70% alcohol swab or soft cloth moistened with 70% alcohol. Do not attach a new lens filter within 30 minutes. The probe is not waterproof. Please wipe with a clean cloth which is dry or damped with 70% alcohol. -
Page 23: Troubleshooting
Troubleshooting The table below shows problems you may encounter. All error messages below would be shown together with orange backlight. Please follow “what to do” to resolve problems. If the problem still exists, please call your local dealer for help. Message What it means What to do... -
Page 24: Specifications
Specifications Model no. RT-1261B 160.5mm(W) x 45.9mm(H) x 32.5mm(D) Dimensions 98.33g (include 2 x1.5V AAA batteries) Weight 2 x 1.5V AAA alkaline batteries Battery UART (USB& RS232) /ZigBee /Bluetooth External output 32 ℃ to 43 ℃ (89.6 ℉ to 109.4 ℉ ) -
Page 25: Symbol Information
Symbol Information Symbol Referent Consult instructions for use Keep away from sunlight Keep dry Temperature limitation Date of manufacture Manufacturer Serial number Caution, consult accompanying documents Authorized representative in the European Community CE mark Type BF equipment Do not use if package is damaged. -
Page 26: Warranty
Warranty nu-beca warrants this product to be free of defects in workmanship and materials for a period on ONE year from the date of purchase. During the warranty period, if this product is found to be defective, you may bring it together with the purchase receipt and Warranty Certificate on a carry-in basis to nu-beca's office during normal business hours for warranty service.
