All of these instructions must be followed carefully before using the bicycle.
Assembly manual overview:
1. Removing the bicycle from packaging
2.
Mounting the handlebar
3.
Mounting the front wheel
4.
Adjustment of the front disc brake
5.
Mounting the pedals
6.
Mounting the seat post/saddle
7.
Mounting rear fender and reflector
8.
Mounting front fender and reflector
9.
Check list before releasing the bicycle to end-user
10.
Contact
Tools included:
4mm Allen key, 5 mm Allen key, 6 mm Allen key, 15mm wrench/pedal wrench.
1. Removing the bicycle from packaging
When removing the bicycle from the box, be careful that no items are scratching the frame. Be
careful to remove the handlebar together with the bicycle, as it is attached to the bicycle by
the brake wire.
Remove all carton and paper covering the frame and the parts.
Remove the front wheel from the box
Remove the small box containing the pedals and manuals and other items.
2. Mounting the Handle Bar
Tools needed: 5 mm Allen Key

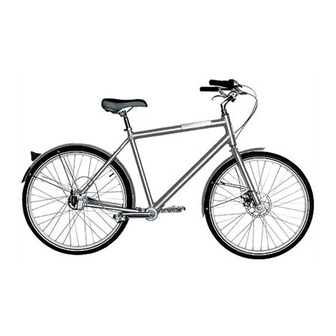

ASSEMBLY INSTRUCTIONS FOR THE AMS BIKE
TM
Place handlebar in the top tube of the frame
and tighten up.
Make sure the position of the handlebar is
correct and that the bolt is tightend safely.
1
Advertisement
Related Manuals for Biomega AMS BIKE
Summary of Contents for Biomega AMS BIKE
- Page 1 ASSEMBLY INSTRUCTIONS FOR THE AMS BIKE All of these instructions must be followed carefully before using the bicycle. Assembly manual overview: 1. Removing the bicycle from packaging Mounting the handlebar Mounting the front wheel Adjustment of the front disc brake...
- Page 2 3. Mounting the front wheel The front wheel is mounted to the frame with two 15 mm bolts Install the front wheel by pulling up from the top and guiding it into the fork dropouts. Place the “quick-release” bolt in the front hub.
- Page 3 4. Adjustment of the front disc brakes. If the front wheel does not turn without noise, then follow these instructions: CALIPER PAD ADJUSTMENT 1. Turn the front knurled wheel that is located in the center of the lever arm clockwise to move the outer pad inwards towards the rotor.
- Page 4 Mounting the seat post/saddle Slide the seat post down the seat tube. The seat post is fastened with a seat clamp, which is placed on the top of the seat tube. Tighten the clamp with an Allen Key and ensure that it is securely fastened. Once the seat post is placed ensure that the post is positioned at a neutral height to accommodate both women and men, then...
- Page 5 7. Mounting the rear fender and reflector. Fasten the fender arm and tighten up the two screws on each side of the frame. Place the reflector at the fender and tighten up the nut at the back side.
- Page 6 8. Mounting the front fender and reflector. Place the front fender and put the bolt through the hole in the front fork. Place the front reflector and tighten up the nut.
- Page 7 Secure that all bolts & nuts are securely tightened and that the bicycle is working properly. 10. Contact Should you have any questions or problems please do not hesitate to contact Biomega Philsophy Aps Skoubogade 1,1 tv DK-1158 Copenhagen K Denmark E-mail: info@biomega.dk...
