Summary of Contents for Lanzar Lanzar OPTI Drive OPTIX3B

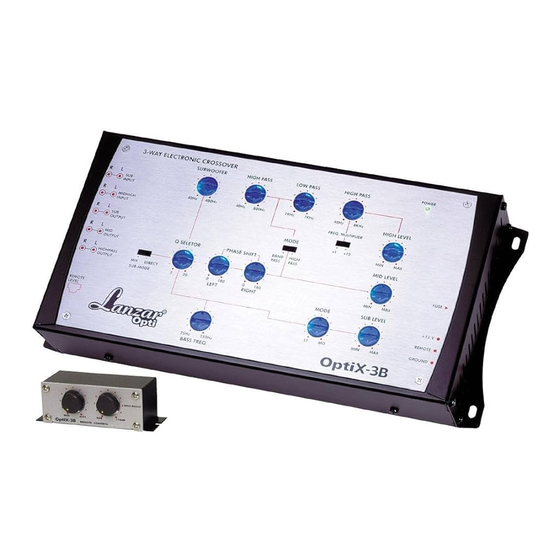

- Page 1 u s e r ’ s m a n u a l www.lanzar.com 3-Way Electronic Crossover Network OptiX-3B OptiX-3B w/Remote Bass Boost and Level Control...
- Page 2 I N T R O D U C T I O N . . . Congratulations on your purchase of a new Lanzar Opti signal processor. Opti mobile electronics are some of the most advanced car audio products available. These quality audio products are designed and engineered to afford you years of uncompromising musical service.
-
Page 3: Table Of Contents
t a b l e o f c o n t e n t s general features precautions features and specifications system wiring mounting and installation noise check and system adjustment troubleshooting... -
Page 4: General Features
g e n e r a l f e a t u r e s Blue light illuminated control panel Rotary control knobs 12dB per octave crossover slopes PWM power supply Remote bass boost (0-+18dB) and level controls Subwoofer mode switch Variable subwoofer frequency control 40-400 Hz Parametric "Q"... -
Page 5: Precautions
P r e c a u t i o n s To prevent short circuits, be sure to disconnect the negative battery ground lead before wiring the system up. When you finish the installation, be sure to make one more check to be sure everything is done correctly. Reinstate all car parts that were removed. -
Page 6: Features And Specifications
f e a t u r e s a n d s p e c i f i c a t i o n s... - Page 7 1. BASS BOOST CONTROL This control adjusts the bass boost gain (0 to +18dB). 2. BASS BOOST LEVEL CONTROL This control sets the subwoofer gain control. 3. SUBWOOFER MODE SWITCH Allows subwoofer mode channel to receive signal from either the mix of from low-pass inputs directly (when head unit has appropriate 5ch/6ch outputs).
-
Page 8: System Wiring
SUB MODE SELECTOR SWITCH VIA INPUT POSITION SOURCE DIRECT FRONT REAR FRONT REAR S y s t e m w i r i n g OUTPUT SUBWOOFER Subwoofer mode switch: allows sub-woofer mode channel to receive signal from either, the mix of from front inputs, the direct from rear inputs. -
Page 9: Mounting And Installation
Your new Opti Series Crossover comes complete with all required mounting hardware. Mark the location for the mounting screw holes by positioning the Crossover where you wish to install it and use a scribe (or one of the mounting screws) inserted in each of the mounting holes to mark the mounting surface. -
Page 10: Noise Check And System Adjustment
N o i s e c h e c k a n d s y s t e m a d j u s t m e n t NOISE CHECK Check the entire audio system for noise before permanently securing the CROSSOVER mounting 1. -
Page 11: T B O U B L E S H O O T I N G G U I D E
T B O U B L E S H O O T I N G G U I D E PROBLEM 1. There is an audible distortion at a low volume level. 2. A whining sound can be heard through the speakers when the audio system is at low volume with the engine running. - Page 12 All Lanzar Signal Processors are carefully constructed and thoroughly tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for three (3) years from the date of purchase. This warranty is limited to the original retail purchaser of the Signal Processor. Should the unit fail due to a factory defect in material or workmanship, your unit will be repaired or replaced at the sole discretion of Lanzar.
