Onkyo SKS-HT200 Service Manual

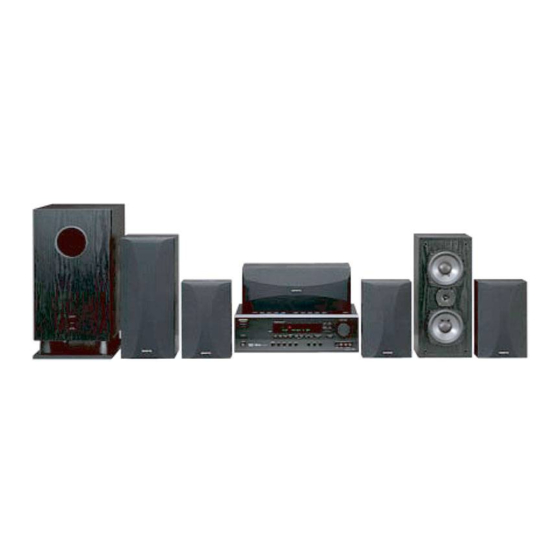

6.1ch speaker system for ht-s760 kw-200 / skf-200f / skc-200c / skm-200s/skb-200
Hide thumbs Also See for SKS-HT200:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

6.1ch SPEAKER SYSTEM for HT-S760
SKW-200 / SKF-200F / SKC-200C / SKM-200S/SKB-200
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
Schematic Diagram AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
SERVICE MANUAL
SERVICE MANUAL
SKS-HT200
MODEL
DD
120V AC, 60Hz
1
Ref. No. SS0317
ON THE
SKS-HT200
032003

Advertisement

Table of Contents
loading

Related Manuals for Onkyo SKS-HT200

Summary of Contents for Onkyo SKS-HT200

  • Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...
  • Page 2 SKS-HT200 SPECIFICATION SKW-200 Type Bass-reflex with built-in power amplifier Frequency response 27 Hz-150 Hz Output power 150 W Dynamic Input sensitivity 220 mV Input impedance 15 kΩ Woofer 8-inch cone type Power supply AC 120 V, 60 Hz Power consumption 75 W 10-13/16"...
  • Page 3 SKS-HT200 SPECIFICATION Model SKF-200F Type 2 way Bass-reflex front speaker 8 Ω Impedance Maximum input power 100 W Output sound pressure level 86 dB/W/m Frequency response 55 Hz-35,000 Hz 5-1/4-inch cone type × 2 Woofer Tweeter 1-inch balanced dome type 7-7/16"...
  • Page 4 SKW-200 EXPLODED VIEW SKW-150...

  • Page 5: Schematic Diagram

    SCHEMATIC DIAGRAM MAIN PC BOARD (LVM0199C011) CN302 C405 CN301 R403 R401 0.033uF 150K C402 C418 C419 R407 IC401-C LM324 C501 R405 C403 C401 200p 200p 4.7K C304 LM324 0.068uF C407 R406 IC1-B C408 C404 IC1-A TO RB301 0.0058uF 0.068uF R404 C305 150K 0.22uF...
  • Page 6 SKW-200 TO RB401 R525 C509 R520 CN501 100p C508 C513 C518 22u / 25 R518 R519 22u / 25 R501 R524 IC501 C512 C510 22u/25 .1uF R502 IC502-B R522 C503 D507 R505 C507 C502 2.2uF 4.7K .001uF R507 R506 2SC945 2.2uF C514 10uF R508...
  • Page 7 SKW-200 SCHEMATIC DIAGRAM MAIN PC BOARD (LVM0199C011) TO RB401 R525 R520 C509 CN501 100p CN302 C508 C405 CN301 R403 R401 0.033uF 150K C513 C518 R518 R519 22u / 25 22u / 25 C402 R501 C418 C419 R407 IC401-C LM324 R405 C501 C401 C403...
  • Page 8 SKS-HT200 Parts list Ref. No. Description Specification Part No. Packing view VWS330122-4500 Speaker cord AWG #22 L=4.5m White / Brack VWS331022-4500 Speaker cord AWG #22 L=4.5m Red / Brack VWS330922-3000 Speaker cord AWG #22 L=3.0m Green / Brack VWS330522-9000 Speaker cord AWG #22 L=9.0m...
  • Page 9 SKS-HT200 ONKYO CORPORATION Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 E-mail: onkyo@onkyousa.com HOMEPAGE http://www.onkyo.co.jp/...
