5.6 -REPLACING AND ADJUSTING THE SIDE BRUSH

Replacing
After lifting the front part of the machine, replace the side
brush by removing the brush fixing screw Fig. 2, and
removing the brush. Replace the brush and secure the new
one in place with the screw and its washer.
Adjusting
The side brush is adjusted by slackening the screws pos.1
Fig.6/A and using the slots to position the brush at the
required height.
Once you have positioned it, tighten the two screws.

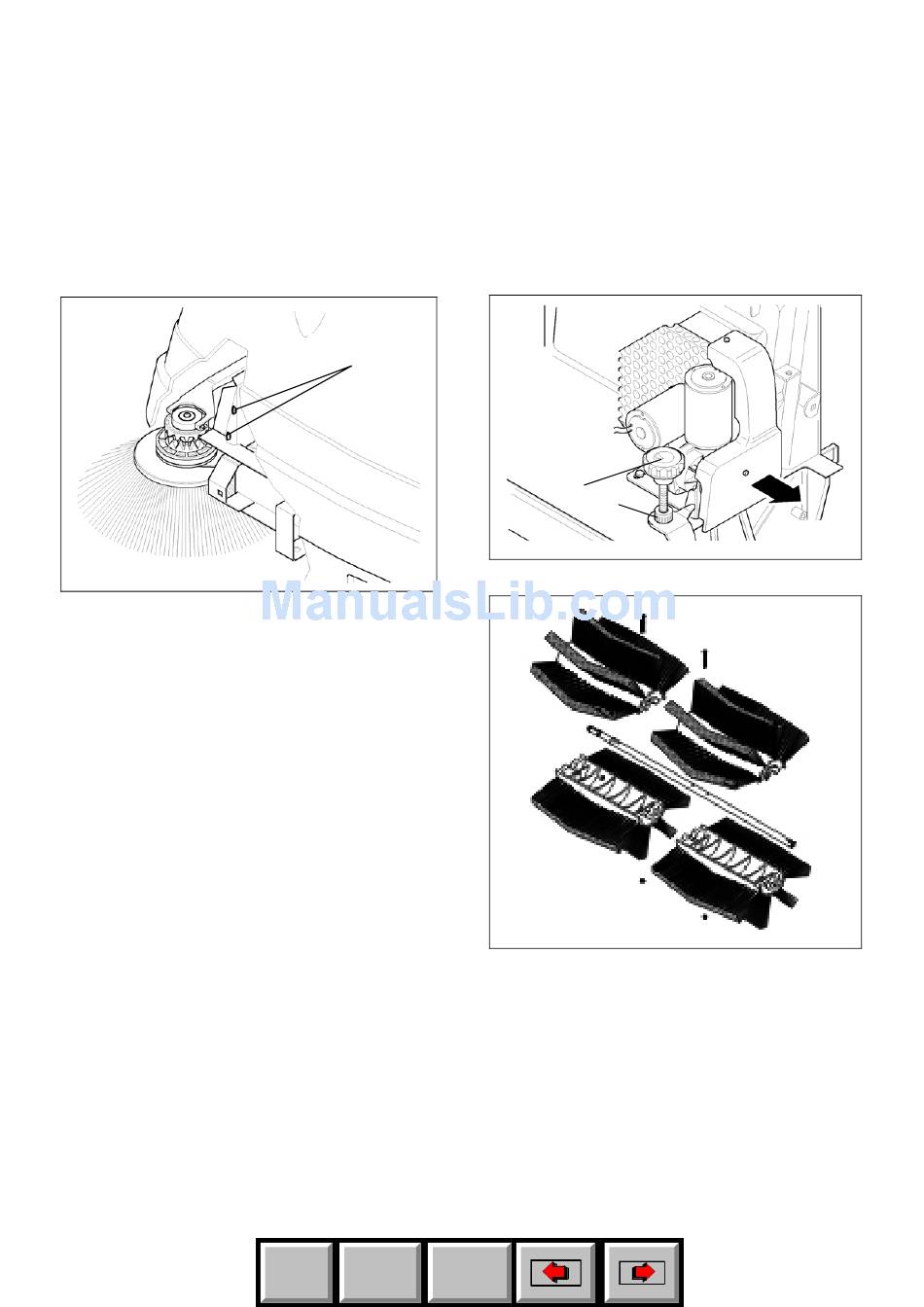

Fig. 6/A
1
- 13 -
Home Find... Go To..
5.7 -REPLACING AND ADJUSTING THE MAIN BRUSH
Replacing (Fig.6/C)
To replace the main brush, remove the front bin and slacken
the four fixing screws to remove the brush.
When mounting a new brush, pay attention to the direction in
which the brush will spin: it must direct dirt toward the centre
of the machine.
Adjusting (Fig.6/B)
To adjust the main brush, remove the top guard, slacken the
lock nut pos.1 Fig.6/B and turn adjusting handle pos.2
Fig.6/B in the direction required (counter clockwise to
increase pressure). Once the brush has been adjusted,
tighten the lock nut again.
2
1
Fig. 6/C
Fig. 6/B
