www.weslo.com
Model No. WLEX31310.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
1-866-699-3756
CALL TOLL-FREE:
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number
Decal

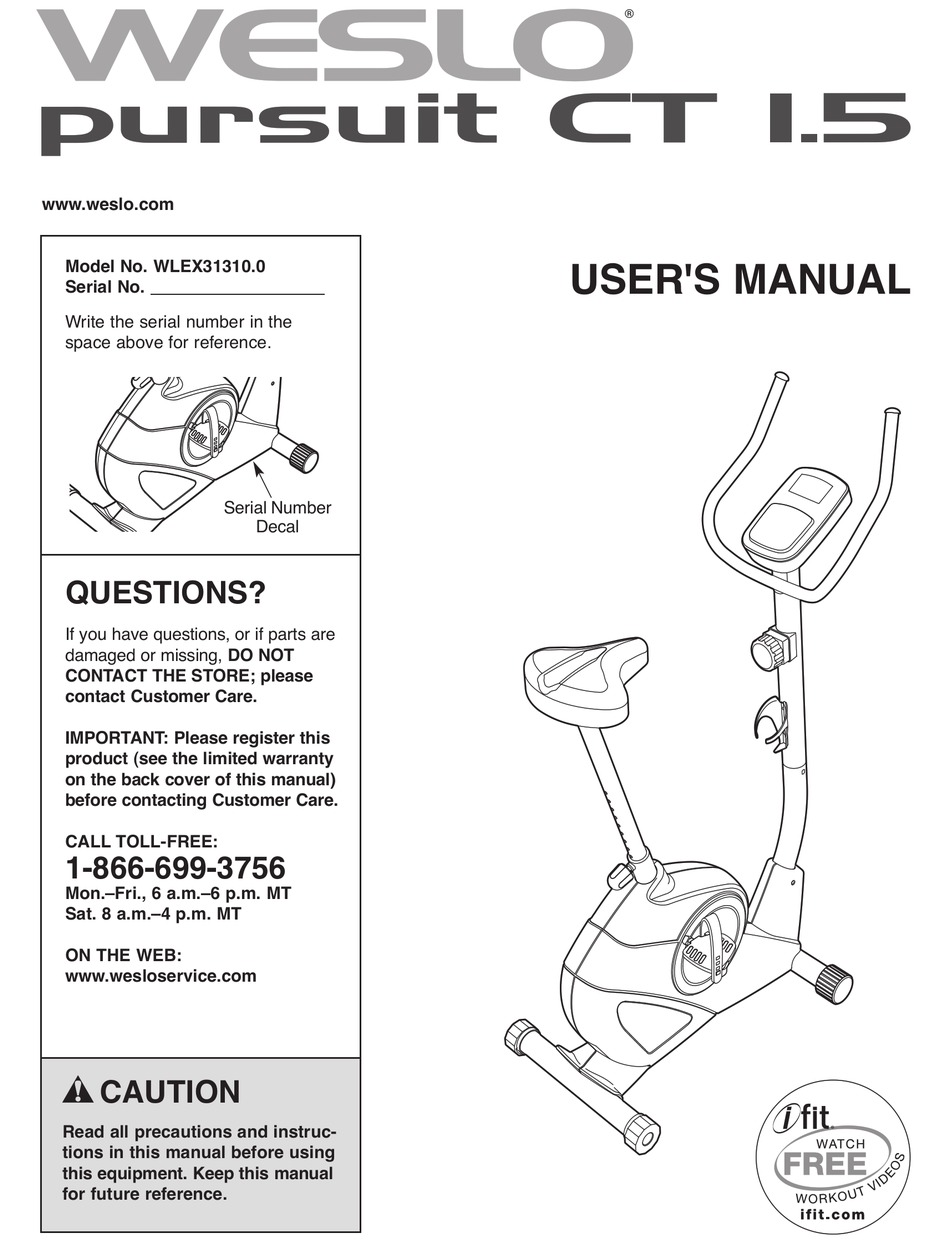

USER'S MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Weslo Pursuit CT 1.5 WLEX31310.0
Summary of Contents for Weslo Pursuit CT 1.5 WLEX31310.0
- Page 1 USER'S MANUAL Model No. WLEX31310.0 Serial No. Write the serial number in the space above for reference. Serial Number Decal QUESTIONS? If you have questions, or if parts are damaged or missing, DO NOT CONTACT THE STORE; please contact Customer Care.
-
Page 2: Table Of Contents
Apply the decal in the location shown. Note: The decal(s) may not be shown at actual size. WESLO is a registered trademark of ICON IP, Inc. -
Page 3: Important Precautions
IMPORTANT PRECAUTIONS WARNING: To reduce the risk of serious injury, read all important precautions and instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 4: Before You Begin
BEFORE YOU BEGIN Thank you for selecting the new WESLO PURSUIT after reading this manual, please see the front cover ® CT 1.5 exercise bike. Cycling is an effective exercise of this manual. To help us assist you, note the product... -
Page 5: Assembly
ASSEMBLY To hire an authorized service technician to assemble the exercise bike, call 1-800-445-2480. Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable wrench... - Page 6 To make assembly easier, read the information on page 5 before you begin. Insert the Rear Stabilizer (6) into the Frame (1). Attach the Rear Stabilizer with four M8 x 60mm Patch Screws (30). 2. See the inset drawing. Remove the screw and the cardboard tube from the Frame (1).
- Page 7 3. While a second person holds the Upright (13) near the Frame (1), connect the Extension Wire (23) to the Reed Switch Wire (39). Next, connect the Resistance Cable (19) to the Lower Resistance Cable (29) in the following way: •...
- Page 8 4. Attach the Handlebar (42) to the Upright (13) with two M8 x 65mm Bolts (49) and two M8 Locknuts (10). Attach the Water Bottle Holder (3) to the Upright (13) with two M4 x 15mm Screws (48). 5. The Console (16) requires four AA batteries (not included);...
- Page 9 6. While a second person holds the Console (16) near the Upright (13), connect the wire on the Console to the Extension Wire (23). Insert the excess wire downward into the Upright (13). Tip: Avoid pinching the wires. Attach the Console (16) to the Upright (13) with four M4 x 15mm Screws (48).
- Page 10 8. Loosen and remove the Seat Post Knob (9) from the Frame (1). Insert the Seat Post (5) into the Frame (1). Adjust the Seat Post to the desired height, and insert the Seat Post Knob (9) through the indi- cated hole in the Frame into one of the adjustment holes in the Seat Post.
-
Page 11: How To Use The Exercise Bike
HOW TO USE THE EXERCISE BIKE HOW TO ADJUST THE SEAT POST HOW TO ADJUST THE PEDALING RESISTANCE For effective exercise, the seat should be at the To increase the proper height. As you pedal, there should be a slight resistance of the bend in your knees when the pedals are in the lowest pedals, turn the... - Page 12 FEATURES OF THE CONSOLE HOW TO USE THE MANUAL MODE 1. Turn on the console. To turn on the console, press any of the buttons or begin pedaling. The entire display and the pace guide will turn on for a moment; the console will then be ready for use.
- Page 13 When you turn Note: When the batteries are replaced, it may be Indicators on the console, necessary to reselect the desired unit of measure- the scan mode ment. will be selected automatically. To reset the display, press the On/Reset button. One indicator will appear below the To pause the console, stop pedaling.
- Page 14 HOW TO USE A PACE WORKOUT During the work- out, the pace 1. Turn on the console. guide will prompt you to keep your See step 1 on page 12. pedaling speed near the target 2. Select a pace workout. pace for the current segment.
-
Page 15: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Inspect and tighten all parts of the exercise bike regu- Turn the resistance knob to the lowest setting. Then, larly. Replace any worn parts immediately. locate the Reed Switch (39). Turn the Crank (21) until a Magnet (38) is aligned with the Reed Switch. To clean the exercise bike, use a damp cloth and a Loosen, but do not remove, the M5 x 15mm Screw small amount of mild detergent. -
Page 16: Fcc Information
HOW TO ADJUST THE DRIVE BELT If you can feel the pedals slip while you are pedaling, even when the resistance is at the highest level, the drive belt may need to be adjusted. To adjust the drive belt, the pedals and the shields must be removed. Use an adjustable wrench to remove the pedals. -
Page 17: Exercise Guidelines
EXERCISE GUIDELINES WARNING: Burning Fat—To burn fat effectively, you must exer- cise at a low intensity level for a sustained period of Before beginning this time. During the first few minutes of exercise, your or any exercise program, consult your physi- body uses carbohydrate calories for energy. -
Page 18: Part List
PART LIST—Model No. WLEX31310.0 R0710A Key No. Qty. Description Key No. Qty. Description Frame 3/8" Nut Front Stabilizer U-bracket Water Bottle Holder Lower Resistance Cable Front Stabilizer Cap M8 x 60mm Patch Screw Seat Post Eyebolt Rear Stabilizer M6 Locknut Handlebar Cap M10 x 70mm Patch Screw Leveling Cap... -
Page 19: Exploded Drawing
EXPLODED DRAWING—Model No. WLEX31310.0 R0710A... -
Page 20: Ordering Replacement Parts
ORDERING REPLACEMENT PARTS To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us: • the model number and serial number of the product (see the front cover of this manual) •...
