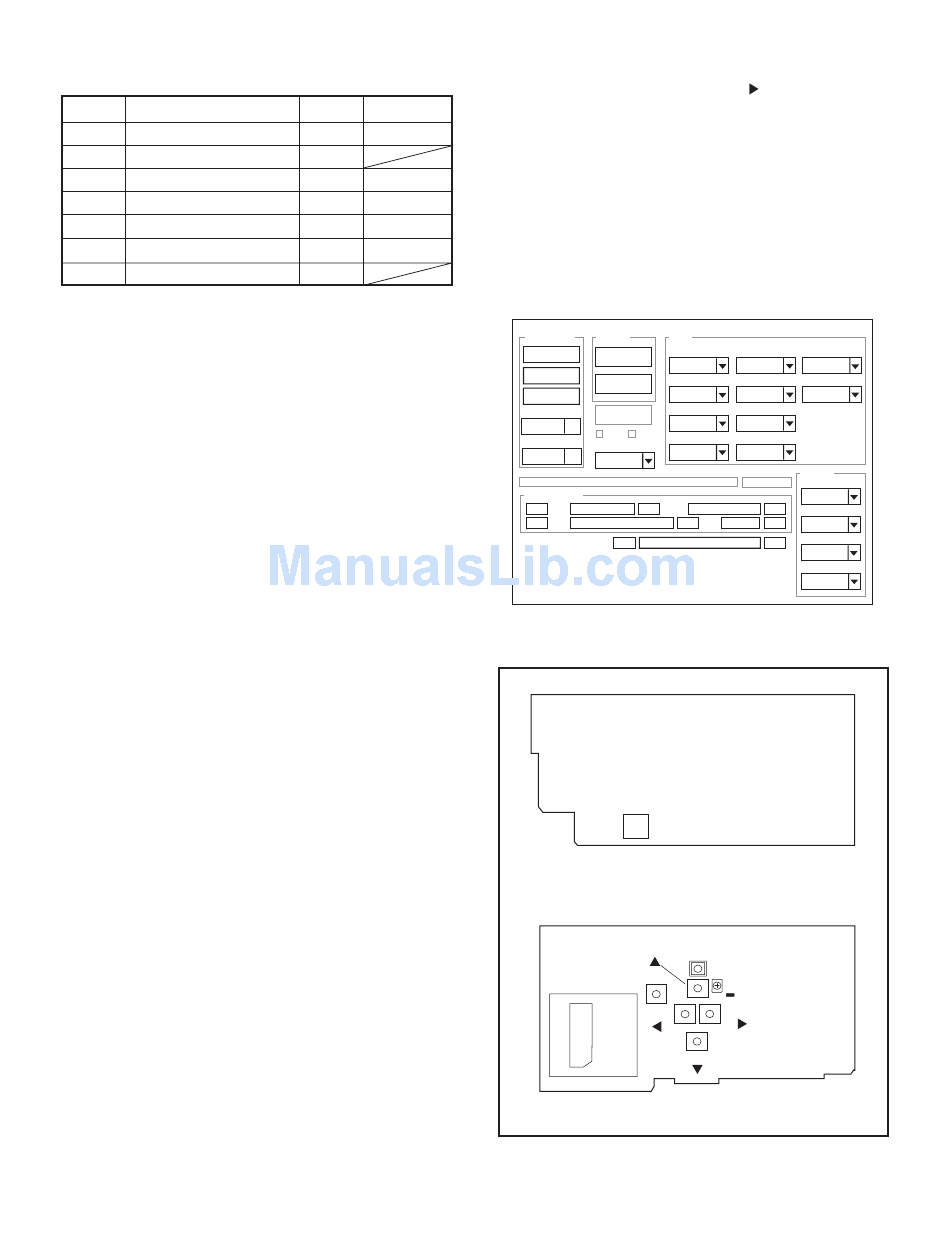

2. ADJUSTMENT

2-1. Table for Servicing Tools
Ref. No.
Name
J-1
Pattern box
J-2
Calibration software
J-3
Chroma meter
J-4
Spare lump (pattern box)
J-5
Collimator
J-6
Spare lump (collimator)
J-7
Siemens star chart
1. Calibration software
Download the calibration software from the following URL.
http://www.overseas.sanyo.com/dcamera_service/
Place the DscCalDi.exe file, camapi32.dll file and
QrCodeInfo.dll file together into a folder of your choice.
2. Pattern box
Turn on the switch and wait for 30 minutes for aging to take
place before using Color Pure. It is used after adjusting the
chroma meter (VJ8-0192) adjust color temperature to 3100
± 20 K and luminosity to 900 ± 20 cd/m
dling the lump and its circumference are high temperature
during use and after power off for a while.
2-2. Setup
1. System requirements
Windows 2000 or XP or Vista
IBM® -compatible PC with pentium processor
USB port
2. Video monitor
Connect the video output to a video monitor with an input
impedance of 75 ohms.
2-3. Adjustment Items and Order
1. Timer Quartz Adjustment
2. Lens Adjustment (Infinity)
3. Lens Adjustment (1m)
4. AWB Adjustment
5. CMOS (CCD) White Point Defect Detect Adjustment
6. CMOS (CCD) Black Point And White Point Defect Detect
Adjustment In Lighted
7. Privacy Masking Adjustment
8. Gyro Offset Adjustment
Note: If the lens, CMOS and board and changing the part, it
is necessary to adjust again. Item 1-8 adjustments should be
carried out in sequence.
Part code
Number
1
VJ8-0190
1
1
VJ8-0192
1
VJ8-0191
1
VJ8-0260
1
VJ8-0282
1
2
. Be careful of han-
-
9
2-4. Connecting the camera to the computer
1. It turns on power while pushing the
SET button of the CA-5 board.
2. Connect the camera's USB terminal(CN102 CA-2board)
to the computer's USB connector.
3. Double-click on the DscCalDi.exe.
4. L5DH2 is selected with Model Code.
5. EX (VCC-HD4600P), US (VCC-HD4600) or C (VCC-
HD4600PC) is selected with Factory Mode.
6. PAL (VCC-HD4600P, VCC-HD4600PC) or NTSC (VCC-
HD4600) is selected with Video Mode.
2-4-1. Computer screen during adjustment
Calibration
Upload
AWB
Firmware
Focus
QrCode
UV Matrix
Cal Mode
Initialize
OK
EVF
VCO
Cal Data
LCD Type
OK
USB storage
Get
VID
Set
Serial
PID
Set
Backrush pulse :
Get
2-4-2. Operation buttons
CN102
CA-2 BOARD SIDE B
S9603
S9605
SET
CN604
S9601
CA-5 BOARD SIDE B
-
button and the
LCD
R Bright
B Bright
VCOMDC
RGB Offset
Gain
VCOMPP
Tint
Phase
H AFC
Test
Setting
Language
Set
Video Mode
Set
Rev.
Set
Factory Code
Set
Model_Code
S6001
RESET
CT351
TP351
S9602
S9604
