Features

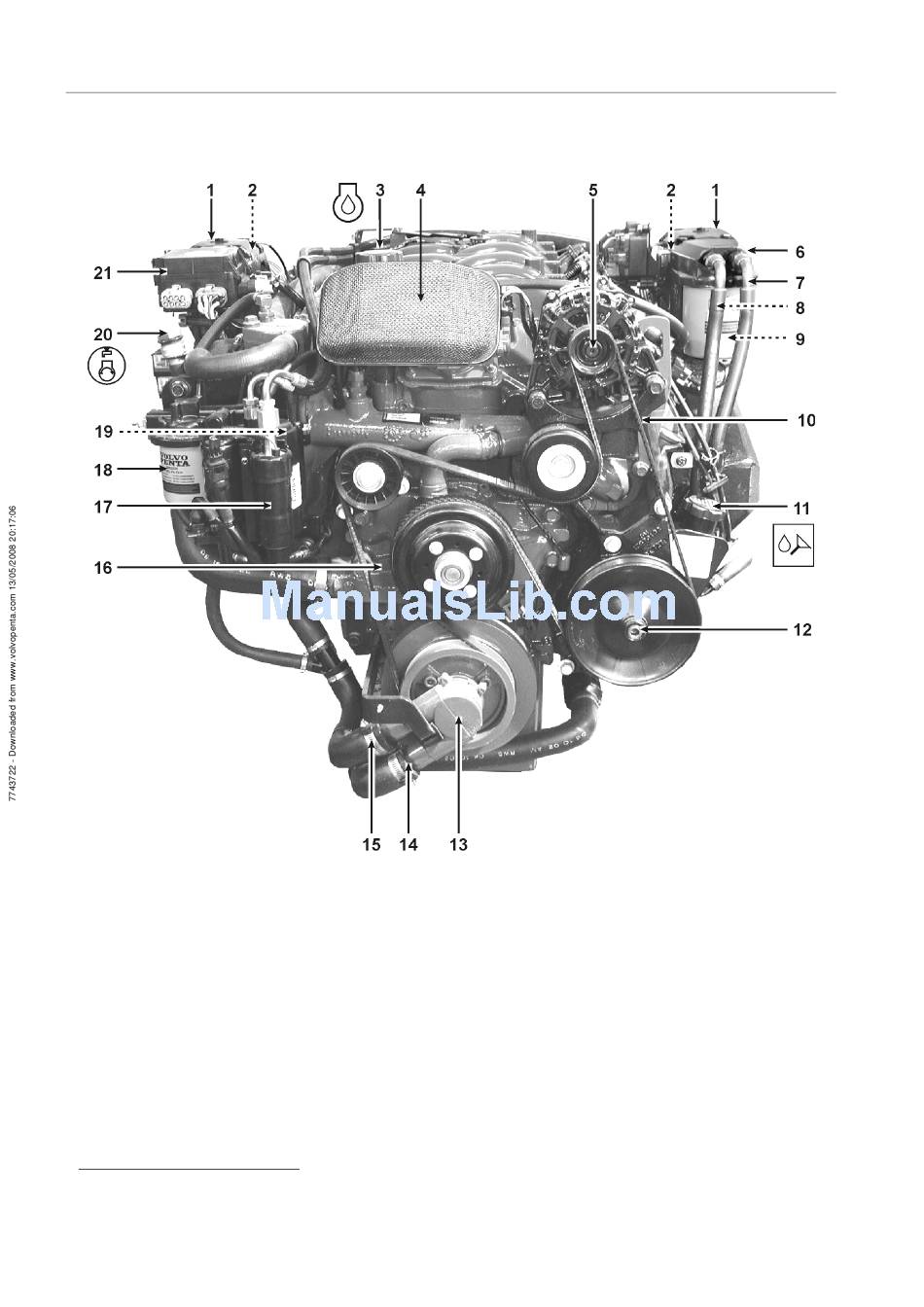

8.1Gi-F, 8.1GXi-E

1. Exhaust Riser
2. Exhaust Overheat Sensor
3. Oil Fill (Engine)
4. Flame Arrestor
5. Alternator
6. Remote Oil Filter Assembly
7. Remote Oil Filter Out
8. Remote Oil Filter In
9. Engine Oil Filter
1. The engine raw water drain plug on the 8.1 Liter engines is a Metric M14 size bolt. Do not use an inch equivalent as you may dam-
age the engine.
52
10. Serpentine Belt
11. Power Steering Fluid Fill
12. Power Steering Pump
13. Raw Water Pump
14. Raw Water Outlet
15. Raw Water Intake
16. Water Circulation Pump
17. Fuel Pump (High Pressure)
18. Fuel Filter
22892
19. Fuel Pump (Low Pressure)
20. Engine Raw Water Flush
21. Circuit Breaker and Fuses
22. Spark Plugs
23. Oil Dipstick (Engine)
24. Engine Raw Water Drain
25. Starter
26. Exhaust Manifold Water Drain
27. Exhaust Manifold
