Your Volvo Penta product consists of three components: the engine, transom shield and the sterndrive. There are
certain parts on each component that you, the owner, must take care of to make sure that your Volvo Penta
product stays in optimum running condition. The important parts of each component are shown in the illustrations
on the following "Features" pages. Explanations of these parts and systems are described below; the maintenance
procedures are found in the Maintenance section.

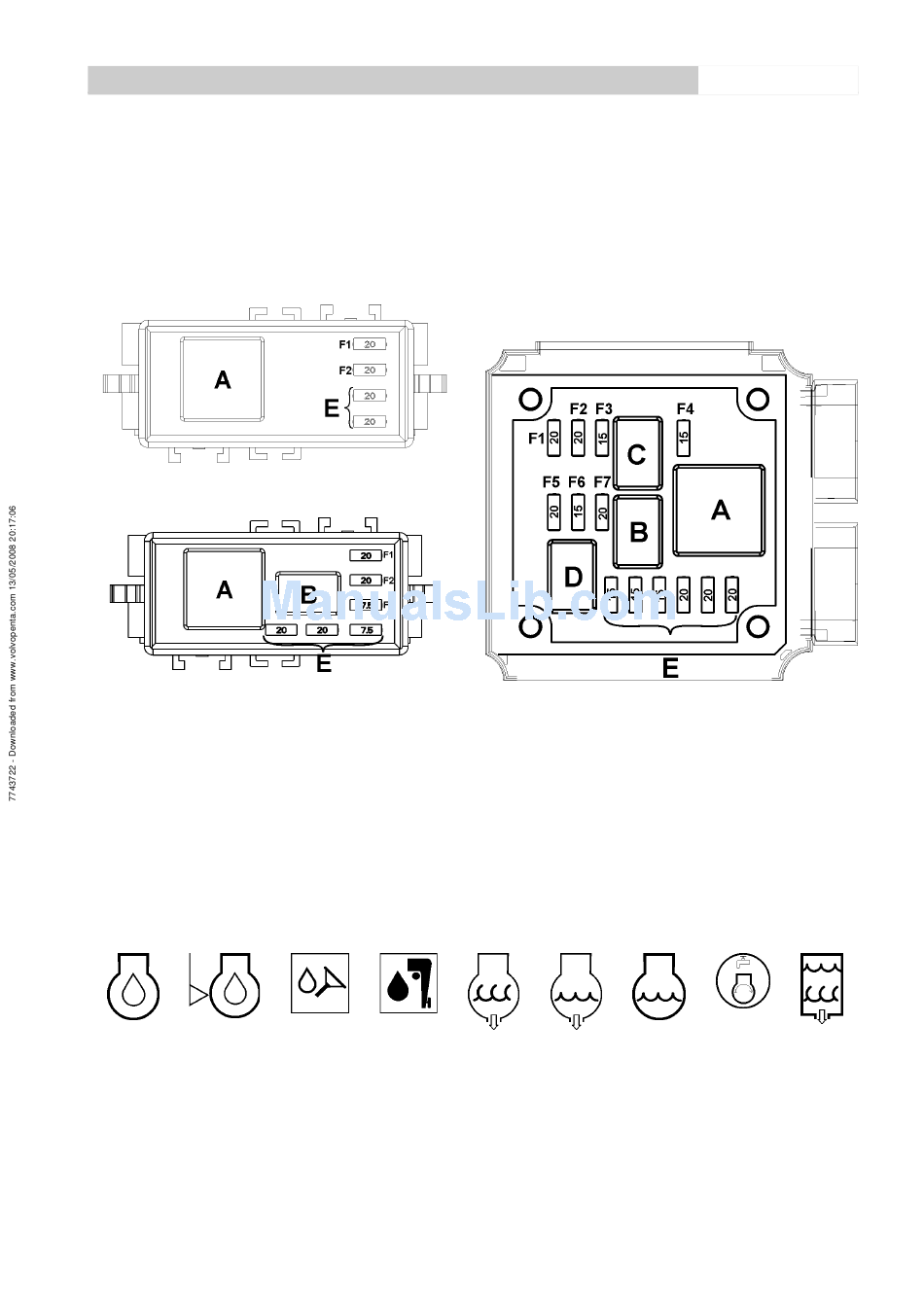

Circuit Breakers and Fuses

3.0GLP-C (Carb Engines)
22870
4.3GL-D, 5.0GL-E (Carb Engines)
22871
A Starter Relay
B Fuel Pump Relay
C Ignition Relay
D Spare Relay
E Spare Fuses (15 & 20 Amp)
F1 20 Amp Instrument Panel Accessory

Legend of Symbols Used in Engine Diagrams

1 2
22341 22874
1 Engine Oil
2 Engine Oil Level
3 Power Steering Fluid
4 Sterndrive Oil
5 Engine Raw Water Drain
VPA 7743722 English 10-2004
3 4
22343 22342
4.3GXi-E, 4.3GXi-EF, 5.0GXi-E, 5.0GXi-EF, 5.7Gi-E,
5.7Gi-EF, 5.7GXi-F, 5.7GXi-FF, 8.1Gi-E, 8.1Gi-EF,
8.1GXi-D, 8.1GXi-DF (EFI Engines)
F2 20 Amp Instrument Panel Accessory
F3 15 Amp Ignition/Fuel Fuse
F4 15 Amp Engine Control Module (ECM) Fuse
F5 20 Amp Spare Accessory Fuse
F6 15 Amp EVC Fuse
F7 7.5 Amp (Carb) or 20 Amp (EFI) Fuel Pump
Fuse
5 6
22345 22372 22873
6 Engine Coolant Drain (Closed Cooling)
7 Engine Coolant
8 Engine Flush
9 Heat Exchanger Raw Water Drain

Features

Features
22872
7 8 9
22346 22377
