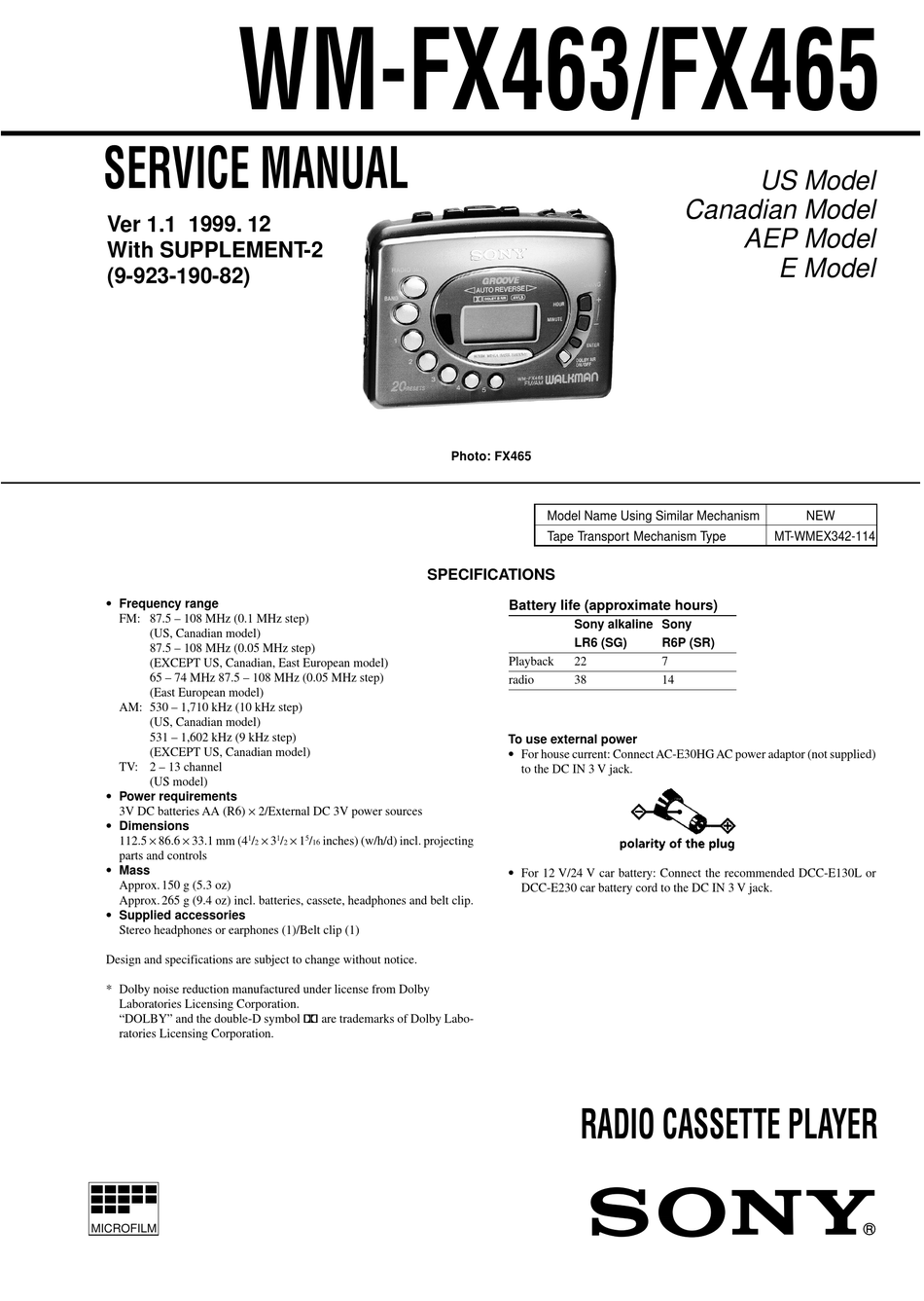

WM-FX463/FX465
SERVICE MANUAL
Ver 1.1 1999. 12
With SUPPLEMENT-2
(9-923-190-82)
• Frequency range
FM: 87.5 – 108 MHz (0.1 MHz step)
(US, Canadian model)
87.5 – 108 MHz (0.05 MHz step)
(EXCEPT US, Canadian, East European model)
65 – 74 MHz 87.5 – 108 MHz (0.05 MHz step)
(East European model)
AM: 530 – 1,710 kHz (10 kHz step)
(US, Canadian model)
531 – 1,602 kHz (9 kHz step)
(EXCEPT US, Canadian model)
TV: 2 – 13 channel
(US model)
• Power requirements
3V DC batteries AA (R6) × 2/External DC 3V power sources
• Dimensions
112.5 × 86.6 × 33.1 mm (4
× 3
1
/
2
parts and controls
• Mass
Approx. 150 g (5.3 oz)
Approx. 265 g (9.4 oz) incl. batteries, cassete, headphones and belt clip.
• Supplied accessories
Stereo headphones or earphones (1)/Belt clip (1)
Design and specifications are subject to change without notice.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol a are trademarks of Dolby Labo-
ratories Licensing Corporation.
MICROFILM

SPECIFICATIONS

× 1
1
5
/
/
inches) (w/h/d) incl. projecting
2
16
Photo: FX465
Model Name Using Similar Mechanism
Tape Transport Mechanism Type

Battery life (approximate hours)

Sony alkaline Sony
LR6 (SG)
Playback
22
radio
38

To use external power

• For house current: Connect AC-E30HG AC power adaptor (not supplied)
to the DC IN 3 V jack.
• For 12 V/24 V car battery: Connect the recommended DCC-E130L or
DCC-E230 car battery cord to the DC IN 3 V jack.
RADIO CASSETTE PLAYER
US Model
Canadian Model
AEP Model
E Model
NEW
MT-WMEX342-114
R6P (SR)
7
14

Advertisement

Table of Contents
loading

Related Manuals for Sony WM-FX463

Summary of Contents for Sony WM-FX463

  • Page 1 Tape Transport Mechanism Type MT-WMEX342-114 SPECIFICATIONS • Frequency range Battery life (approximate hours) FM: 87.5 – 108 MHz (0.1 MHz step) Sony alkaline Sony (US, Canadian model) LR6 (SG) R6P (SR) 87.5 – 108 MHz (0.05 MHz step) Playback (EXCEPT US, Canadian, East European model) 65 –...
  • Page 23 WM-FX463/FX465 US Model Canadian Model SERVICE MANUAL AEP Model E Model CORRECTION-1 Correct your service manual as shown below. : indicates corrected portion. Page INCORRECT CORRECT Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-3371-589-1 CHASSIS (COPM) ASSY...
  • Page 24 WM-FX463/FX465 US Model Canadian Model SERVICE MANUAL AEP Model E Model Ver 1.0 1998. 07 SUPPLEMENT-1 File this supplement with the service manual. Subject: Change of motor (M901) (ENG-98005) Mounting shape to the mechanism deck and to the exterior cabinet is not compatible.
  • Page 25 5E Model is the same as Canadian model which is not described in this supplement-2. Also 6E and 8E Models are the same as US model which is not de- scribed in this supplement-2. Refer to WM-FX463/FX465 original service manual (9-923-190- ) for [][] other information...
  • Page 26 1. Correction • PRINTED WIRING BOARD : Indicates corrected portion. Page INCORRECT CORRECT Location J-K, 1-2 • Abbreviation IT: Italian model – 2 –...
  • Page 27 • SCHEMATIC DIAGRAM : Indicates corrected portion. Page INCORRECT CORRECT Location C-D, 2-4 Location A-B, 8-11 Location C-E, 22-25 • Abbreviation CND: Canadian model IT: Italian model – 3 –...

  • Page 28: Exploded Views

    • EXPLODED VIEWS Page INCORRECT CORRECT (1) CASSETTE HOLDER (CF) SECTION (1) CHASSTTE HOLER (CF) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-007-112-01 LID (CF), CASSETTE (FX465) 3-007-112-01 LID (CF), CASSETTE (FX465: CND, AEP, E, IT, 5E, 9E, EE) 3-007-112-11 LID (CF), CASSETTE (FX463) 3-007-112-11 LID (CF), CASSETTE (FX463: CND, AEP, E,...
  • Page 29 2. Addition of Parts • EXPLODED VIEWS : Indicates added portion. & : Indicates cancelled portion. Page Before Change After Change Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-007-118-01 HOLDER (CF), CASSETTE 3-007-118-01 HOLDER, CASSETTE Page Before Change After Change...
  • Page 30 Page Before Change After Change Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 3-921-042-01 GEAR (REEL) 3-024-223-01 GEAR (REEL-2) 3-920-992-01 SPRING (STOP) 3-015-436-01 SPRING (STOP) 3-921-053-06 LEVER, D SELECTION 3-921-053-01 LEVER, D SELECTION X-3369-752-1 CLUTCH ASSY X-3375-837-1 CLUTCH ASSY 3-921-052-01 LEVER (A), DETECTION 3-921-052-11 LEVER (A), DETECTION...
  • Page 31 • ELECTRICAL PARTS LIST : Indicates added portion. Page Before Change After Change Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C703 1-164-473-11 CERAMIC CHIP 820PF C703 1-164-733-11 CERAMIC CHIP 820PF C716 1-102-952-00 CERAMIC CHIP 16PF 0.5PF 50V C716 1-164-237-11 CERAMIC CHIP...
  • Page 32 WM-FX463/FX465 • ACCESSORIES & PACKING MATERIALS : Indicates added portion. Page Before Change After Change Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ACCESSORIES & PACKING MATERIALS ******************************* ******************************* 1-505-521-11 HEADPHONE (MDR-023) (FX463: US)
