Land Pride Post Hole Diggers HD25 Specifications & Capacities

Hydraulic Drive
Specifications & Capacities
Post Hole Diggers Hydraulic Drive
Hydraulic Hoses
Maximum Auger RPM
Gallons Per Minute Rating
Max torque @ 2500 PSI
Weight with 6" Auger
Auger Length
Auger Flighting Thickness
Auger Pipe
Auger Teeth
Number of Teeth
Pilot
Auger Drive
Gearbox
Gearbox oil capacity & Type
Output Shaft on Gearbox
Hitch
Yoke
Boom
Auger Sizes
Hydraulic Hoses
Hydraulic
Down Pressure Kit
Storage Stand
Auger Extensions
Designs, specifications, features and information are subject to change without notice.
65

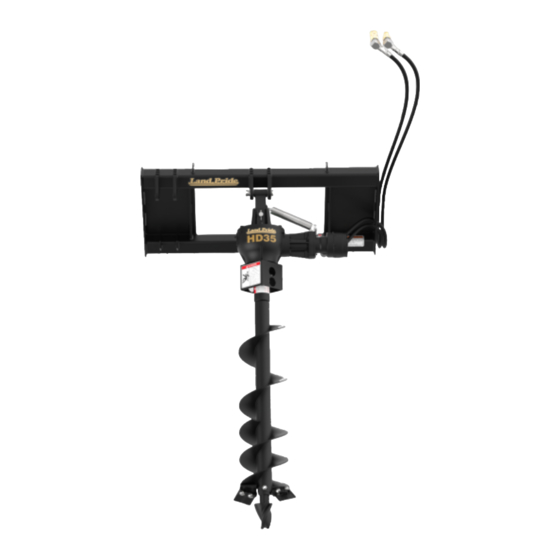

HD25 and HD35 Models
HD25
(3-Point) (Bucket Mount)
Standard
109 RPM
5 -12 GPM @ 1500 to 3000 PSI
700 ft. lbs.
235 lbs.
40 Degree Angle Installed on Flat Side
50 Degree Angle Installed on Angled Side
(6" - 2 teeth) (9" & 12" - 4 teeth) (15" - 5 teeth) (18" - 6 teeth) (24" - 8 teeth)
4.7 Pints of Gear Lube 80-90W EP
Cat I or II Bucket Mount
2 7/8" Tubing Not Applicable
Reinforced Tubing Not Applicable
Options and Accessories
Not Applicable (2)-24 ft. long hoses
Available Not Applicable
Available Not Applicable
HD25 HD35
(3- Point)
Optional Standard
105 RPM 109 RPM
10 -25 GPM @ 1500 to 3000 PSI
185 lbs. 235 lbs.
48"
1/4"
2 1/2" dia.
Forged, Individually Replaceable
Cast steel, 3 drill points
Hydraulic
3.18:1 Ratio
2" O.D. Round
Cat I or II
2 7/8" Tubing
Reinforced Tubing
6", 9", 12", 15", 18" or 24"
Not Applicable
Available
Available
7" and 14" Extensions Available
317-076S continued on next page
HD35
(Bucket Mount)
Optional
105 RPM
1605 ft. lbs.
189 lbs.
Bucket Mount
Not Applicable
Not Applicable
(2)-24 ft. long hoses
Not Applicable
Not Applicable
6/24/11
