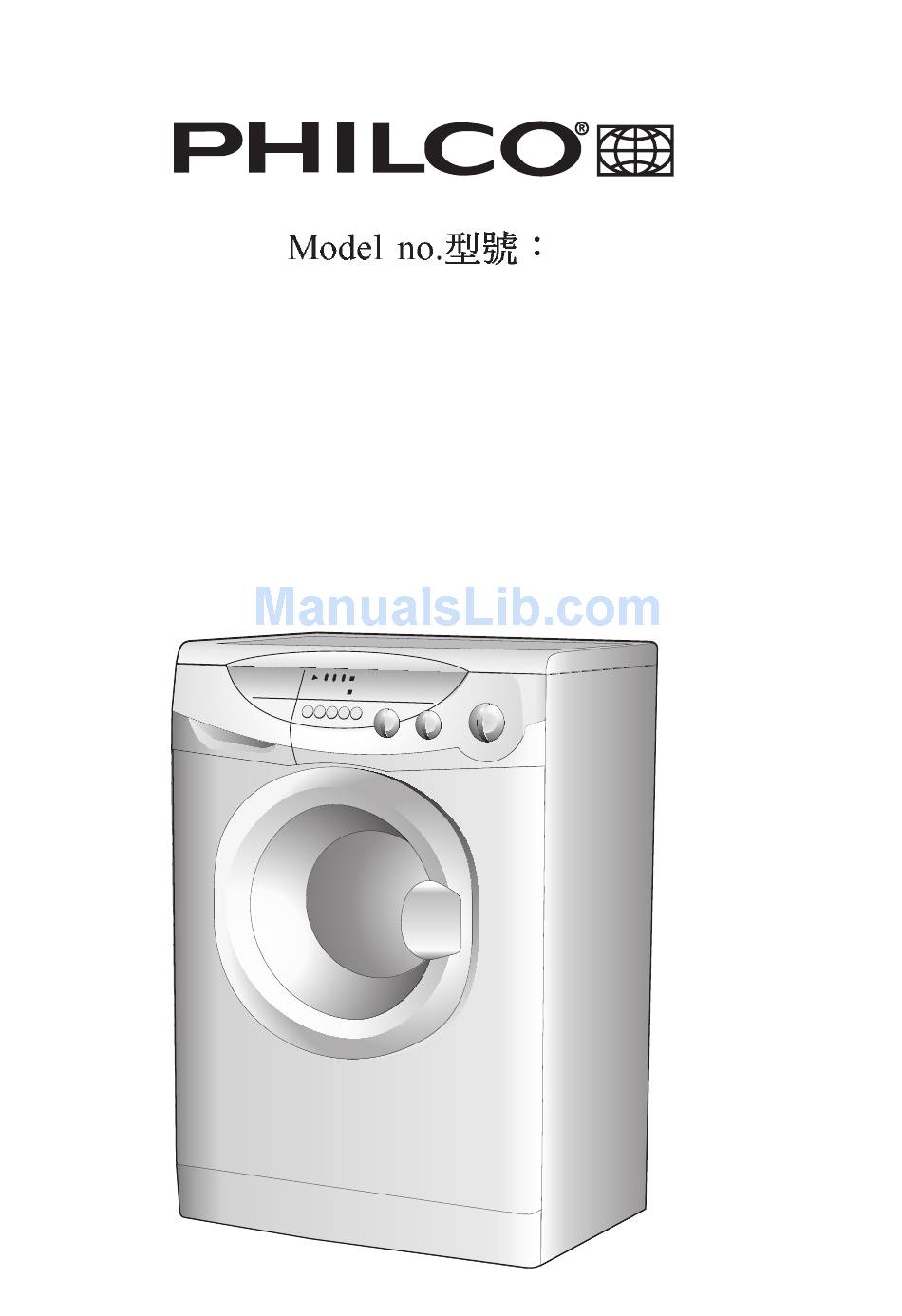

- Page 1 PWD 12SN...
-
Page 3: Introduction
Introduction Please read these instructions for use carefully and all other information enclosed with the washing machine. Keep all documentation in a safe place for future reference or for any future owners. Note: this machine is solely for domestic use. Notes on disposal All packaging material used is environmentally-friendly and recyclable. -
Page 4: Table Of Contents
Contents Page Introduction General delivery notes Safety notes Quick start Description of controls Programme Table Programme selector Detergent drawer Useful advice for the user The main wash Drying Automatic washing/drying cycle Drying cycle Cleaning and routine maintenance Investigating malfunctions Technical data Setting up + installation BEFORE SWITCHING ON THE APPLIANCE MAKE SURE IT IS CORRECTLY INSTALLED AND THAT THE TRANSIT... -
Page 5: General Delivery Notes
A) Pull out the plug B) Turn off the tap C) Philco equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person. D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet. -
Page 6: Quick Start
M) N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed. N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance. -
Page 7: Description Of Controls
Description of controls Fig. 1 C D E F G Door handle Door locked indicator light Start button Start Delay button Prewash button Extra Rinse button 1200/600 button Wash Temperature Control Knob Timer knob for drying programmes Buttons indicator light “Processing”... - Page 8 Door handle Press the finger-bar inside the door handle to open the door. IMPORTANT: A SPECIAL SAFETY DEVICE PREVENTS THE DOOR FROM OPENING AT THE END OF THE WASH/SPIN CYCLE. AT THE END OF THE SPIN PHASE WAIT UP TO 2 MINUTES BEFORE OPENING THE DOOR.
- Page 9 The option buttons should be selected before pressing the "Start/Pause" button. START DELAY BUTTON Appliance start time can be set with this button, delaying the star by 3, 6 or 9 hours. Proceed as follow to set a delayed start: Select a programme (“STOP”...
- Page 10 1200/600 button The machine gradually increases the final spin speed to the maximum possible speed. The button reduces spin speed to 600 r.p.m. Note: This function is not available when the automatic washing/drying cycle is selected. Note: this model is fitted with an electronic device that checks the load is balanced correctly.
- Page 11 DRYING TIME SELECTOR KNOB Rotates in both directions This knob sets a programme or a drying time up to a max. 120 minutes with a cool down final phase of 10 minutes. If the drying time is selected before or during the wash cycle the machine will automatically commence the drying programme.
- Page 12 Automatic Programmes: By selecting one of these 3 automatic programmes, the washer- dryer will calculate the time needed for drying and the residual dampness required, according to the load and drying type and the residual dampness required, according to the load and drying type selected.
- Page 13 TIME TO END indicator light In order to manage your time better, this washing machine features an indicator light system that keeps you constantly informed on the remaining cycle time. Indicator light START: Remaining time above 60 minutes. Indicator light 60: Remaining time less than 60 minutes.
-
Page 14: Programme Table
TABLE OF PROGRAMMES PROGRAMMES TEMP. WEIGHT CHARGE PROGRAM FOR SELECTOR ON: °C DETERGENT Resistant fabrics Up to: 90° Cotton, linen Cotton, mixed Up to: 60° resistant Up to: 40° Cotton Resistant fabrics Up to: 40° Mixed fabrics and Up to: 50° synthetics Mixed, resistant Up to: 40°... - Page 15 Please read these notes When washing heavily soiled laundry it is recommended the load is reduced to 3 kg maximum. * Programme also recommended for low temperature wash (below the indicated Max. temperature). Programmes according to CENELEC EN 60456. Only with the Prewash button selected. ( Programmes with Prewash button available) The variable temperature selector allows a reduction in the wash temperature in each programme.
-
Page 16: Programme Selector
Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programmes). RESISTANTS FABRICS The programmes have been designed for a maximum wash and the rinses, with spin intervals, ensure perfect rinsing. - Page 17 DRAIN ONLY This programme drains out the water. COTTON DRYING Drying for cotton, terry towelling, linen, hemp fabrics, etc... SYNTHETICS DRYING Drying for Mixed fabrics (synthetics/cotton), synthetic fabrics. WOOLMARK PROGRAMME A programme dedicated to washing fabrics labelled with the woolmark . The cycle comprises of alternate periods of activity and pauses.
- Page 18 DAILY WASH 40°C – FAST PROGRAMMES By maintaining exceptional washing performance, these programmes allow you to know in advance the necessary time for your everyday laundry. In fact, this washing machine is equipped wit 2 daily rapid programmes at 40°C, that were just studied for lightly soiled fabrics and medium or little load.
-
Page 19: Detergent Drawer
Detergent drawer The detergent drawer is split into 3 compartments: - the compartment labelled "I" is for prewash detergent; - the compartment labelled " " is for special additives, fabric softeners, fragrances, starch, brighteners etc; - the compartment labelled "II" is for main wash detergent. -
Page 20: Useful Advice For The User
Useful advice for users Tips on using your domestic appliance in the most environmentally-friendly and economical Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size. -
Page 21: The Main Wash
Main wash Sorting the laundry - It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. - Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry... -
Page 22: Selecting The Wash Programme
The correct way to wash Preparing the laundry A) Select the laundry. Loading the laundry B) Open the porthole. C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock. Putting detergent in machine D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer’s... -
Page 23: Drying
DRYING DON’T DRY GARMENTS MADE FROM FOAM RUBBER OR FLAMMABLE MATERIALS. IMPORTANT: THIS DRYER CAN ONLY BE USED FOR LAUNDRY WHICH HAS BEEN WASHED AND SPIN DRIED. WARNING: Indications given are general, therefore some practice is needed for the best drying results. We recommend setting a lower drying time than indicated, when first using, so as to establish the degree of dryness required. -
Page 24: Automatic Washing/Drying Cycle
Automatic washing/drying Warning: only a maximum 2,5 kg of dry laundry can be loaded. Refer to the list of washing programmes according to fabrics to be washed (e.g. very dirty cotton) and without pressing Start button, prepare wash as described: Selecting the wash programme Refer to the programme guide or the programme descriptions on the machine to select the most suitable programme. -
Page 25: Drying Cycle
Drying cycle The correct way to dry: - Open door. - Fill with up to 2,5 kg - in case of large items (e.g. sheets) or very absorbent items (e.g. towels or jeans), it is a good idea to reduce the load. - Close door. -
Page 26: Cleaning And Routine Maintenance
Cleaning and routine maintenance Do not use alcohol-based scourers and /or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: – Cleaning the drawer compartments. –... - Page 27 Transporting storing the appliance for long periods when appliance is not in use If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from all hoses. Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.
-
Page 28: Investigating Malfunctions
Investigating malfunctions What might be the cause of… Defects you can remedy yourself MALFUNCTION CAUSE REMEDY 1. Does not work on any Plug not in socket. Plug it in. programme Not switched on. Switch on. Power failure. Check. Fuse blown. Check. - Page 29 Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
-
Page 30: Technical Data
Fig. 2 Technical data Max. load of dry laundry for washing 5 kg Max. load of dry laundry for drying 2,5 kg Water pressure 0,05 ÷ 0,8 MPa Supply voltage 220 v Spin speed 1200 r.p.m. Measurements Width 60 cm Depth 44 cm Height... -
Page 31: Setting Up + Installation
Installation After removing the machine from the packaging, proceed A C D as follows: On the back of the machine 1) Unscrew the centre brace A, the two side screws C and remove the transverse bracket D and the relevant plastic spacer. -
Page 32: Water Supply
Water supply The machine has an inlet hose with 3/4» threaded ferrules fitted to the ends to attach between the threaded connector on the appliance and the cold water supply. The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. - Page 33 The socket in your home and the plug on the appliance must be of the same type. It is generally not advisable to use multiple adapters and/or extension leads. All Philco washing machines comply with the safety requirements laid down by the Quality Trademark Institute.
