Summary of Contents for Electra Light Beam 300

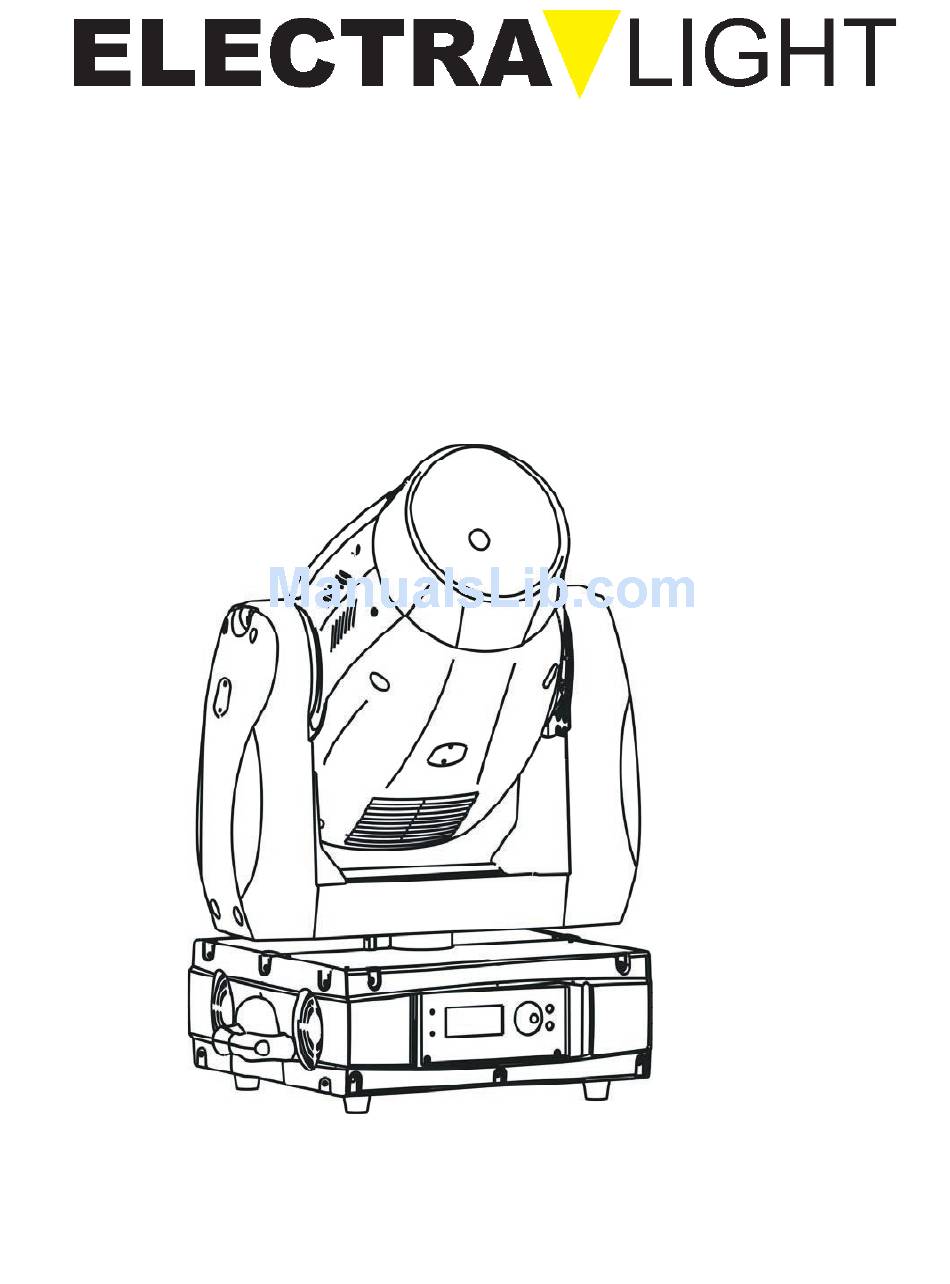

- Page 1 USER MANUAL Beam 300 Beam 700...
-
Page 2: User Manual - Beam 300 / Beam
USER MANUAL - BEAM 300 / BEAM 700... - Page 3 USER MANUAL - BEAM 300 / BEAM 700 CONTENTS 1 . S a f e t y I n s t r u c t i o n … … … … … … … … … … … … … … … . . . … . … … … … … … … 0 1 2 .
-
Page 4: General Guideline
USER MANUAL - BEAM 300 / BEAM 700 Thank you for purchasing our product SAFETY INSTRUCTION For your own safety, please read this user manual carefully before installing the device. Caution! Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock... - Page 5 USER MANUAL - BEAM 300 / BEAM 700 operating. -For protection from electronic shock, the fixture must be earthed! -Install a suitable plug on a power cord, install overload devices. The earth has to be connected! Prevent you and the safety of others by ultraviolet radiation and lamp explosion.
- Page 6 USER MANUAL - BEAM 300 / BEAM 700 -Rotating Gobo Wheel: 6 replaceable colors plus white, with shaking function and random position function available -Prism: 3-facet prism, forward and reverse rotation available and reposition function -Strobe: variable strobing 10 flash per sec, inside strobe macro-function...
-
Page 7: Connection Of Fixture
USER MANUAL - BEAM 300 / BEAM 700 Installing or replacing the lamp CAUTION! Be careful with your operations. With a dangerous voltage will suffer burn, caused fire! -Please notice that the lamp is not a hot-restrict type, and wait approximately 15 minutes after having turned off the lamp before you can turn it back on again. -
Page 8: Control Mode
USER MANUAL - BEAM 300 / BEAM 700 -There should be a terminator on the last unit of DMX Chain. Connection to the Mains Before use this fixture safely, please install a suitable plug on the power cord, and make sure the fixture is appropriately earthed. - Page 9 USER MANUAL - BEAM 300 / BEAM 700 After entering above Menu, please button ENTER to enter , turn the Rotating Wheel to make specific Selections, and press button Enter to confirm, or button ESC to exit. This menu is to modify running mode or operation status of this fixture.
- Page 10 USER MANUAL - BEAM 300 / BEAM 700 ENTER After entering above Menu, please button to enter , turn the Rotating Wheel to make specific Selections, and press button Enter to confirm, or button to exit. -Use this option in order to switch On/Off the lamp manually.
- Page 11 USER MANUAL - BEAM 300 / BEAM 700 ENTER -Change the value from 0-255 via the Rotating Wheel to select the effect; press , reserve the value (After exit the menu, all the DMX value will be 0); When there is DMX signal, the manual mode always has the priority, When exit the manual mode, the fixture will be back to the DMX value.
- Page 12 USER MANUAL - BEAM 300 / BEAM 700 16CH BEAM300 DMX PROTOCOLS CHANNEL DMX VALUE FUNCTION REMARK 112--127 Color 8 Color wheel change colors 128--189 clockwise from fast to slow CH4--COLOR WHEEL 190--193 Stop Color wheel change colors 194--255 anti-clockwise from slow to fast...
- Page 13 USER MANUAL - BEAM 300 / BEAM 700 16CH BEAM300 DMX PROTOCOLS CHANNEL DMX VALUE FUNCTION REMARK 8--63 Strobe from slow to fast 64--71 Shutter open 72--127 Strobe fade in from fast to slow 128--135 Shutter open CH14--SHUT Strobe fade out from slow to...
- Page 14 USER MANUAL - BEAM 300 / BEAM 700 24CH BEAM300 DMX PROTOCOLS CHANNEL DMX VALUE FUNCTION REMARK 98--111 Color 7 112--127 Color8 Color wheel rotating clockwise from 128--189 CH6--COLOR WHEEL fast to slow 190--193 Stop Color wheel rotating anti-clockwise 194--255...
- Page 15 USER MANUAL - BEAM 300 / BEAM 700 24CH BEAM300 DMX PROTOCOLS CHANNEL DMX VALUE FUNCTION REMARK 179--185 MACRO26 186--192 MACRO27 193--199 MACRO28 200--206 MACRO29 207--213 MACRO30 CH12--MACRO 214--220 MACRO31 221--227 MACRO32 228--234 MACRO33 235--241 MACRO34 242--248 MACRO35 249--255 MACRO36...
- Page 16 USER MANUAL - BEAM 300 / BEAM 700 24CH BEAM300 DMX PROTOCOLS CHANNEL DMX VALUE FUNCTION REMARK 128--129 Shutter open CH18--PRISM RT Prism anti-clockwise from slow to 130--255 fast CH19--FROST 0--255 0-100% frost 0--1 Shutter close 2--7 Shutter open 8--63...
-
Page 17: Maintenance And Cleaning
USER MANUAL - BEAM 300 / BEAM 700 CAUTION! Use 2 appropriate clamps to hang the fixture on the truss Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure. -
Page 18: Wiring Diagram
USER MANUAL - BEAM 300 / BEAM 700 The specification (include the current and the voltage) of the fuse must be the same as the original one. Notice:BEFORE REPLACING, MAKE SURE THE PLUG IS PULLING OUT TO AVOID THE RISK... - Page 19 USER MANUAL - BEAM 300 / BEAM 700 Beam 300/Beam 700 6 ROUTES DRIVER A BOARD WIRING DIAGRAM + 24V L6219 L6219 L6219 L6219 L6219 L6219 DATA FUSE2 /5A DATA1 +24V Beam 300/Beam 700 6 ROUTES DRIVER B BOARD WIRING DIAGRAM...
