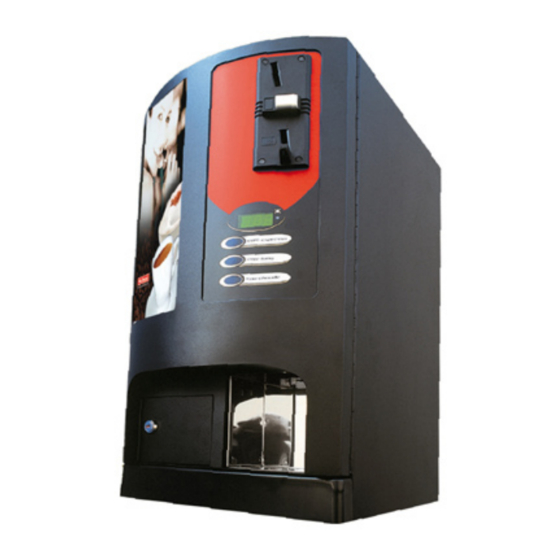

TECHNICAL CHARACTERISTICS Dimensions: Height 66.5 cm Width 35 cm Depth 41 cm Weight: 25 Kg Voltage supply: 230 Vac. 50 Hz or 120 Vac. 60Hz on request Absorbed power: 1,6 KW Selections: 8 selections. System of payment: predisposed for 12V Parallel coin mechanism Pag.
QUICK FUNCTIONS To enter, keep pressed the button “espresso short” at the switching-on. On display you will see “QUICK MENU ” Pushing the relative button, you will execute these following functions: Button Function boiler refilling: some water will be supplied to fill up the hydraulic system and the boiler.
INSTALLATION Before installing the machine, read carefully this manual. Install the machine in a dry and hygienic place. ELECTRIC CONNECTION Before connecting the machine to an electric plug, please follow these precau- tions: The main supply must correspond to the power requirements of the machine (1600W).
Page 5
It is possible to eliminate, to modify or to insert movements or to change its regu- lations where possible, for example the dosing of the products. · to move the selection cursor movement use “up” and “down” · to insert a new movement in the selected position press" +" ·...
To modify the parameters of the code drink, press Enter. A sequence of numbers will be visualized each of which corresponds to a move- ment of the machine. 01-03-P1-MS GRINDER As for the drinks, the cursor points out the code movement, therefore to move it use the keys “up”...
Page 7
Electrical OUTPUT N° description Espresso electro-valve Not used Hot water electro-valve Espresso unit motor Coffee releaser electro-magnet Grinder motor Pump Not used Not used Not used To choose the output, push + or -, to supply it, press Enter. To exit from this menu, press “esc”. Pag.
Page 8
A sequence of numbers will be visualized that correspond to the doses of the se- lection, the line price (P) and the menu of the name of the drink (MS). 03-P1-MS ESPRESSO As in precedence, the cursor points out the dosing code selected, therefore to move it use the keys “up”...
OPTIONS: LEVEL 2 (manager- technician) After having inserted the correct password, that it initially is" ask 00070", you will enter in the following menu: MODIFY PASSWORD LEVEL 1: Insert the new password and press Enter to confirm. MODIFY PASSWORD LEVEL 2: Insert the new password and press Enter to confirm.
Page 10
COUNTERS & AMOUNTS In this menu it is possible to see the counters of the various selections and eventu- ally to reset them. Press Enter to enter the menu that is composed in the following parameters: TOTAL COUNTERS&AMOUNTS total in normal working of counters and amounts (Pcs.) from the last zero resetting.
SET TEMPERATURE The followings programs compose this menu: SET BOILER TEMPERATURE Set-up of the boiler temperature. TIME OVERHEATING BOILER After this time of “machine stopped” the boiler is overheated. SET OVERHEATING BOILER Value of overheating of the boiler (max. 5°C). TIME FILLING UP BOILER Every “minute set”...
MAIN MENU To enter this menu, keep pressed the button “long espresso” at the switching on. The display will show “payment system” which is the first of the following sub- menus: PAYMENT SYSTEM Setting of the system of payment and its options. SET TEMPERATURE Setting of temperatures and other functions on the boilers.
