Summary of Contents for La Pavoni P180

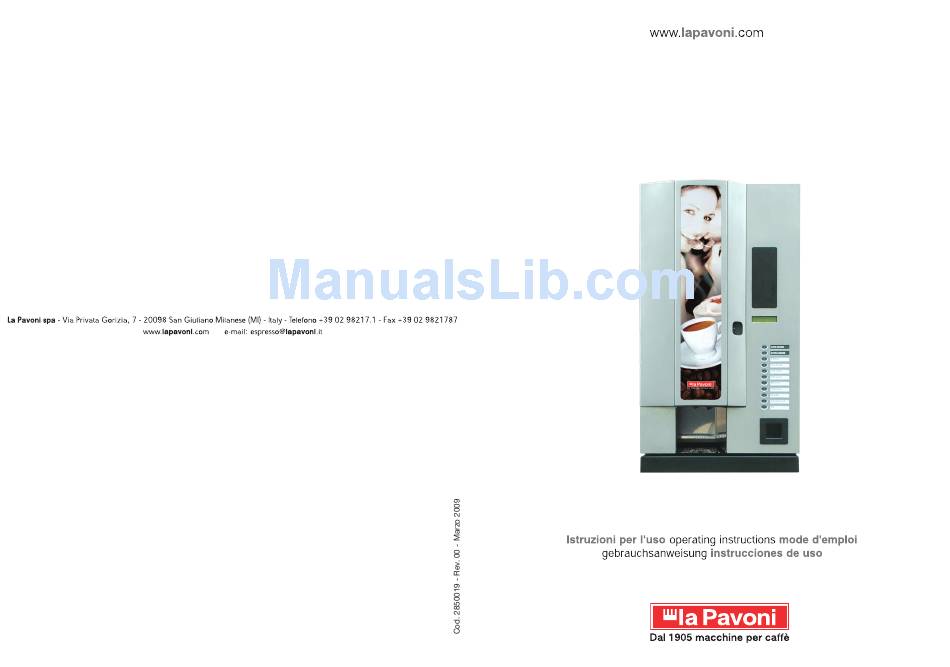

- Page 1 P180 ®...
-
Page 2: Technical Features
TECHNICAL FEATURES Dimensions: Height 75 cm Width 41cm Depth 47cm Weight: 43 Kg Voltage supply: 230 Vac. 50 Hz or 120 Vac. 60Hz on request Absorbed power: 1,7 KW Selections: 9 selections.with 2 sugar sekections Payment systems options: 12VAC or 24VAC coin acceptors Executive / MDB (optional kit) Pag. - Page 3 GRINDER You can adjust the quantity of ground coffee through a screw (2); the more you unscrew it, the more the quantity increases. If you want to adjust the grinding degree, first you have to push the catch (6), then you have to screw clockwise the grind-stone holder (1) for a finer grinding, while counterclockwise for a thicker one.
-
Page 4: Installation
INSTALLATION Before installing the machine, read carefully the manual. The installation site must be level and dry. ELECTRIC CONNECTION Before connecting the machine to an electric plug, please follow these precau- tions: The main supply must be suitable for the machine power requirements (1600W). -
Page 5: Hydraulic Diagram
HYDRAULIC DIAGRAM Pag. 28 HYDRAULIC CONNECTION IMPORTANT: THE MANUFACTURER RECOMMENDS THE INSTALLATION OF A DESCALING FILTER, THEREFORE HE WILL NOT ACCEPT RESPONSI- BILITY FOR ANY DAMAGE CAUSED BY SCALE. The machine can be installed as follows: Table top installation: Connect the mains pipe to the in-let electrovalve. Check the pressure by the manometer, if it is over 1 bar, adjust it with the inside reducer. - Page 6 LOADING PRODUCTS: fill the canisters with the products. CUPS: open the cover and insert the cups in the two columns (see picture). STIRRERS: pull the stirrer’s container, insert them and push the container in its position (see picture). STIRRER’S CONTAINER PROGRAMMING BUTTONS Pag.
-
Page 7: Electric Diagram
ELECTRIC DIAGRAM WIRES’ COLOR LEGEND 00 Black 11 Brown 22 Red 33 Orange 44 Yellow 55 Green Pag. 26 “PROG” BUTTON “QUICK” BUTTON Blue Violet Grey White Pink Light blue KEYBOARD CUPS RELEASING MOTOR CUP’S RELEASING MICROSWITCH Pag. 7... -
Page 8: Troubleshooting Guide
SWITCHING ON When you switch on the machine, first the software version message will appear on the display for a short time, and then the boiler heating will be shown by the message "HEATING". The message ". ….INSERT THE CREDIT AND SELECT YOUR DRINK…”... -
Page 9: Quick Functions
QUICK FUNCTIONS In this menu, it is possible to perform some of the most useful functions by the operator To enter this menu, press the button “QUICK MENU” of the keyboard . You will see “QUICK MENU ” on display. Pushing the appropriate number, you will execute the following functions: 1. -
Page 10: Set Drinks
SET DRINKS After you have entered the menu, you will see the drinks codes sequence. 03-04-05-0 Sel.3 The flashing cursor points out the selected drink code. If you want to move it, use either the button “+” for going on or the button “-” for going back. While you move the cursor, the name of the selection and the drink code will be visualized. -
Page 11: Set Prices
You can eliminate, modify or insert operations or change their values where it’s possible. Press “+” or “-” to move the selection cursor Press “+” or “-” to insert a new operation in the selected position Press “1” to eliminate the selected operation Press “3”... - Page 12 COUNTERS & AMOUNTS In this menu you can read the counters of the various selections and if you like, you can reset them. Press E to enter the menu that has the following parameters: TOTAL COUNTERS&AMOUNTS In standard mode the first number indicates the total counter while the sec- ond one the total amount from the last zero resetting.
- Page 13 Electrical OUTPUT N° description Cup releasing motor + cup arm and stirrers solenoid Grinder motor Coffee releaser solenoid Espresso unit motor ETV espresso Pump ETV / whipper sol. 1/2 (milk / chocolate) Powder motor sol.1 (milk) Sugar motor Powder motor sol. 2 (chocolate) ETV / whipper sol.
-
Page 14: Main Menu
MAIN MENU You can enter this menu pressing PROG button for 5 seconds. The menu has the following parameters: PAYMENT SYSTEM Setting the payment system and its options. SET TEMPERATURE Setting temperatures and other boilers functions OPTIONS: INSERT PASSWORD You can enter the options menu with 2 programming levels: operator and technician or manager. -
Page 15: Payment System
OPTIONS: LEVEL 2 (manager- technician) After you have inserted the correct password, which initially is “222”, the follow- ing menu will appear: MODIFY PASSWORD LEVEL 1: Insert the new password and press E to con- firm. MODIFY PASSWORD LEVEL 2: Insert the new password and press E to con- firm. -
Page 16: Set Temperature
SET TEMPERATURE This menu has the following parameters: SET BOILER TEMPERATURE Setting the boiler temperature. TIME OVERHEATING BOILER If the machine hasn’t worked for a long time, the boiler will overheat. SET OVERHEATING BOILER Boiler overheating value (max. 5°C). TIME FILLING UP BOILER The pump refills the boiler to keep the maximum level at the set time SET FILLING UP BOILER Boiler refilling time.
