Summary of Contents for Teac CTM6828S
-

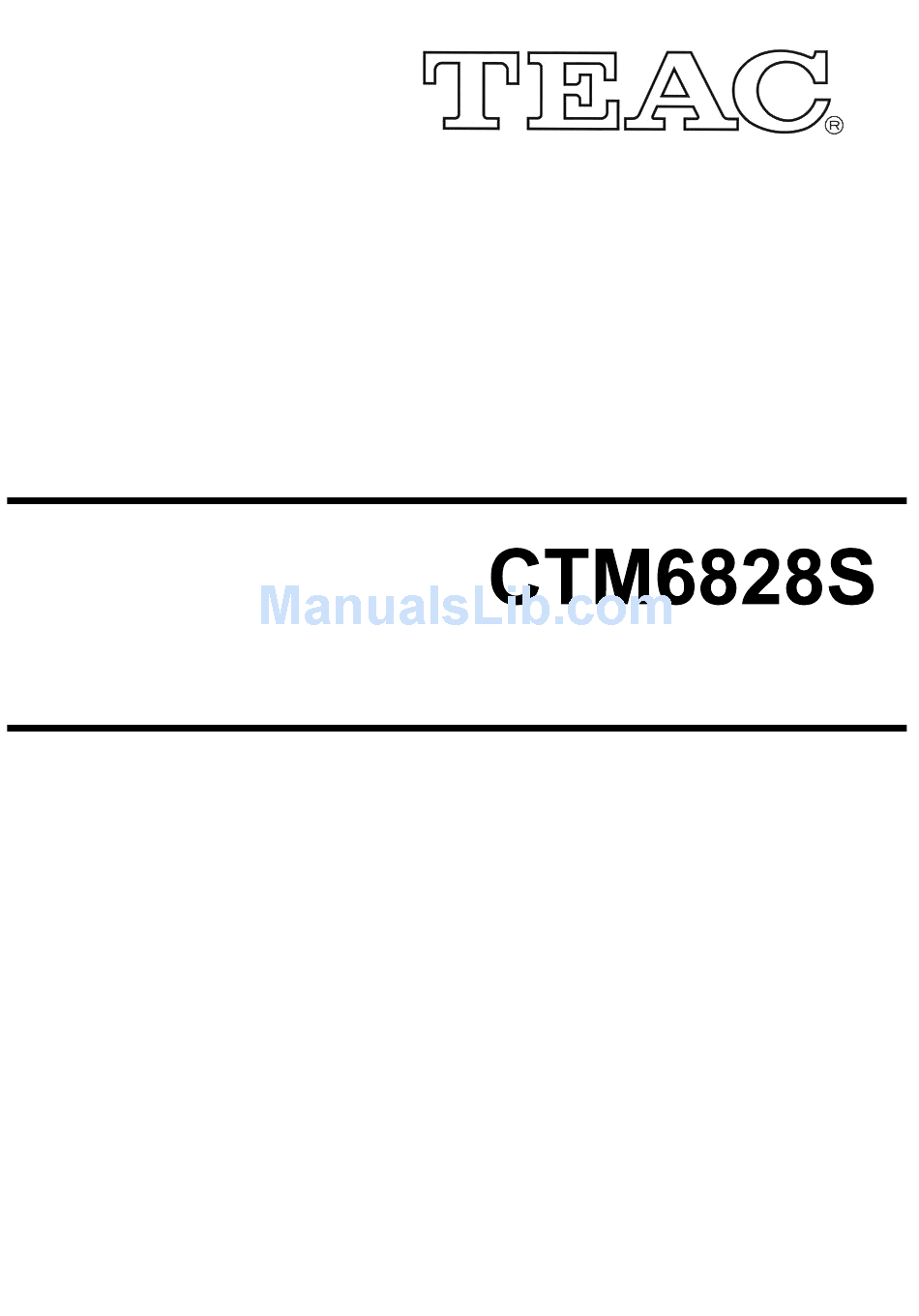

Page 1: Service Manual
SERVICE MANUAL Version 2- 68 cm CTV Effective: MAY 2000 CTM6828V2SERV... - Page 2 Note that the braid of the good quality cable is very tight and totally covers the internal wire. Instructions Replaced the faulty RF cable assembly using the part number 40252200111. Regards, Alcides Berta TEAC Australia Pty Ltd. Page 1 of 1...
- Page 3 15 seconds. POWER Note: The final version of remote control may be slightly different from the one used to prepare this bulletin. Regards, Alcides Berta TEAC Australia Pty Ltd. Page 1 of 1...
- Page 4 1- Delete the jumper W286 on the main PCB next to CN111 in the fly-back transformer area. 2- Add a cable between the IF shielding can and the heat sink for the audio output IC. Regards, Alcides Berta TEAC Australia Pty Ltd. Page 1 of 1...
- Page 5 PCB by approximately 10 mm. Wrong type Correct type Carbon film resistor Metal oxide resistor PN: 11347020512 PN: 11347020575 47 Ohm, ½ W 47 Ohm, ½ W Alcides Berta TEAC Australia Pty Ltd. Page 1 of 1...
- Page 19 R/TOP CAB-ENG STD/M.BLK SILVER 877C (FOR MITSUBISH IýC) 1 902-R83301-01 HANDSET REAR CAB - MATT BLK SPARY 910-R83301-01 BATTERY DOOR - MATT BLACK 919-R83310-11 REMOTE TOP DOOR - TEAC DESIGN (CT-M6828S)(RC-787) FOR POWER 504-305006-10 MACHINE SCREW 3 X 6 B/M (WHITE) SWITCH MTG. FOR JACK PLATE...
- Page 20 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 800-829B12-00 POLYFOAM (B) - TOP RIGHT 800-829B13-00 POLYFOAM (B) - BOTTOM LEFT 800-829B14-00 POLYFOAM (B) - BOTTOM RIGHT FOR AC LINE 810-052204-14 POLYBAG 5" X 22" X 0.04MM W/RE-CYCLING MARK {P/O MAT}...
- Page 21 G/B-TEAC (D) DESIGN(CT-M6828S) (K3A3A3K)W/V-NUMBER,W/H-PHONE FOR 2ND LOT 2-ON R & L SIDES OF CTN,1- 663-230093-00 SERIAL NO.LABEL - TEAC DESIGN R/LABEL,1- WARRANTY CARD 669-829B01-13 RATING LABEL - TEAC (D) DESIGN (CT-M6828S) 240V 670-829B00-37 I/MANUAL - TEAC (E) DESIGN (CT-M6828S)"MITSUBISH IýC"...
- Page 22 EAN CODE LABEL - 9325073002067 SPEAKER GRILLE- SILVER (1008K) SPY 0.5MM THK í1.0 HOLE 2 703-829B02-05 SUPPLIED BY 710-932901-01 NAME PLATE - TEAC (B) DESIGN (BIG SIZE) (ELECTROFORMED) VIDEO EPOCH FOR I/MANUAL 810-091504-13 POLYBAG 9" X 15" X 0.04MM W/ RE-CYCLING P.E.MARK...
- Page 23 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION R101,140,148,152,1 61,166,197,198,208- 113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% 211,114 R245,249,250,267,2 113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% 68,402,510 R243,244,278 113-102005-17 CARBON FILM RESISTOR 1K OHM 1/16W +-5% R973...
- Page 24 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 113-272205-12 CARBON FILM RESISTOR 2.7K OHM 1/2W +-5% R415 R119,258,135 113-273005-17 CARBON FILM RESISTOR 27K OHM 1/16W +-5% R156,157,271,261- 113-331005-17 CARBON FILM RESISTOR 330 OHM 1/16W +-5% 263,155 R901,938 113-331105-17 CARBON FILM RESISTOR 330 OHM 1/4W +-5%...
- Page 25 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 113-822005-17 CARBON FILM RESISTOR 8.2K OHM 1/16W +-5% R125,126 R903 113-822105-17 CARBON FILM RESISTOR 8.2K OHM 1/4W +-5% R120 113-823005-17 CARBON FILM RESISTOR 82K OHM 1/16W +-5% R118 113-824005-17 CARBON FILM RESISTOR 820K OHM 1/16W +-5%...
- Page 26 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 126-333071-01 MYLAR CAP. 0.033 MFD 50V +-10% C907,155 W130,131 126-334071-01 MYLAR CAP. 0.33 MFD 50V +-10% C408 126-364211-31 POLYPROPYLENE CAP. 0.36 MFD 250V +-10% C128,130 126-472071-01 MYLAR CAP. 0.0047 MFD 50V +-10%...
- Page 27 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION D403- 407,901,902,905,90 130-315295-00 RECTIFIER DIODE S5295G TOSHIBA 9,910 ZD103 130-410036-00 ZENER DIODE 3.6V 1/2W ZD901 130-410039-01 ZENER DIODE 3.9V ZD902 130-410056-01 ZENER DIODE 5.6V ZD503 130-410068-01 ZENER DIODE 6.8V 1/2W +-5% 130-410082-01 ZENER DIODE 8.2V...
- Page 28 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 160-103255-27 PIN CONNECTOR 3 PINS PLUG CN103,105,106,110 CN403,402 160-103805-08 PIN CONNECTOR 3 PIN PLUG STRAIGHT J903 160-104254-27 PIN CONNECTOR 4 PINS PLUG (ANGLE TYPE) CN113,115,404 160-104255-27 PIN CONNECTOR 4 PINS PLUG (SHS)
- Page 29 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION (W901-902 ON 172-726000-99 BARE WIRE 54MM SCART PCB) W21,22,23,(W901,9 06,907,909 ON 172-726000-99 BARE WIRE 54MM POWER PCB) W209,210,(W601 172-726000-99 BARE WIRE 54MM ON SENSOR PCB) W237- 172-726000-99 BARE WIRE 54MM 247,287A,288A,289...
- Page 30 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION CN403 TO POWER 191-301036-07 3 PIN SOCKET ASS'Y L=480MM BOARD PIN `1' TO `4',`2' TO `5' `3' TO `6' 191-301036-07 3 PIN SOCKET ASS'Y L=480MM CN402 TO POWER 191-301067-10 3 PIN L=350MM #22 UL1672 (2 WIRE) STV8-3H...
- Page 31 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 1 FOR BR901,1 517-303312-10 SELF-TAPPING SCREW 3 X 12 W/A W/H=7MM (HARDEN) FOR Q909 4-L901,4-L905,2- T402,2-L401,2- 540-020030-01 EYELET 2 X 3 MM R416,2-C408, 1-Q403 `C',2-L402 540-020030-01 EYELET 2 X 3 MM...
- Page 32 CTM6828S VERSION 2 I2C CHASSIS QTY LOCATION PART_NO DESCRIPTION 146-100006-14 POWER SWITCH PS5E-B "CHINA LANDMARK" # SK501 161-540004-01 CRT SOCKET ISH-01 IN CHANG # F901 182-224000-03 FUSE T4A 250V FUSE T4A/250V 5 X 20 MM TIME- LAG #50T040H "UNITRONIC" 0...
