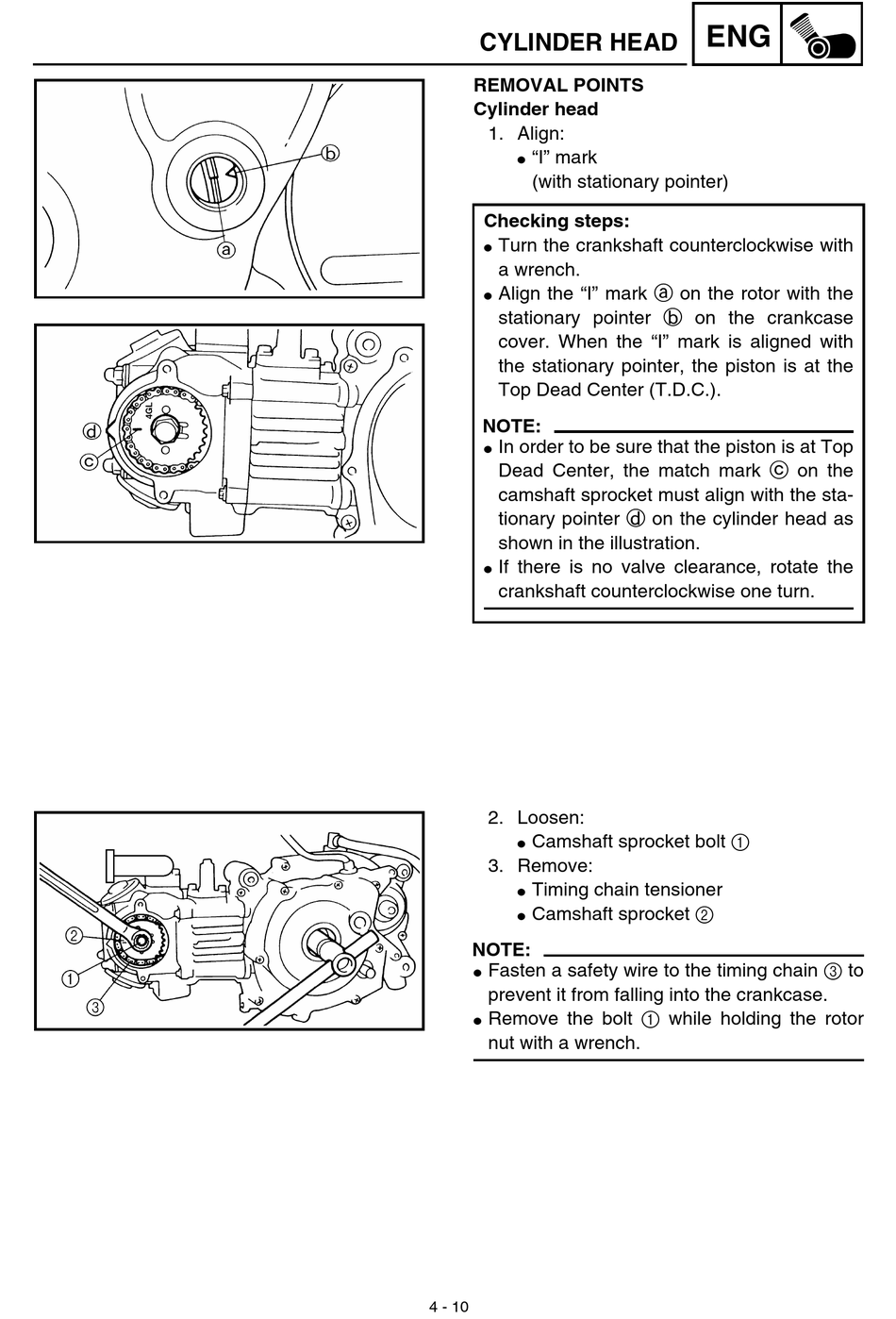

CYLINDER HEAD
REMOVAL POINTS
Cylinder head
1. Align:
"I" mark
G
(with stationary pointer)
Checking steps:
Turn the crankshaft counterclockwise with
G
a wrench.
Align the "I" mark a on the rotor with the
G
stationary pointer b on the crankcase
cover. When the "I" mark is aligned with
the stationary pointer, the piston is at the
Top Dead Center (T.D.C.).
NOTE:
In order to be sure that the piston is at Top
G
Dead Center, the match mark c on the
camshaft sprocket must align with the sta-
tionary pointer d on the cylinder head as
shown in the illustration.
If there is no valve clearance, rotate the
G
crankshaft counterclockwise one turn.
2. Loosen:
Camshaft sprocket bolt 1
G
3. Remove:
Timing chain tensioner
G
Camshaft sprocket 2
G
NOTE:
Fasten a safety wire to the timing chain 3 to
G
prevent it from falling into the crankcase.
Remove the bolt 1 while holding the rotor
G
nut with a wrench.
4 - 10
ENG
