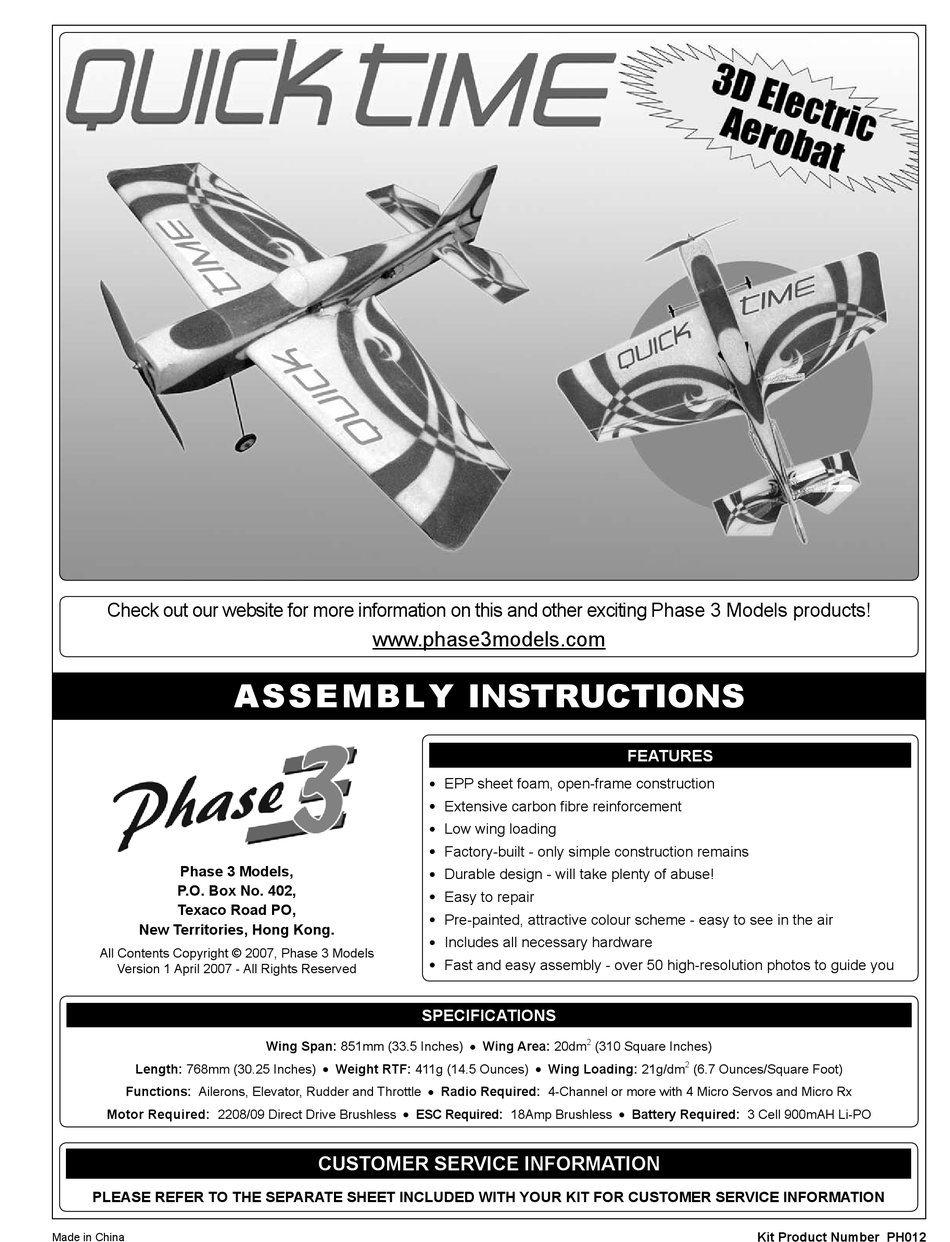

Phase 3 Quick Time Assembly Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Check out our website for more information on this and other exciting Phase 3 Models products!
Phase 3 Models,
P.O. Box No. 402,
texaco road PO,
New territories, Hong Kong.
All Contents Copyright © 2007, Phase 3 Models
Version  April 2007 - All Rights Reserved
Length: 768mm (30.25 Inches)
functions: Ailerons, Elevator, Rudder and Throttle
Motor required: 2208/09 Direct Drive Brushless
PLease refer tO tHe seParate sHeet iNCLuded WitH yOur Kit fOr CustOMer serviCe iNfOrMatiON
Made in China
www.phase3models.com
A SSEMB LY INSTRUCTIONS
Wing span: 85mm (33.5 Inches)
Weight rtf: 4g (4.5 Ounces)
l
l
CustOMer serviCe iNfOrMatiON
EPP sheet foam, open-frame construction
l
Extensive carbon fibre reinforcement
l
Low wing loading
l
Factory-built - only simple construction remains
l
Durable design - will take plenty of abuse!
l
Easy to repair
l
Pre-painted, attractive colour scheme - easy to see in the air
l
Includes all necessary hardware
l
Fast and easy assembly - over 50 high-resolution photos to guide you
l
sPeCifiCatiONs
2
Wing area: 20dm
(30 Square Inches)
l
Wing Loading: 2g/dm
l
radio required: 4-Channel or more with 4 Micro Servos and Micro Rx
l
esC required: 8Amp Brushless
Page
features
2
(6.7 Ounces/Square Foot)
Battery required: 3 Cell 900mAH Li-PO
l
Kit Product Number PH012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quick Time and is the answer not in the manual?

Questions and answers

Related Manuals for Phase 3 Quick Time

Summary of Contents for Phase 3 Quick Time

  • Page 1 Check out our website for more information on this and other exciting Phase 3 Models products! www.phase3models.com A SSEMB LY INSTRUCTIONS features EPP sheet foam, open-frame construction Extensive carbon fibre reinforcement Low wing loading Factory-built - only simple construction remains...

  • Page 2: Table Of Contents

    In that Phase 3 Models has no control over the final assembly or material used for final assembly, no liability shall be assumed for any damage resulting from the use by the user of the final user-assembled product. By the act of using the final user-assembled product, the user accepts all resulting liability.

  • Page 3: Our Recommendations

    HiGH-PerfOrMaNCe aNd HOveriNG BrusHLess POWer systeM The Quick Time 3D EP can be flown using a variety of brushless direct drive motors. For the best flight performance (ideal for high performance flight and hovering), use the power system recommended below. For 'economy' aerobatics, we recommend the Alternate Brushless Power System.

  • Page 4: Lithium Polymer Battery Warnings - Please Read

    LitHiuM POLyMer Battery WarNiNGs - PLease read WARNINGS AND SAFETY PRECAUTIONS FOR ALL BRANDS OF LITHIUM POLYMER BATTERIES Please read and understand the warnings listed in this section. Make sure you read any and all warnings included in the packaging with your battery, too. If used improperly, lithium polymer batteries can be very dangerous, so please follow these warnings and suggestions at all times.

  • Page 5: Tools And Supplies Required

    tOOLs aNd suPPLies reQuired q 5 Minute Epoxy q Pencil q Thin and Thick C/A q T-Pins q #0 and # Phillips Head Screwdrivers q Set Square q .5mm Allen Key q 220 Grit Sandpaper with Sanding Block q Adjustable Wrench q Masking Tape q Wire Cutters q Paper Towels...

  • Page 6: Tips From The Pros

    tiPs frOM tHe PrOs Cleaning up the airframe: You may notice that the airframe has some small pieces of melted foam "strings" left from the hot-wire cutting process. You can remove these quickly by very lightly sanding the foam with 220 grit sandpaper. We don't suggest sanding the painted areas or the paint will be removed, too.
  • Page 7 q Install the KMS motor mount adapter (available separately) onto the motor, using the machine screw, hex nut and washer included with the adapter. q Install the motor assembly onto the end of the motor mounting stick, using two small wood screws (not included). PRO TIP After flying the aircraft, you may want to add right and/or down thrust to the motor.

  • Page 8: Wing Installation

    q Install your motor onto the motor mounting plate, using three wood screws (not included). PRO TIP After flying the aircraft, you may want to add right and/or down thrust to the motor. You can do this by adding thin washers between the motor mount and the mounting plate.

  • Page 9: Stabiliser Installation

    q Carefully draw a centreline mark on the top of the wing, at the trailing edge, using the centreline joint on the bottom of the wing as a guide. q Measure out 25mm (") to the right and to the left of the centreline mark (C/L) and draw two more marks (a).

  • Page 10: Control Surface Hinging

    steP 1: aLiGNiNG tHe staBiLiser q Set the elevator aside for now. q Draw a centreline mark on the trailing edge of the stabiliser. q Slide the stabiliser into the fuselage and align it. The notch in the leading edge should fit around the fuselage sides and the centreline mark you drew should be centred with the middle of the fuselage.
  • Page 11 steP 1: HiNGiNG tHe aiLerONs q Sand a 45º bevel into the top and bottom of the leading edge of one aileron, making sure that the bevels line up along the centreline. q Mark the four locations for the aileron hinges onto the aileron. q Carefully cut four hinge slots in the leading edge of the aileron at the marks that you drew, then cut four hinge slots at the corresponding locations in the trailing edge of the wing.
  • Page 12 q Mark the four locations for the elevator hinges onto the elevator. q Cut four hinge slots into the leading edge of the elevator, then glue the hinges into place, using the same techniques that you used to cut the hinge slots and glue the hinges into the ailerons.

  • Page 13: Control Systems Installation

    CONtrOL systeMs iNstaLLatiON yOu'LL Need tHe fOLLOWiNG Parts frOM tHe Kit: q Plastic Clevises - 4 q Pushrod Wires - 3 q Wood Screws - 2 q Plastic Control Horns - 6 yOu'LL Need tHe fOLLOWiNG tOOLs aNd suPPLies: q 5 Minute Epoxy q .6mm (/6") Drill Bit q Thin C/A q Ruler...
  • Page 14 q Cut one pushrod wire exactly in half, then make a Z-Bend in one end of one pushrod wire. q So that you can adjust the length of the pushrod after it's installed, carefully make a V-Shaped bend in the pushrod wire 25mm (") behind the Z-Bend.
  • Page 15 steP 3: iNstaLLiNG tHe rudder CONtrOL LiNKaGe asseMBLy q Carefully trim away the innermost hole from one control horn, as shown. IMPORTANT You must trim the control horn like this so that it won't hit the fuselage side when the rudder pivots right and left. q Install the control horn onto the left side of the rudder, 76mm (3") up from the bottom of the rudder, using the three wood screws and the control horn backplate provided.

  • Page 16: Landing Gear Installation

    q Install both aileron linkage assemblies, using the same techniques that you used to install the elevator and rudder linkage assemblies. The servo arms should point down towards the wing and the pushrod wires should be installed into the outermost hole in the servo arms.

  • Page 17: Final Assembly

    steP 2: iNstaLLiNG tHe WHeeLs q Slide one wheel onto each axle and secure the wheels into place, using the two plywood wheel retainers. IMPORTANT Apply a dab of epoxy to the plywood wheel retainers to secure them to the axles. Be careful not to get glue between the wheels and the axles.
  • Page 18 steP 3: iNstaLLiNG tHe Battery q Mount the battery to the bottom of the battery mount, using a piece of Velcro (hook and loop material - not included). PRO TIP For better hovering ability, install the battery under the canopy. Please note that this will move the C/G back and the aircraft will become less stable.

  • Page 19: Balance Point And Control Throws

    BaLaNCe POiNt aNd CONtrOL tHrOWs BaLaNCe POiNt the Centre of Gravity (C/G or Balance Point) is 95mm (3-3/4") back from the leading edge of the tOP wing, measured at the sides of the fuselage. WARNING For test flying and general sport flying, we suggest you balance the aircraft at the C/G recommended above. For 3D flying, you may want to experiment moving the C/G back in small increments until you're satisfied with the result.
  • Page 20 You should not knowingly operate your R/C radio system within 4 kilometers (3 miles) of a pre-existing model club flying field without a frequency sharing agreement with that club. Phase 3 Models, P.O. Box No. 402, texaco road PO, New territories, Hong Kong.
