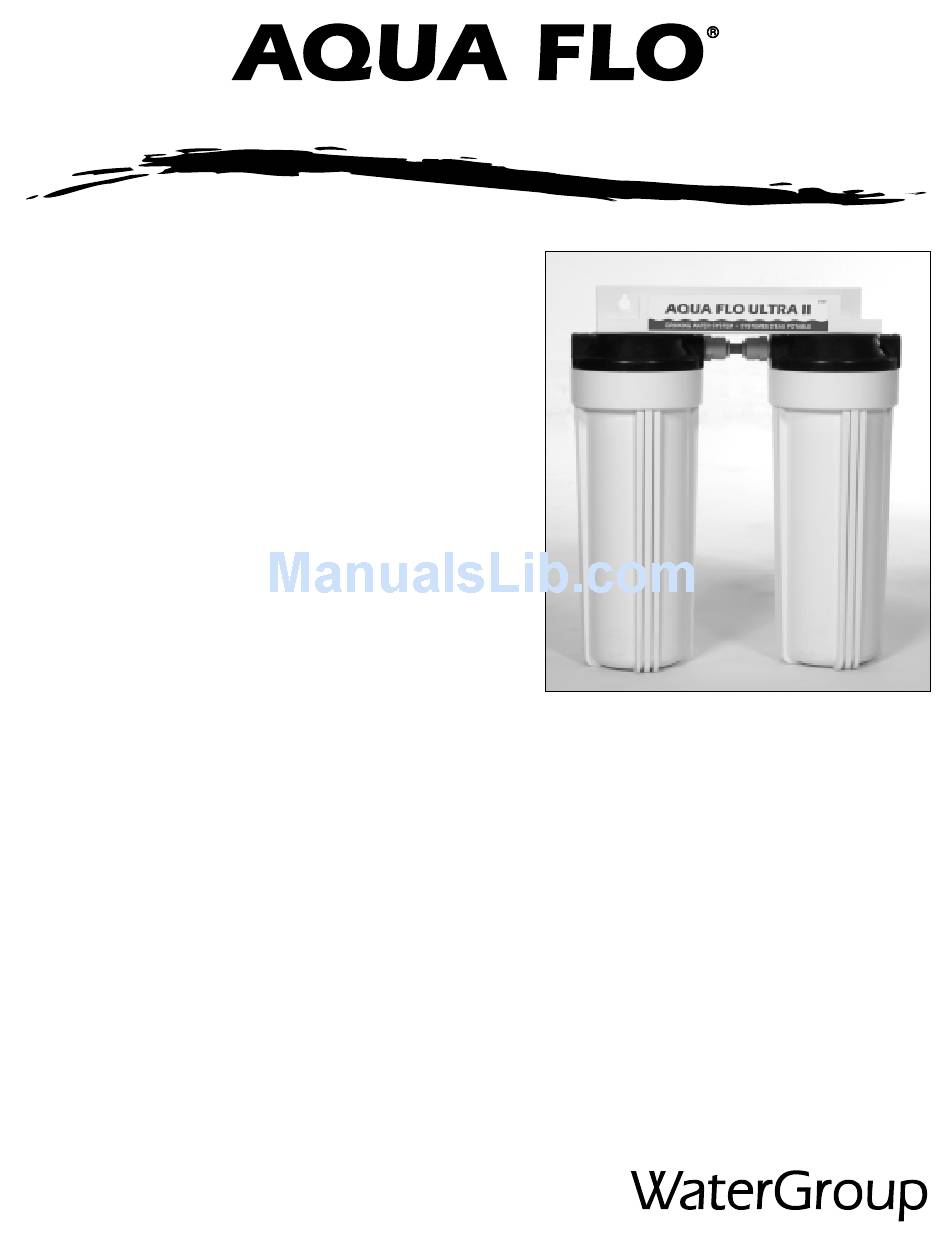

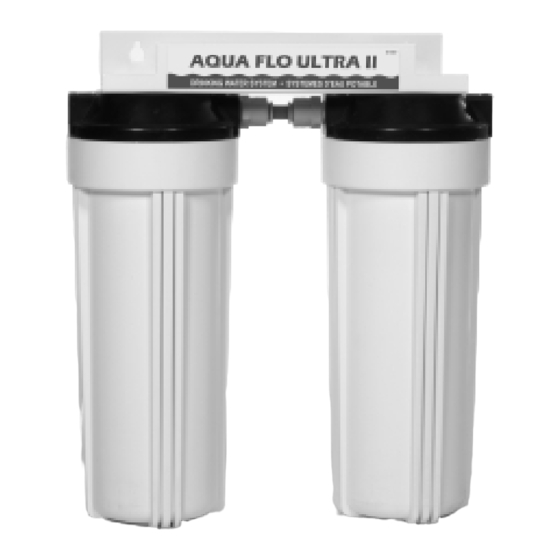

WaterGroup Aqua Flo ULTRA 2 Installation Instructions

ULTRA 2 UNDER SINK FILTER INSTALLATION INSTRUCTIONS
Limited Warranty
• This warranty is valid for twelve months from date of purchase.
If this product is found to be defective in the judgement of the
manufacturer, a like or similar product will be provided at no
charge.
• The manufacturer shall not be liable for damages or delays
caused by defective material or workmanship or by failure due
to normal wear.
• Retain for your records along with your proof of purchase.
Precautions
• This filter is designed to operate at water pressure up to 100
psi. Normal municipal water pressure is 40 - 60 psi.
• Plastic housing parts must not be subjected to freezing,
excessive heat or direct sunlight. These conditions may cause
failure.
• Install filter with a minimum of 3" clearance - top, bottom and
sides.
• Do not overtighten fittings when installing this unit.
Ultra 2 Parts include:
1 Two housing bracket c/w housing and cartridges
1 5 foot length 1/4" OD blue tubing (product water)
1 5 foot length 1/4" OD white tubing (feed water)
2 Phillips #10 x 3/4" stainless steel screws
2 1/4" plastic tubing inserts
2 Elbow, 1/4" x 1/4", QC x MNPT
1 Filter housing wrench
1 SV9 self tapping feed water saddle c/w quick connect tube
fitting
1 Long reach faucet assembly c/w quick connect tube fitting
Package A
Package B
Item #26117
Replacement Cartridges
Carbon Filter #26006
- Replace a minimum of every six months or as
required.
- Carbon filters require some rinsing to remove
carbon fines before installation.
Post-filter #26118 - 0.5 Micron Carbon Briquette
Cartridge
- Replace a minimum of every 12 months or if
production or quality of water diminishes.
#51450 Rev. 8/08
