FOLLOWTHE INSTALLATION INSTRUCTIONS CAREFULLY. FAILURE TO
INSTALL THE UNIT PROPERLY VOIDS THE WARRANTY. BEFORE YOU
BEGIN INSTALLATION, READ THIS ENTIRE MANUAL. THEN, OBTAIN ALL
THE MATERIALS AND TOOLS
1. Avoid pinched o-rings during installation by applying (provided with install kit) NSF
certified lubricant to all seals.
2. This system is not intended for treating water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or after the system.
REVISION #
1
REVISION DATE December, 29, 2014
54816

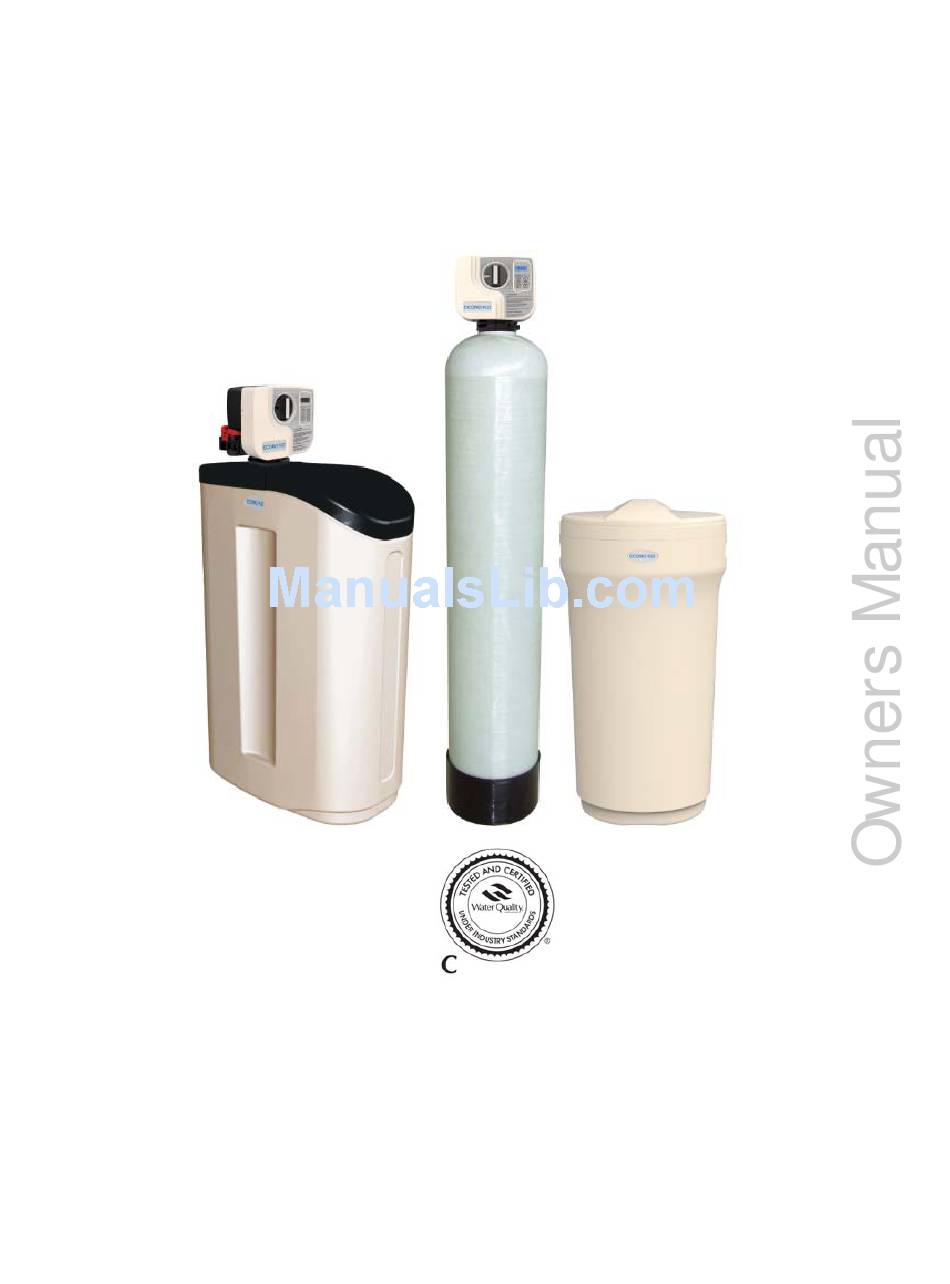

Econoflo Water Conditioner
Installation and Maintenance
Instruction Manual
Tested and Certified by the Wa-
ter Quality Association to CSA
B483.1.
Advertisement
Table of Contents
Related Manuals for WaterGroup Econoflo ECS20
Summary of Contents for WaterGroup Econoflo ECS20
- Page 1 Econoflo Water Conditioner Installation and Maintenance Instruction Manual Tested and Certified by the Wa- ter Quality Association to CSA B483.1. FOLLOWTHE INSTALLATION INSTRUCTIONS CAREFULLY. FAILURE TO INSTALL THE UNIT PROPERLY VOIDS THE WARRANTY. BEFORE YOU BEGIN INSTALLATION, READ THIS ENTIRE MANUAL. THEN, OBTAIN ALL THE MATERIALS AND TOOLS 1.
-
Page 2: Table Of Contents
Table of Contents PAGE Unpacking / Inspection Safety Guide Proper Installation Specification Before Starting Installation Installation Instructions System Start Up Programming Instructions About The System Maintenance Sanitizing Procedure Main Repair Parts Trouble Shooting Warranty Unpacking / Inspection Be sure to check the entire softener for any shipping damage or parts loss. Also note dam- age to the shipping cartons. -
Page 3: Proper Installation
Proper Installation This water softening system must be properly installed and located in accordance with the Installation Instructions before it is used. Do not install or store where it will be maximum. Use a pressure reducing valve exposed to temperatures below freezing or to reduce the pressure. -
Page 4: Before Starting Installation
Tested and Certified by the Water Quality Association to Performance Data Sheet CSA B483.1. Water Temperature = Min 39°F / Max 100°F At the stated service flow rates, the pressure drop through Operating Pressure = Min 35 PSI / Max 125 PSI these devices will not exceed 15 psig. - Page 5 Where To Install The Softener Place the softener as close as possible to The manufacturer will not repair or pay for the pressure tank (well system) or water water damage. meter (city water). A 120 volt electric outlet, to plug the in- ...
-
Page 6: Installation Instructions
Installation Instructions 1. If your hot water tank is electric, turn off the power to it to avoid damage to the element in the tank. 2. If you have a private well, turn the power off to the pump and then shut off the main wa- ter shut off valve. - Page 7 Installation Twin Tank...
-
Page 8: System Start Up
System Start-Up Key Pad Configuration SETTINGS This function is to enter the basic set up information required at the time of installation. MANUAL REGEN This button has two functions. The first is to initiate an immediate or delayed manual regeneration. The second is while in programming mode, pressing this key allows the user to change the value of each setting. DOWN / UP Increase or decrease the value of the settings while in the program‐ ming mode. Start-up Instructions 1. Plug the power transformer into an ap- fines are washed out of the softener indi- proved power source. Connect the power cated by clear water in the drain hose. -
Page 9: Programming Instructions
Programming Instructions Press SETTINGS to advance to the TIME of DAY. TIME of DAY will flash. Press Up and Down key to adjust the TIME of DAY. Press and Hold UP or DOWN key to quickly ad- vance the hours and minutes. When desired time is displayed, press SELECT to Ad- vance to the HARDNESS setting. -
Page 10: About The System
About The System Operation During A Power Failure In the event of a power failure, the valve will keep track of the time and day for 48 hours. The programmed settings are stored in a non-volatile memory and will not be lost during a power failure. -
Page 11: System Configuration
Automatic Hard Water Bypass During Regeneration The regeneration cycle can last 30 to 180 minutes, after which soft water service will be re- stored. During regeneration, hard water is automatically bypassed for use in the household. Hot water should be used as little as possible during this time to prevent hard water from filling the water heater. -
Page 12: Maintenance
Manual Bypass In the case of emergency, such as an overflowing brine tank, you can isolate your water softener from the water supply using the bypass valve located at the back of the control. In normal operation the bypass is open with the on/off knobs in line with the inlet and outlet pipes. - Page 13 Cleaning or Replacing Injectors Sediment, salt and silt will restrict or clog the injector. A clean water supply and pure salt will prevent this from happening. The injector assembly is located on the right side of the control valve. This assembly is easy to clean.
- Page 14 Replacing Drain Line Flow Control (DLFC) 1. Remove the red clip that secures the drain line elbow. 2. Remove the BLFC washer from the elbow fitting. 3. Reassemble using the reverse procedure.
-
Page 15: Sanitizing Procedure
Care of Your System To retain the attractive appearance of your new water softener, clean occasionally with mild soap solution. Do not use abrasive cleaners, ammonia or solvents. Never subject your sof- tener to freezing or to temperatures above 100°F. Resin Cleaner An approved resin cleaner must be used on a regular basis if your water supply contains iron. -
Page 16: Main Repair Parts
Main Repair Parts - Connectors REPLACEMENT PARTS - CONNECTORS Replacement Part Number Part Description DWG # Quantity 60010020 3/4" NPT ELBOW 60010019 1" NPT STRAIGHT 60010023 3/4" NPT STRAIGHT 60010079 VALVE COUPLING INLET 60010101 VALVE COUPLING OUTLET (METER SIDE) 60010025 PLASTIC SECURE CLIP 60010046 BYPASS SS CLIP... - Page 17 Control Valve Exploded View...
-
Page 18: Control Valve Parts List
Control Valve Parts List Item No. Part No. Part Discription Quantity 05056087 Screw-M5×12(Hexagon) 05056088 Screw-M5×16(Hexagon with Washer) 05056047 End Plug Retainer 05010081 Bnt65 Piston Rod 05056097 Piston Pin 05056023 End Plug 05056070 Quad Ring 05056024 End Plug Washer 05056022 Piston Retainer 05056181 Piston (Electrical) 05056104... - Page 19 Power Head Exploded View...
-
Page 20: Power Head Parts List
Power Head Parts List Item No. Part No. Part Description Quantity 5056136 Screw-ST3.5×13(Hexagon with Washer) 5056014 Bnt65 Back Cover 5010045 Piston Stem Holder 13000426 Screw-ST2.9×13(Large Wafer) 5056139 Washer-3x13 5056005 Main Gear 5056083 Screw-M4x14 5056166 Screw-ST4.2×12(Large Wafer) 5056141 Washer-4x12 13111004 Washer-4x9 5056016 Refill Regulator 5056015... -
Page 21: Trouble Shooting
Trouble Shooting Issue Possible Cause Possible Solution A. Unit fails to initiate a 1. No power supply. Check electrical service, fuse, etc. regeneration cycle. 2. Defective circuit board. Replace faulty parts. 3. Power failure. Reset time of day. 4. Defective meter. Replace turbine meter. B. Water is hard. 1. By‐pass valve open. Close by‐pass valve. 2. Out of salt or salt level below water level. Add salt to tank. 3. Plugged injector / screen. Clean parts. 4. Flow of water blocked to brine tank. Check brine tank refill rate. 5. Hard water in hot water tank. Repeat flushing of hot water tank required. 6. Leak between valve and central tube. Check if central tube is cracked or o‐ring is damaged. Replace faulty parts. 7. Internal valve leak. Replace valve seals, spacer, and piston assembly. 8. Reserve capacity setting too low. Increase reserve capacity. 9. Not enough capacity. Increase salt dosage. C. Salt use is high. 1. Refill time is too high. Check refill time setting. 2. Defective flow control. Replace. -
Page 22: Warranty
Five Year Limited Warranty WaterGroup will replace the salt tank or cabinet tank, the fibreglass mineral tank, the ion exchange resin, and valve parts provided the failure is due to a defect in material or work- manship and not the result of damage from any of the conditions described in the general conditions of this warranty.
