INSTRUCTIONS FOR USE - TUMBLE DRYER
AWG 367
GB
IMPORTANT - PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING
THIS APPLIANCE.
KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.

Advertisement

loading

  Also See for Whirlpool AWG 367

  Related Manuals for Whirlpool AWG 367

  Summary of Contents for Whirlpool AWG 367

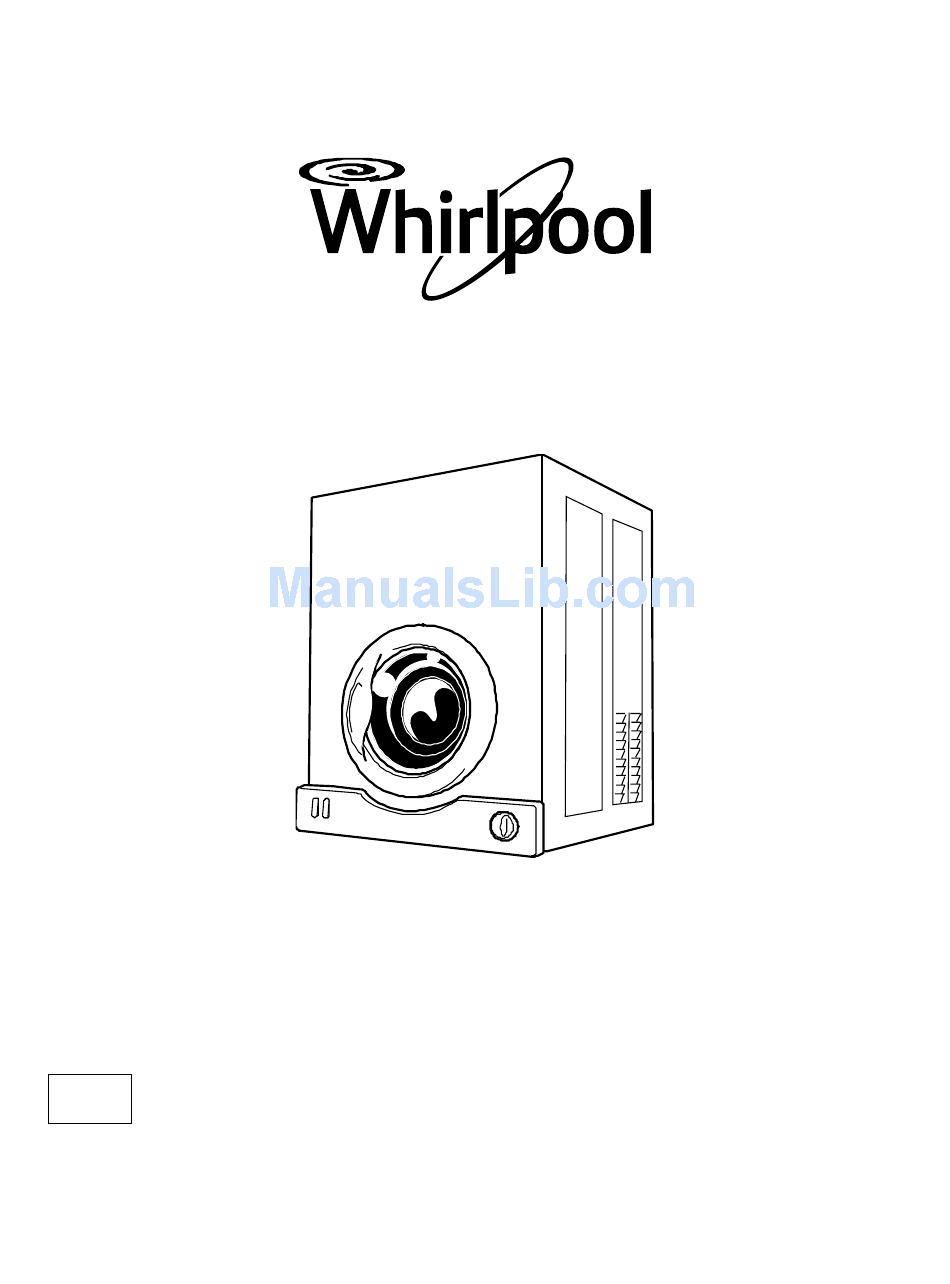

  • Page 1 INSTRUCTIONS FOR USE - TUMBLE DRYER AWG 367 IMPORTANT - PLEASE READ THESE INSTRUCTIONS THOROUGHLY BEFORE USING THIS APPLIANCE. KEEP THEM IN A SAFE PLACE FOR FUTURE REFERENCE.
  • Page 3: Installation

    INSTALLATION Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at the side of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.
  • Page 4: Final Installation

    The vent hose must be at least 10cm (4 ins) in diameter. No more than three right-angled bends should be allowed when positioning the vent hose. Do not distort or constrict the vent hose as this will reduce the airflow. When drying, the vent hose must always be extended to an open door or window.
  • Page 5: Operation

    Check care labels inside the garments. CARE LABELS YOU MAY FIND ON YOUR FABRICS Do not tumble dry woollen or wool mixture articles unless the article is labelled as being suitable. This should avoid shrinkage. Place delicate articles, e.g.tights, scarves, inside a pillowcase. To avoid the need to iron easy care polyester/cotton items it is better to only dry small loads (i.e.
  • Page 6 Your appliance is Reversing, small door opening a full load will typically take 95 minutes and will use approximately 2.05kWh of electricity. A half load will typically take 55 minutes and will use approximately 1.15 kWh of electricity. The drum will begin rotating. Reversing drum models will stop periodically to rotate in the reverse direction for a short time.
  • Page 7 If the clothes are not dry after normal drying time: – Check that you used the correct heat setting. – Check that you have not set the timer within a cool down period. – Check that the lint filter has been cleaned. A blocked filter will restrict the airflow. –...
  • Page 8: Important User Information

    This product is manufactured to comply with the radio interference requirements of the Council directive 89/336/EEC. It is intended for DOMESTIC use and not for commercial applications such as hairdressers. IMPORTANT USER INFORMATION These notes are provided in the interest of safety. You must read them before installing or using the appliance.
  • Page 9: This Appliance Must Be Earthed

    DO NOT block the air inlets at the side of your dryer. DO NOT allow fluff to accumulate around the tumble dryer. Risk of fire DO NOT exceed the recommended maximum load. DO NOT dry unwashed items in the tumble dryer DO NOT place articles in the dryer if anything other than a water solution has been used in the cleaning process.
  • Page 10 VENT HOSE ASSEMBLY One end of the vent hose is fitted with an adaptor which can be pushed into the exhaust outlet at the bottom rear of the tumble dryer. The free end should be led to a suitable outlet. It may simply be hung through an open window or a more permanent connection made using the four holes in the adapter flanges.
  • Page 12 4213 194 12401...
