INSTRUCTION MANUAL IMPORTANT INFORMATION : Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference. MANUEL D’INSTRUCTIONS RENSEIGNEMENTS IMPORTANTS: Avant d’utiliser cet appareil, veuillez lire atentivement les instructions et assurez- -vous de les avoir comprises. Conservez les instructions pour référence ultérieure.

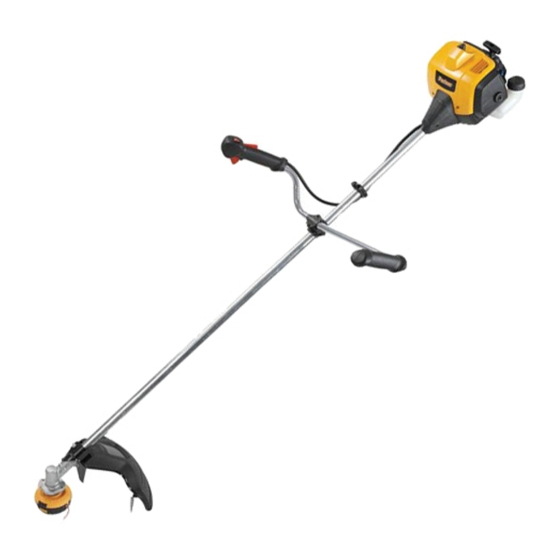

TABLE OF CONTENTS Identification (What is What?) Service & Adjustments Identification of Symbols Storage Safety Rules Troubleshooting Table Assembly Declaration of Conformity Operation Maintenance Technical Data IDENTIFICATION (WHAT IS WHAT?) 1. Fuel tank 12. Throttle trigger 2. Handlebar 13. Throttle lock- -out 3.
Page 3
IDENTIFICATION OF SYMBOLS WARNING! This brushcutter can be dangerous! Careless or improper use can cause serious or even fatal injury. B. Read and understand the instruction manual before using the brushcutter. C. Always use: Ear protection, eye protection, head protection, boots, and gloves. DANGER! Blade can thrust violently away from material it does not cut.
Page 4
Keep blade sharp. Keep cut- Stop coasting ting line at the proper length. blade by contact S Use only 2,4 mm diameter Partner brand with cut material. replacement line. Never use wire, rope, string, etc. S Install required shield properly before using the unit.
S Cut from your left to your right. Cutting on tor adjustments. right side of the shield will throw debris S Use only recommended Partner accessories away from the operator. and replacement parts. S Use only in daylight or good artificial light.
Page 6
ATTACHING THE HANDLEBAR 2. Position the lower shoulder harness clamp under the shaft and align the upper DANGER: and lower clamp screw holes. Clamp To avoid serious injury, the must be fittle above the arrow on the shaft barrier portion of the handlebar must be installed (see illustration above).
Page 7
ASSEMBLY INFORMATION - - TRIMMER HEAD TRIMMER HEAD 76 cm NOTE: Remove the blade before attaching the trimmer head. To remove blade, align hole in ATTACHING THE SHIELD the dust cup with the hole in the side of the gearbox by rotating the blade. Insert a small WARNING: The shield must be prop- screwdriver into aligned holes.
Page 8
These NOTE: To remove blade, insert screwdriver parts must be provided by Partner and installed into aligned holes. Unthread the nut and remove as shown below. Failure to use proper parts can parts. Be sure to store parts and instructions for cause the blade to fly off and seriously hurt you future use.
OPERATION STARTING A COLD ENGINE (or a WARNING: Be sure to read the fuel warm engine after running out of fuel) information in the safety rules before you be- gin. If you do not understand the safety rules, Starting position do not attempt to fuel your unit.
OPERATING POSITION can break off during cutting and become a dan- gerous missile that can cause serious injury. CUTTING METHODS Safety helmet ALWAYS WEAR: Hearing WARNING: Use minimum speed and protection Eye protection do not crowd the line when cutting around hard objects (rock, gravel, fence posts, etc.), which can damage the trimmer head, become entangled in the line, or be thrown causing a...
Page 11
S WHEN BLADE THRUST OCCURS - - Scalping Blade Thrust can occur without warning if the blade snags, stalls, or binds. This is more likely to occur in areas where it is difficult to see the material being cut. By using the unit properly, the occurrence of blade thrust will be reduced and the operator will be less likely to lose control.
S As you move forward to the next area to cut, WARNING: be sure to maintain your balance and footing. The operator or others must not try to clear away cut material with the RECOMMENDED CUTTING POSITION engine running or the blade turning to avoid 2 o’clock serious injury.
Page 13
4. Replace with a pre-wound spool, or re- place line using a 4,5 meters length of 2,4 mm diameter Partner brand line. WARNING: Never use wire, rope, string, etc., which can break off and become a dangerous missile.
CARBURETOR ADJUSTMENT WARNING: Keep others away when making idle speed adjustments. The trimmer head will be spinning during most of this pro- cedure. Wear your protective equipment and observe all safety precautions. After making adjustments, the trimmer head must not move/spin at idle speed.
Page 15
STORAGE ENGINE WARNING: Perform the following S Remove spark plug and pour 1 teaspoon of steps after each use: 40:1, 2-cycle engine oil (air cooled) through S Allow engine to cool before storing or trans- the spark plug opening. Slowly pull the starter rope 8 to 10 times to distribute oil.
Page 16
TROUBLESHOOTING TABLE WARNING: Always stop unit and disconnect spark plug before performing all of the recommended remedies below except remedies that require operation of the unit. TROUBLE CAUSE REMEDY Engine will not 1. ON/STOP (I/0) switch in 1. Move ON/STOP (I/0) switch to ON (I) start.
Page 17
We, Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: +46- -36- -146500, as authorised representative in the Community, declare that the brushcutter model Partner BC 433B with serial numbers dating from 2009 and onwards (the year is clearly stated on the rating plate, followed by the serial number), comply with the requirements of the COUNCIL’S...
Page 18
(standard deviation) of 1 dB(A). Note 3: Reported data for equivalent vibration level has a typical statistical dispersion (standard deviation) of 1 m/s Model BC 433B (3/8 LH arbor shaft thread) Centre hole in blades/cutters, ∅ 25,4 mm Approved accessories Type Cutting attachment /guard, part.
