A – 5350a
PPLICATIONS
The 5350a can be configured for 5-channel or
3-channel operation, as shown in Figures 9
and 10.

INPUT MODE SWITCH:

the front and rear inputs to the subwoofer.
dedicated signal to the subwoofer inputs; e.g.,
if your source unit has a subwoofer output.
NOTE: Minimum speaker impedance for
stereo operation is 2 ohms. Minimum speaker
impedance for bridged operation is 4 ohms.
Minimum impedance of any subwoofer or
combination of subwoofers is 2 ohms.
6
To Head Unit
Front
NOTE: If head unit includes
a separate subwoofer output,
connect it here and place
To Head Unit
Front Output
NOTE: If head unit includes
a separate subwoofer output,
connect it here and place
To Head Unit

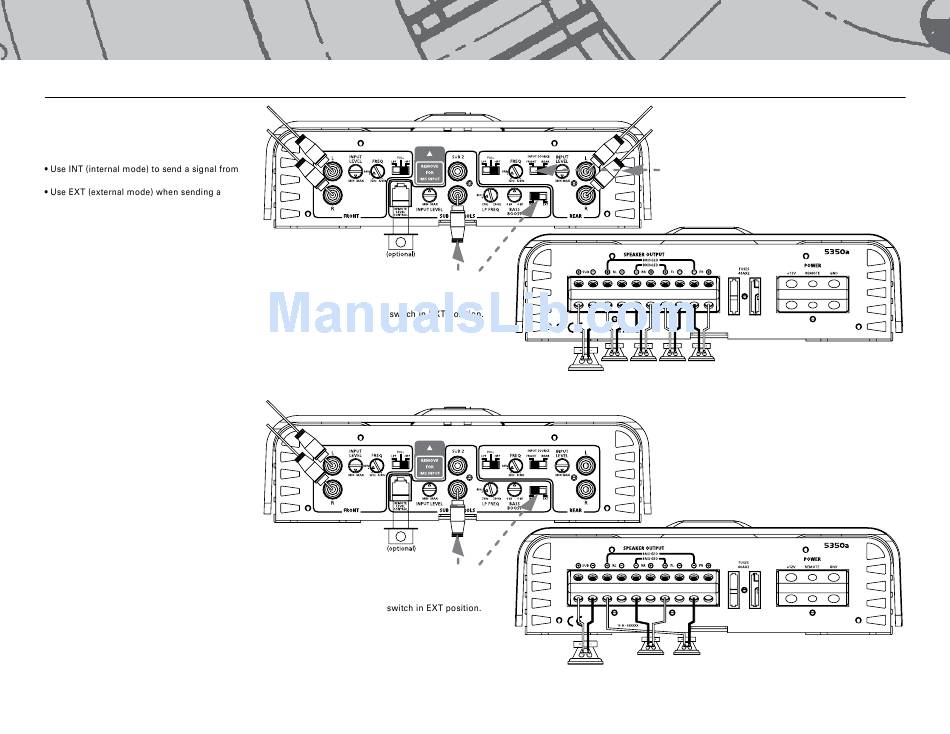

Figure 9. 5350a connected to four satellite
Rear
speakers and a single subwoofer. Note
crossover and channel assignment settings.
NOTE: If head unit has only two preamp outputs,
do not connect to rear, and place rear input
source switch in the FRONT position.
Rear Speakers Front Speakers
Subwoofer
Figure 10. 5350a connected in bridge
(3-channel) mode to a pair of satellite
speakers and a subwoofer. Note crossover
and channel assignment settings.
Left Speaker Right Speaker
Subwoofer
