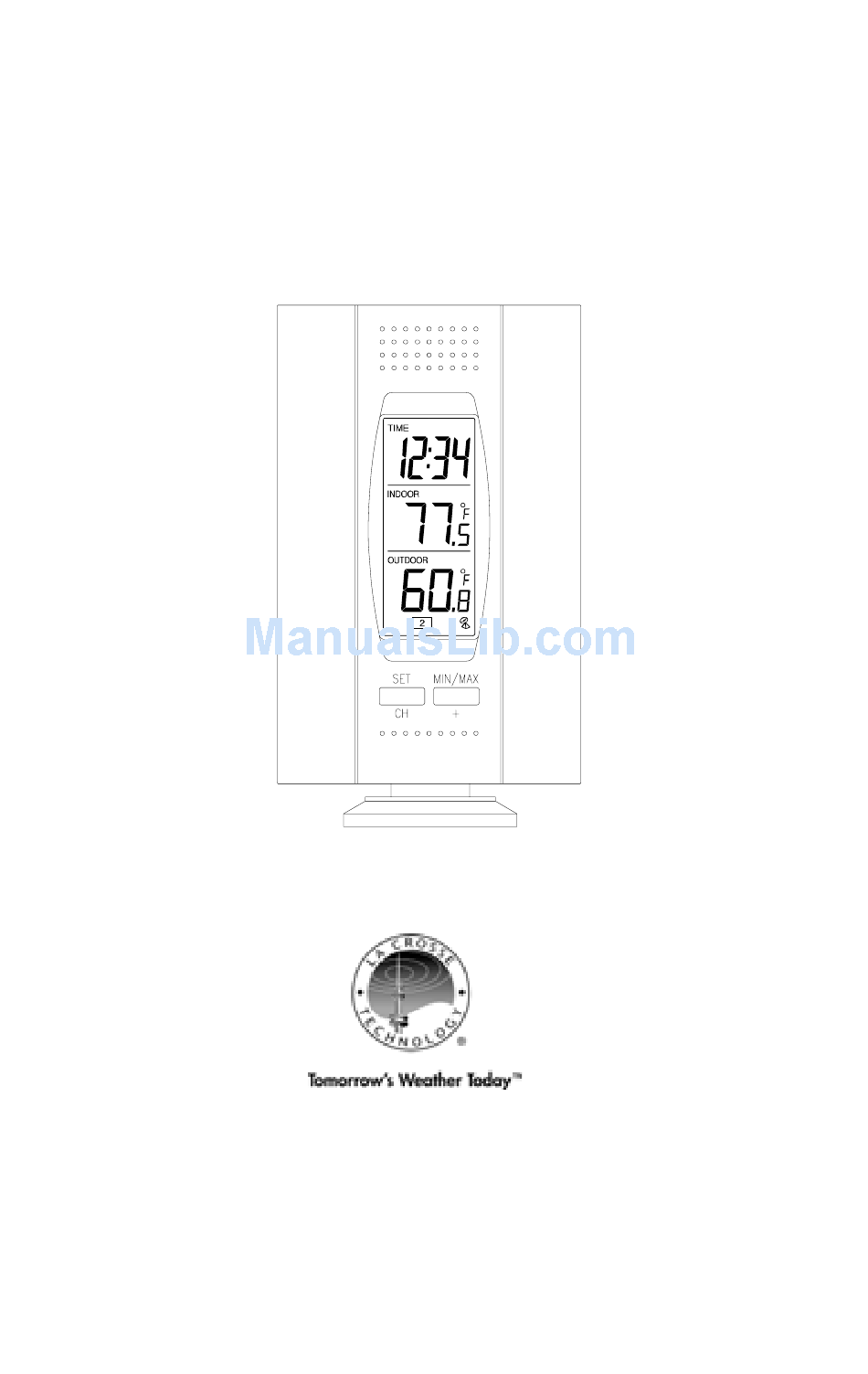

  • Page 1 WS-7013U-IT Wireless 915 MHz Temperature Station Instruction Manual...
  • Page 2 Topic Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation Setting the Time Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Additional remote temperature sensors (optional) Mounting Troubleshooting Maintenance and Care Specifications Warranty Information Page...

  • Page 3: Inventory Of Contents

    This product offers: INSTANT TRANSMISSION is the state-of- the-art technology, developed by LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you an immediate update (every 4 seconds!) of all your outdoor data measured from the sensors: follow your climatic variations in real-time!

  • Page 4: Quick Setup

    Figure 1 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver. 2 Fresh AAA 1.5V batteries. 2 Fresh AA 1.5V batteries QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. Have the indoor temperature station and remote temperature sensor 3 to 5 feet apart.
  • Page 5 Place the batteries into the remote temperature sensor first then into the indoor temperature station. (All remote temperature sensors must be started before the indoor temperature station) DO NOT PRESS ANY BUTTONS FOR 15 MINUTES. In this time the indoor temperature station and remote temperature sensor will start to talk to each other and the display will show both the indoor temperature and an outdoor...
  • Page 6 walls, floors, ceilings, thick trees, etc.) will effectively cut signal range in half. Example: A wireless weather station with a 330 feet range is mounted on an interior wall, so that the signal has to pass through one interior wall, one exterior wall, and across the 10 feet width of the room between the 2 walls.

  • Page 7: Complete The Set Up

    To complete the set up of your indoor temperature station after the 15 minutes have passed please follow the steps below. Press and hold the “SET/CH” button for 5 seconds. Note: A “12h” or “24h” will appear on the top line. (“12h” for AM/PM, “24h” for military time) To change between “12h”...

  • Page 8: Battery Installation

    6. When the correct hour is shown, press and release the “SET” button once. Press and release the SET button once more and you are done. DETAILED SETUP GUIDE BATTERY INSTALLATION - When one Temperature sensor is being used First, insert the batteries to the Temperature sensor (see “A.

  • Page 9: Remote Temperature Sensor

    data signal from the sensor. The outdoor temperature and humidity should then be displayed on the Temperature Station. If this does not happen after 2 minutes, the batteries will need to be removed from both units and reset from step 1 and the signal reception icon is no longer shown.
  • Page 10 a. Remove the battery cover on the backside. To do this, push up and pull out. b. Observing the correct polarity, install 2 AAA batteries. Replace battery cover. d. Wait 15 minutes to allow both the indoor and outdoor temperatures are shown on the indoor temperature station.
  • Page 11 * When the signal is successfully received by the Temperature Station, the icon will be switched on. (If not successful, the icon will not be shown in LCD) So the user can easily see whether the last reception was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that a reception is being done now.

  • Page 12: Setting The Time

    910MHz. This will also be done for re- synchronization. SETTING THE TIME Press and hold the “SET/CH” button for 5 second, “12h” will appear in the TIME LCD. Press and release the “MIN/MAX” button to select either 12h time (am/pm) or 24h time Press and release the “SET/CH”...
  • Page 13 To reset both the minimum and maximum temperatures—press and hold the “RESET/+” button for 4 seconds. ADDING ADDITIONAL REMOTE SENSORS (OPTIONAL) The WS-7013U-IT is able to receive signals from 2 additional temperature sensors. The following are instructions for the set-up of...
  • Page 14 temperature sensor units with the WS-7013U- IT. These extra sensors can be purchased through the same dealer as this unit. Remove all the batteries from the receiver and sensor(s) and wait 60 seconds. During these 60 seconds, press any button 20 times to discharge any excess power.
  • Page 15 Insert the batteries to the second sensor as soon as the outdoor temperature readings from the first sensor are displayed on the Temperature station. NOTE: You must insert the batteries into the second sensor within 45 seconds of reception of the first sensor.
  • Page 16 NOTE: You must insert the batteries into the third sensor within 45 seconds of reception of the second sensor. IMPORTANT: Transmission problems will arise if the setting for multiple sensors is not followed as described above. Should transmission problems occur, it is necessary to remove the batteries from all units and start again the set-up from step 1.
  • Page 17 To reset the Minimum/Maximum readings, press and hold the “MIN/MAX” button for four seconds. MOUNTING Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the remote temperature sensor on an outside North- facing wall.

  • Page 18: Troubleshooting

    Gently pull the indoor temperature station down to lock the screw into place. TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology via e-mail or phone, or visit our website, www.lacrossetechnology.com...
  • Page 19 Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature I displayed. Solution: 1) Remove all batteries, reinsert into remote temperature sensor first, and then into the indoor temperature station. 2) Place remote temperature sensor closer to the indoor temperature station. 3) Be sure all batteries are fresh.

  • Page 20: Maintenance And Care

    The indoor sensor is less responsive to ambient air currents because of the shielding effect of the display's case. In addition, the case can act as a heat sink to absorb and store heat from external sources (i.e. handling of the case or radiant heat). In addition, the much greater range of the outdoor temperature sensor requires a different calibration curve than the indoor range.

  • Page 21: Specifications

    Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. SPECIFICATIONS Transmitting Frequency Measuring Temperatures Indoor Temperature Station: Indoor Indoor Temperature Station: Outdoor Transmitting range Temperature check Indoor Outdoor Batteries—(Alkaline recommended)

  • Page 22: Warranty Information

    Remote Temperature Sensor Battery life WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product.
  • Page 23 Crosse Technology, Ltd. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered by this warranty. If necessary...
  • Page 24 USA address only. Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance);...
  • Page 25 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION.
  • Page 26 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com (information on other products) web: www.lacrossetechnology.com Questions? Instructions? Please visit: www.lacrossetechnology.com/7013 All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher.
  • Page 27 FCC ID: OMOTX29U (sensor) RF Exposure mobile: The internal / external antennas used for this mobile sensor must provide a separation distance of at least 20 cm (8 inches) from all persons and must not be co-located or operating in conjunction with any other antenna or sensor."...
