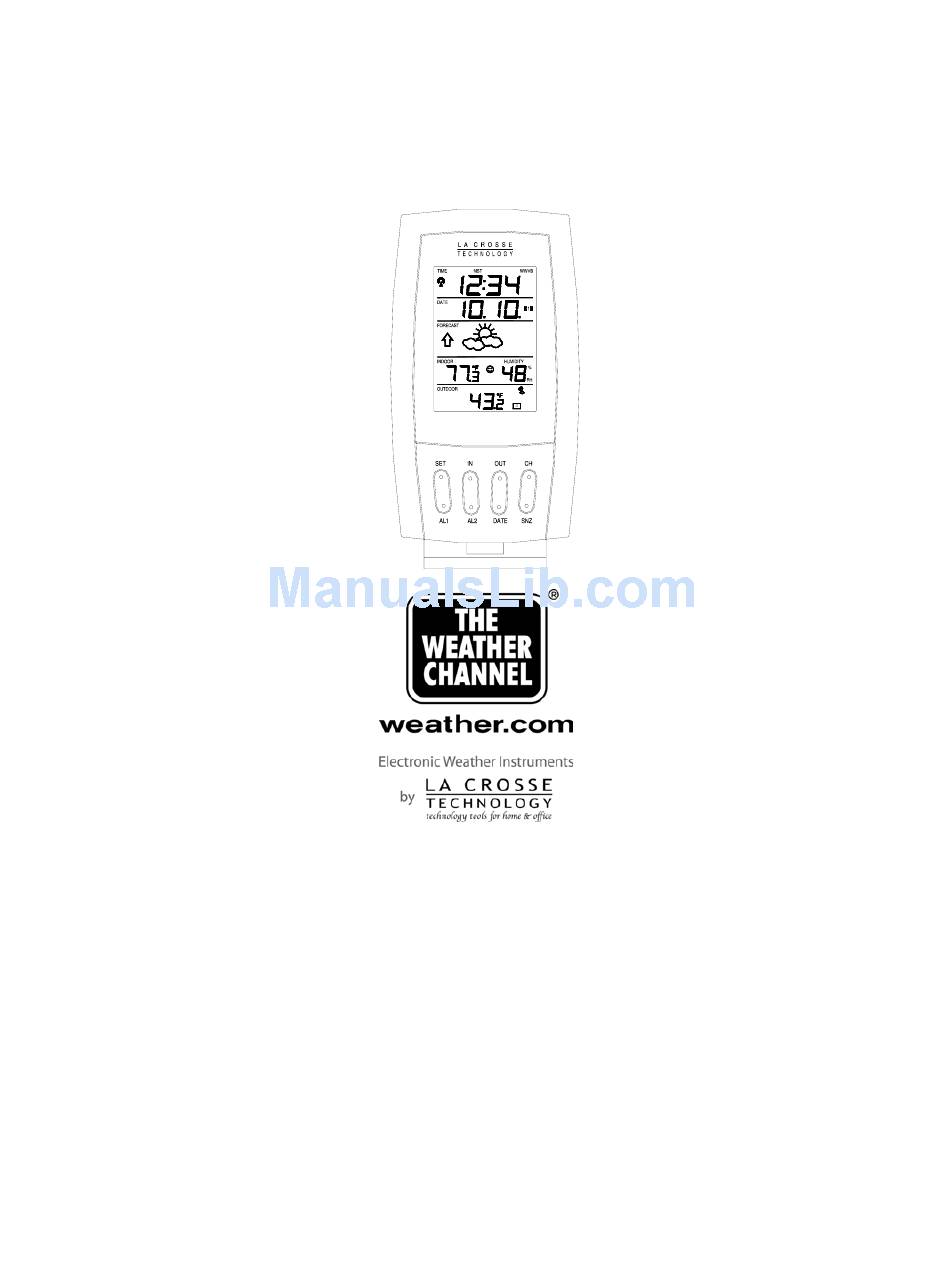

- Page 1 WS-7025TWC Wireless 433 MHz Radio-controlled Weather Station Instruction Manual...
-
Page 2: Table Of Contents
Topic Inventory of Contents/Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Function Keys 12/24 Hour Time Setting Time Zone Setting Daylight Saving Time Setting Time Setting (WWVB & Manual) Setting Day, Date and Year Selecting °F or °C Setting the LCD Contrast Features... -
Page 3: Inventory Of Contents/Additional Equipment
1. The weather station (Figure 1). 2. One TX6U remote temperature sensor with mounting bracket (Figure 2). 3. Three each, ½” Philips screws. 4. One strip double-sided adhesive tape. 5. Instruction Manual and Warranty Card. Time LCD Date LCD Forecast LCD Indoor LCD Outdoor LCD Figure 1... -
Page 4: About Wwvb
ABOUT WWVB (Radio Controlled Time) The NIST (National Institute of Standards and Technology—Time and Frequency Division) WWVB radio station is located in Ft. Collins, Colorado and transmits the exact time signal continuously throughout the United States at 60 kHz. The signal can be received up to 2, 000 miles away through the internal antenna in the weather station. -
Page 5: Quick Set-Up Guide
Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor weather station and remote temperature sensor 3 to 5 apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor weather station. -
Page 6: Detailed Set-Up Guide
I. BATTERY INSTALLATION A. REMOTE TEMPERATURE SENSOR 1. Remove the mounting bracket. bracket snaps on and off easily. 2. Remove the battery cover, by sliding the cover down. 3. Observing the correct polarity install 2 AA batteries. The batteries will fit tightly (to avoid start-up problems make sure they do not spring free). -
Page 7: Program Mode
correct time (default is Eastern). PROGRAM MODE Programming Note: If 30 seconds are allowed to pass or either the IN or the OUT button is pressed during programming modes, the unit will set the last information entered—the display will stop flashing and return to normal time-date readings. -
Page 8: Daylight Saving Time Setting
During selection of the Time Zone, the 3 letter abbreviations for the time zones found in North America will flash across the top of the TIME LCD. Observe the chart below, showing the corresponding abbreviations, time zones, and codes. TIME ZONES Atlantic EST;... -
Page 9: Time Setting (Wwvb & Manual)
the Time setting mode. V. TIME There are two methods by which the time can be set: A) Automatically via WWVB reception or B) Manually. A. WWVB (Remote Control Time) This method requires you to do nothing except wait for the signal to be received and to select a time zone. -
Page 10: Setting Day, Date And Year
"CH” button to change the minutes—increasing the minutes by increments of 1 with each press of the “CH” button. 6. Press and release the “SET” button to confirm the minutes and to advance to the Day, Date, and Year setting mode. Note: In 12h mode, “PM”... -
Page 11: Selecting °F Or °C
to select the appropriate year. 10. Press and release the “SET” button to confirm and to advance to the °F or °C setting mode. VII. SELECTING °F OR °C 1. Press and hold the “SET” button for 3 seconds, or until “12h” or “24h”... -
Page 12: Back Light
WWVB Tower Icon (indicates time reception) Weather Tendency Arrow I. BACK LIGHT The WS-7025U has a backlight that can be activated by pressing any of the eight function buttons. After a button has been pressed the backlight will come on for five seconds before automatically shutting off. II. - Page 13 A. WEATHER ICONS There are 3 possible weather icons that will be displayed in the FORECAST LCD: Sunny—indicates that the weather is expected to improve (not that the weather will be sunny). Sun with Clouds—indicates that the weather is expected to be fair (not that the weather will be sunny with clouds).
-
Page 14: Indoor Temperature, Humidity & Comfort
LEVEL INDICATOR The current indoor temperature (viewed on the left) and relative humidity (viewed on the right) are displayed in the INDOOR LCD. The comfort level indicator is located at the center of the INDOOR LCD. The comfort level indicator will display a happy face icon when the temperature is between 68°F and 79°F (20°C and 25.9°C) and the humidity is between 45% and 64%. - Page 15 return to the current data display. By waiting 20 seconds during either the minimum or the maximum readings the unit will automatically return to current data readings. B. VIEWING THE OUTDOOR TEMPERATURE RECORDS 1. Press the “OUT” button once. “MIN” appears in the upper- center location of the flashing OUTDOOR LCD, indicating that the minimum temperature and the time and date of occurrence are displayed.
- Page 16 A. SETTING THE ALARM (alarms 1 and 2) Note: There are two alarms that can set. Each alarm will sound for a complete duration of 2 minutes. 1. Press and hold the “AL1” button for 5 seconds or until the alarm-time display flashes in the DATE LCD.
-
Page 17: Additional Remote Temperature Sensor
(OPTIONAL) The WS-7025U is able to receive signals from 3 different remote temperature sensors. The remote temperature sensor model(s) that you choose will come with their own set of instructions. instructions for a complete guide to setting up. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-7025U. -
Page 18: Mounting
REMOTE TEMPERATURE SENSOR UNITS 1. To view the temperature of a different remote temperature sensor unit, press and release the “CH” button. A shift from one “boxed” number to the next should be observed in the OUTDOOR LCD. 2. To view the Minimum/Maximum temperature: first select which remote temperature sensor to read data from (indicated by the “boxed”... - Page 19 The remote temperature sensor can be mounted in two ways: • with the use of screws, or • using the adhesive tape. A. MOUNTING WITH SCREWS 1) Remove the mounting bracket from the remote temperature sensor. 2) Place the mounting bracket over the desired location. Through the three screw holes of the bracket, mark the mounting surface with a pencil.
- Page 20 The indoor temperature station can be mounted in two ways: • with the table stand or • on the wall with the use of a wall hanging screw (not included). A. USING THE TABLE STAND 1) The indoor temperature station comes with the table stand already mounted.
-
Page 21: Troubleshooting
Problem: No reception of WWVB time signal. Solution: 1) Wait overnight for signal. 2) Be sure indoor weather station is at least 6 feet from any electrical devices such as televisions, computers or other radio-controlled clocks. 3) Remove batteries for five minutes, reinsert and leave the unit alone overnight without pressing buttons. -
Page 22: Maintenance & Care
• Extreme temperatures, vibration and shock should be avoided to prevent damage to the units. • Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents. They may mark the displays and casings. • Do not submerge in water. -
Page 23: Specifications
Temperature measuring range: Indoor: Outdoor: Indoor relative humidity measuring range: Indoor temperature checking interval: Indoor humidity checking interval: Outdoor temperature checking interval (Remote Temperature Sensor): Outdoor temperature reception (Indoor Weather Station): Transmission Range: Power Supply: Indoor Weather Station: Remote Temperature Sensor: Battery life cycle: Recommended battery type: Dimensions (L x W x H) -
Page 24: Warranty Information
La Crosse Technology provides a 1-year warranty on this indoor weather station. Contact La Crosse Technology immediately upon discovery of any defects covered by this warranty. Before sending the indoor weather station in for repairs, contact La Crosse Technology. The indoor weather station will be repaired or replaced with the same or similar model. - Page 25 FCC ID: OMO-01RX (Receiver), OMO-01TX (transmitter) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND THIS DEVICE MUST ACCEPT INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. All rights reserved.
