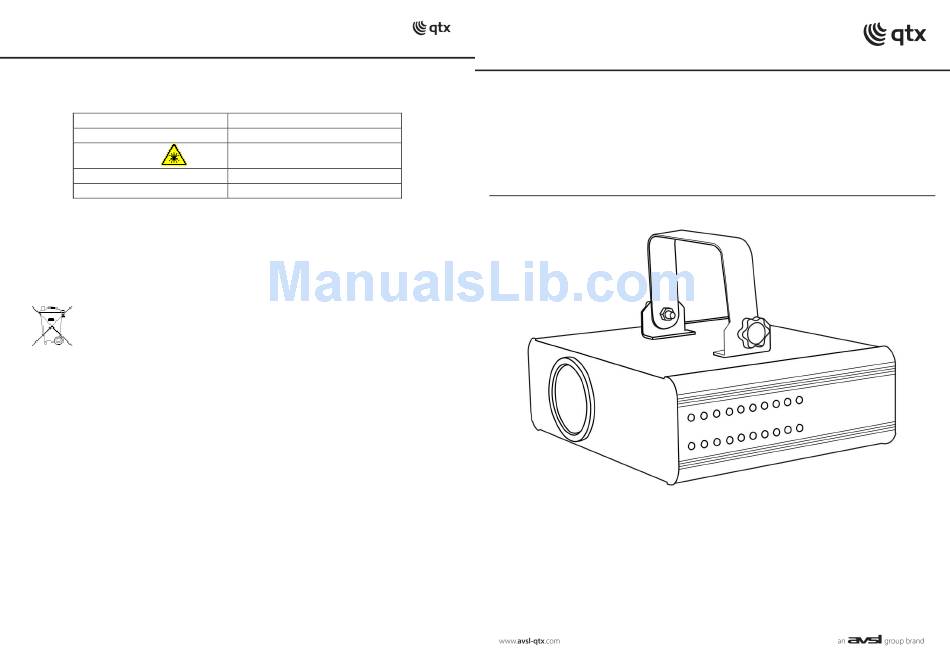

TECHNICAL SPECIFICATION
Voltage : 230Vac, 50/60Hz
Fuse : 2A Slow blow
Laser Class : 3B
Red Laser: 100mW 638nm
Green Power : 50mW 532nm
IMPORTANT NOTE: This product conformed to Laser & LED Safety standard
BSEN60825-1 2007 incorporating corrigendum 2008
DISPOSAL:
Please disposal of the unserviceable device according to the current statutory requirement
Errors and omissions excepted.
Copyright© 2012. AVSL Group Ltd.
Blue : 300mW 455nm
Dmx Channels : 10
Dimensions : 220 x 176 x 99mm
Power Consumption : 45W
Weight : 1.6kg
152.760UK User Manual
IMPORTANT SAFETY NOTICE
Please Read this manual before operating
VERSION 1.0
3D SPIRO 2.0
RGB LASER
Order ref: 152.760UK
User Manual
Advertisement
Table of Contents
Related Manuals for Qtx 3D SPIRO 2.0
Summary of Contents for Qtx 3D SPIRO 2.0
- Page 1 TECHNICAL SPECIFICATION 3D SPIRO 2.0 Voltage : 230Vac, 50/60Hz Blue : 300mW 455nm RGB LASER Fuse : 2A Slow blow DMX Channels : 10 Order ref: 152.760UK Dimensions : 220 x 176 x 99mm Laser Class : 3B User Manual...
- Page 2 DMX CHANNEL DESCRIPTION VALUE 000-010 Blackout 011-062 Sound to light 1 (Mode) 063-125 Auto Mode 126-189 DMX 512 Mode 1 190-255 DMX 512 Mode 2 000-255 Laser Pattern select (when CH1 in DMX mode 1) 2 (Pattern Select) 000-255 Laser Pattern select (when CH1 in DMX mode 2) No rotation 001-120 Adjust position...
- Page 3 Only use a shielded twisted-pair cable designed for 3-pin XLR- Thank you for purchasing this 3D Spiro 2.0 laser. plugs and connectors in order to connect the controller with the fixture or one fixture with another.
- Page 4 OPERATION FOR SPIRO 2.0 CAUTION • Please read this manual fully before installing or operating this product as it contains important safety information relating to its installation and operation. Press the “FUNC” button to enter setup mode followed by the “UP” & “DOWN” keys to select the mode you desire.
- Page 5 IMPORTANT INFOMATION: REAR PANAL SPIRO 2.0: This product is a Class 3B laser and should only be installed and used by personal who are trained in the management of laser radiation and are able to operate in accordance within the guidance given by the Health and Safety Executive (HSE) in HS(G)95: “The Radiation Safety of Lasers used for Display purposes”.
- Page 6 VERTICAL BIRDS EYE VIEW: LAYOUT SPIRO 2.0: 1. Mounting bracket 2. Thumb screw 3. Laser Aperture 152.760UK User Manual 152.760UK User Manual...
- Page 7 TROUBLESHOOTING VERTICAL CROSS SECTIONAL VIEW: If the unit is not functioning properly Check that the IEC cable is connected properly Check that the mains power switch is on. Check the fuse hasn’t blown (see below guide) Check that the unit isn’t in DMX mode. Check the safety key is turned to the on position.
- Page 8 CONNECT WITH POWER SUPPLY – THE GROUND WIRE MUST BE PACKAGE CONTENTS: CONNECTED: Please check the contents to ensure that the product has been received in good condition. Use the supplied IEC lead to connect to the main power supply as follows: Laser x 1unit User’s Guide x 1pc Wire...
