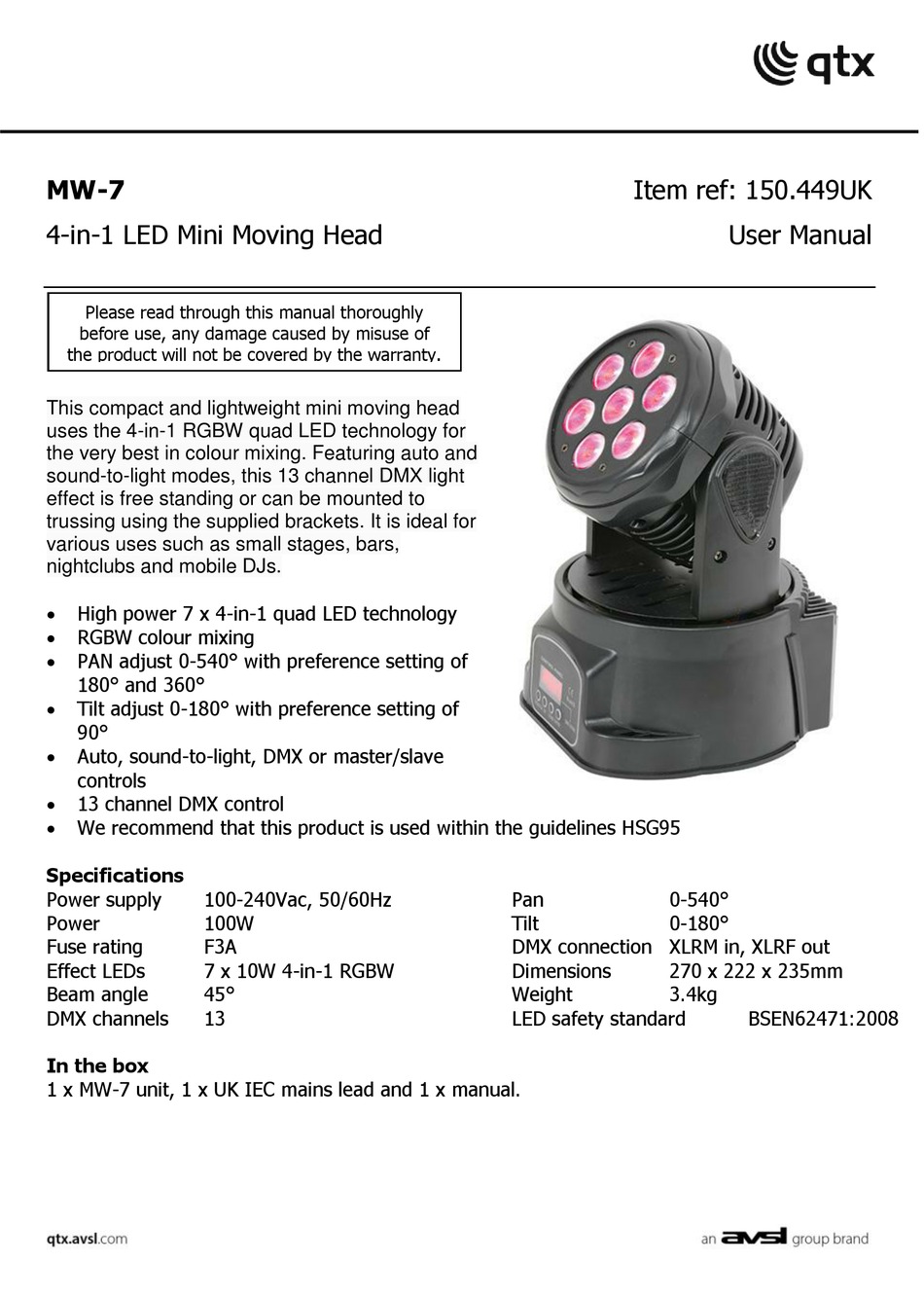

Qtx MW-7 User Manual

MW-7
4-in-1 LED Mini Moving Head
Please read through this manual thoroughly
before use, any damage caused by misuse of
the product will not be covered by the warranty.
This compact and lightweight mini moving head
uses the 4-in-1 RGBW quad LED technology for
the very best in colour mixing. Featuring auto and
sound-to-light modes, this 13 channel DMX light
effect is free standing or can be mounted to
trussing using the supplied brackets. It is ideal for
various uses such as small stages, bars,
nightclubs and mobile DJs.
 High power 7 x 4-in-1 quad LED technology
 RGBW colour mixing

PAN adjust 0-540° with preference setting of
180° and 360°
 Tilt adjust 0-180° with preference setting of
90°
 Auto, sound-to-light, DMX or master/slave
controls
 13 channel DMX control
 We recommend that this product is used within the guidelines HSG95

Specifications

Power supply 100-240Vac, 50/60Hz
Power 100W
Fuse rating F3A
Effect LEDs 7 x 10W 4-in-1 RGBW
Beam angle 45°
DMX channels 13
In the box
1 x MW-7 unit, 1 x UK IEC mains lead and 1 x manual.
Item ref: 150.449UK
Pan 0-540°
Tilt 0-180°
DMX connection XLRM in, XLRF out
Dimensions 270 x 222 x 235mm
Weight 3.4kg
LED safety standard

User Manual

BSEN62471:2008
