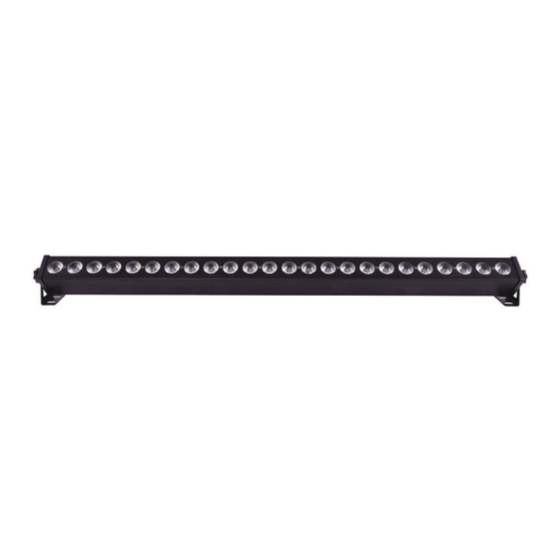

- Page 1 C-BAR HIGH POWER RGB LED BAR Item ref: 151.592UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
- Page 2 Introduction Thank you for choosing the C-BAR high power RGB LED light wash and effects bar. This unit is designed to give dynamic colour wash and up-lighting effects for venues and special events. Colours and sequences are controllable from DMX512 or internal auto and sound programs. Please read and keep the following instructions for future reference.
- Page 3 Master/slave operation As shown in the Internal settings above, a C-BAR fixture which is set to Master mode () may be connected via DMX lead to control further C-BAR units by setting subsequent units to one of 2 slave modes (...
- Page 4 008-022 Colour chase 01 023-037 Colour chase 02 When the display shows “ ”, this means that the C-BAR 038-052 Colour chase 03 is operated starting from DMX address 1. 053-067 Colour chase 04 When the display shows “...
- Page 5 DMX 14 channel mode Channel Value Function 0-255 Master dimmer 0-255 Strobe 0-255 Red 0-100% Section 1 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Auto program 0-255 Master dimmer 0-255 Strobe 0-255 Red 0-100% Section 2 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Auto program...
- Page 6 DMX 50 channel mode Channel Value Function 0-255 Master dimmer 0-255 Strobe 0-255 Red 0-100% Section 1 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Auto program 0-255 Master dimmer 0-255 Strobe 0-255 Red 0-100% Section 2 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Auto program...
- Page 7 Specifications Power supply 110-240Vac, 50/60Hz (IEC) Power consumption Fuse F3AL LED : type 3W RGB 3-in-1 COB LED : quantity Modes DMX, auto, sound-activated, master/slave Sections 8 (3 LEDs per section) DMX channels 3, 6, 24 or 28 Effects Strobe, pulse, gradual fade, cycle, sequence, sound activated, static colour Dimensions 1020 x 65 x 65mm Weight...
