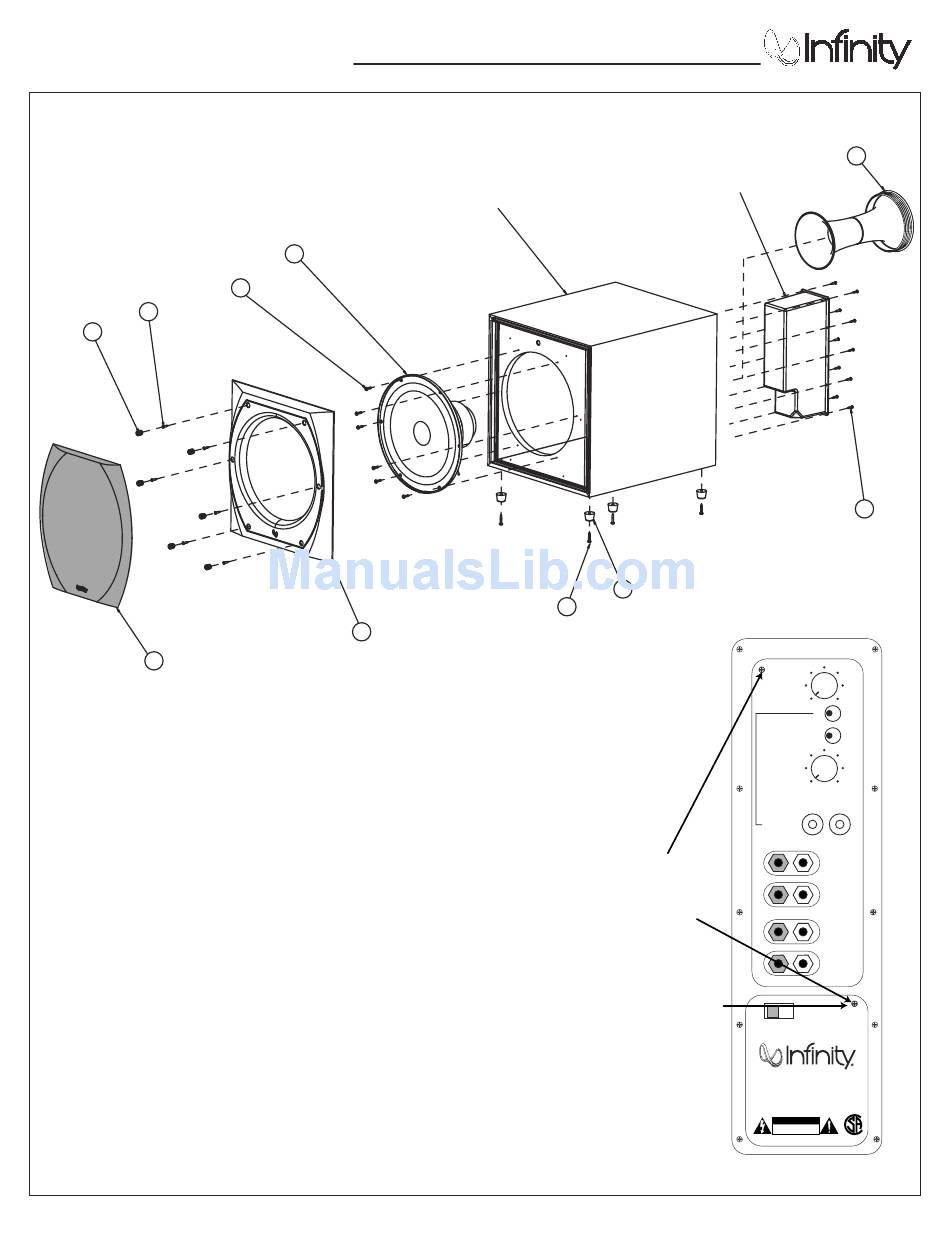

Exploded View/Service Access - Infinity ENTRA SUB TWO Service Manual

Entra Two Subwoofer
6X 8
6X
3
4
TO SERVICE THE ENTRA SUB TWO
1) Remove the grille.
2) Extract (6) rubber grille retainers as shown in the illustration
above; this can be accomplished by carefully pulling them out of
the cavities with long-nosed pliers or similar tool.
3) Remove the (6) Phillips screws that are now exposed.
4) Remove the front baffle.
5) Remove the (6) screws that secure the driver.
6) To service the amplifier, remove the (10) Phillips screws at the
rear of the enclosure, and pull the amplifier out of the back.
Remove the two Phillips screws as indicated in FIGURE A to
remove the rear cover.
2
6X
10
5
Cabinet
(Not for sale)
6
9 4X
REMOVE THESE TWO SCREWS
TO REMOVE REAR COVER
AND ACCESS AMPLIFIER
LONGER SCREW HERE
9
Amplifier
(Not for sale)
4X
LEVEL
Min
PHASE
CROSSOVER
FREQUENCY
50Hz
L
LINE LEVEL IN
For LFE use L or R
+ –
ON OFF
POWER
Entra Sub Two
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Figure A
¤
7
8 10X
Max
LFE NORMAL
0º 180º
150Hz
R
L
HIGH
LEVEL
IN
R
L
HIGH
LEVEL
OUT
R
120V
60Hz
