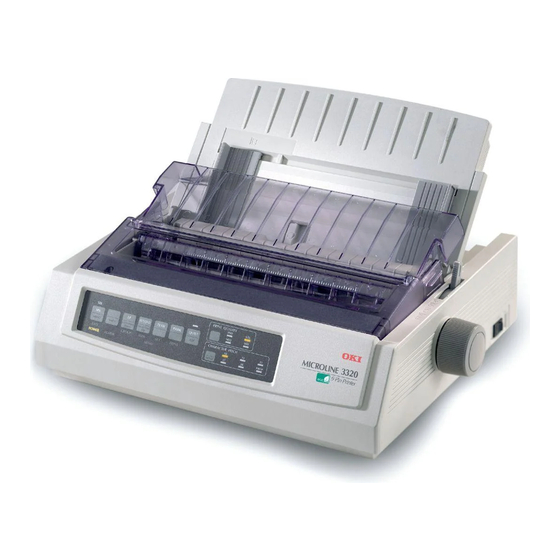

Oki MICROLINE 3320 Maintenance Manual
Hide thumbs
Also See for MICROLINE 3320:
- Maintenance manual (155 pages) ,
- Maintenance manual (123 pages) ,
- User manual (156 pages)
Related Manuals for Oki MICROLINE 3320
Summary of Contents for Oki MICROLINE 3320
-
Page 1: Maintenance Manual

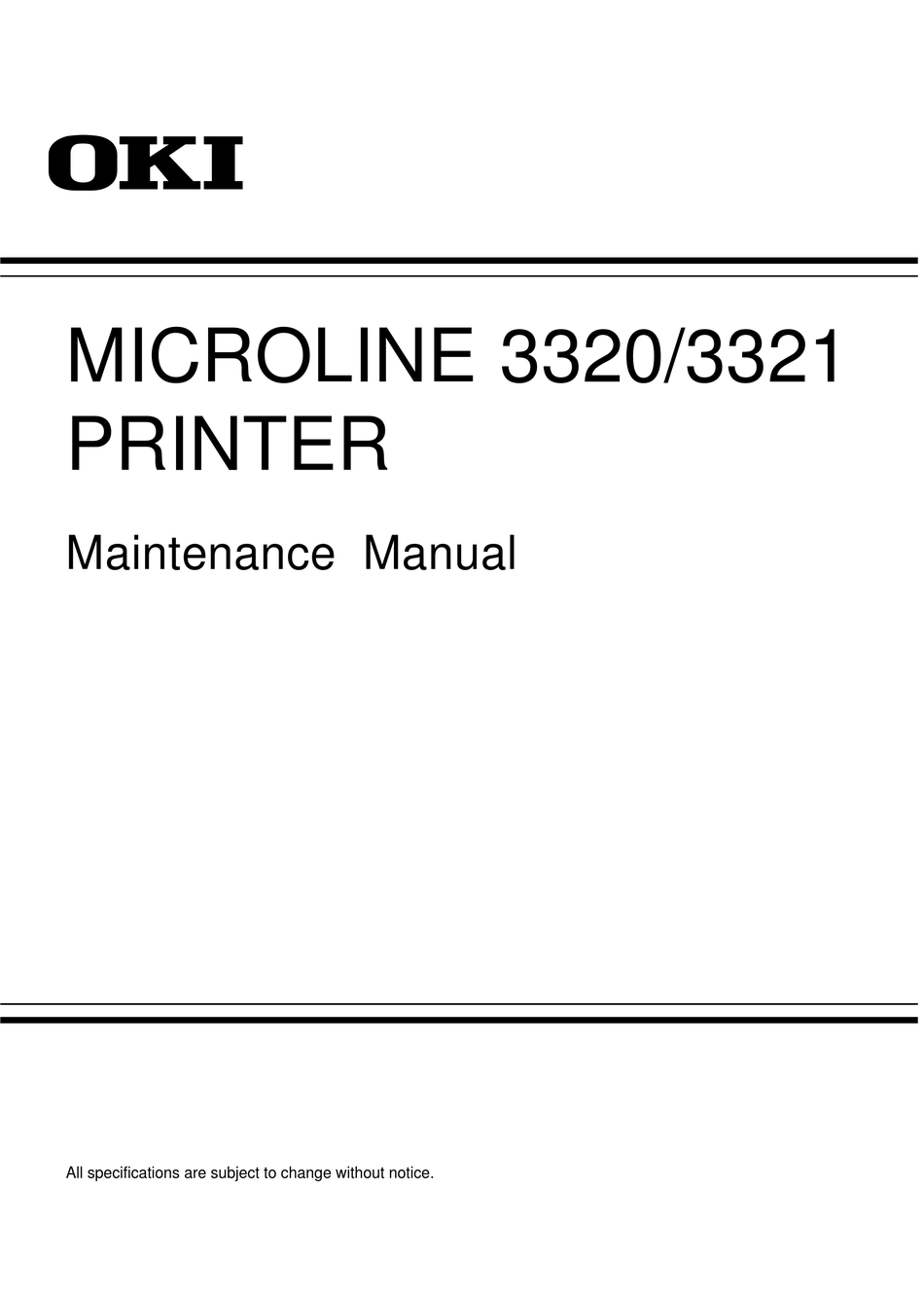

¡ MICROLINE 3320/3321 PRINTER Maintenance Manual All specifications are subject to change without notice. - Page 2 Figure 11-1 Upper Cover Assy B – 2...
- Page 3 Figure 11-1 Upper Cover Assy Q'ty Part No. Description Q'ty Remarks Required 1PP4128-1186P6 Upper cover (N) For ML3320 For INT 1PP4128-1186P4 Upper cover (N) For ML3320 For OEL 1PP4128-1186P2 Upper cover (N) For ML3320 For ODA 1PP4128-1231P6 Upper cover (W) For ML3321 For INT 1PP4128-1231P4 Upper cover (W)
- Page 4 Figure 11-2 Printer General Assy B – 4...
- Page 5 Figure 11-2 Printer General Assy Q'ty Part No. Description Q'ty Remarks Required 2PP4025-2871P21 Platen Knob 4YA4042-1543G301 Control/power supply For ODA board (SDCT) 4YA4042-1543G302 Control/power supply For OEL board (SDCT) 4YA4042-1543G303 Control/power supply For INT board (SDCT) 4YA4042-1549G1 Driver board (SDDV) 4YA4042-1516G3 Operator panel board (LEOP-3)
- Page 6 Figure 11-3 Printer Unit B – 6...
- Page 7 Figure 11-3 Printer Unit Q'ty Part No. Description Q'ty Remarks Required 3PA4044-5002G2 Main chassis assy (N) For ML3320 3PA4044-5152G2 Main chassis assy (W) For ML3321 3PP4044-5012P1 Bottom paper end lever 4PP4044-5019P2 Pressure spring (F) For ML3320 4PP4044-5019P1 Pressure spring (F) For ML3321 4PP4044-5031P2 Roller holder (F)
- Page 8 Q'ty Part No. Description Q'ty Remarks Required 3PA4044-5025G2 Platen assy (N) For ML3320 3PA4044-5159G2 Platen assy (W) For ML3321 3PP4044-5010P1 Space rack gear (N) For ML3320 3PP4044-5156P1 Space rack gear (W) For ML3321 4PB4025-3377P2 Tension spring for space rack 3PP4044-5008P1 Guide rail plate (N) For ML3320 3PP4044-5155P1...
- Page 9 Figure 11-4 Carriage Assy B – 9...
- Page 10 Figure 11-4 Carriage Option Assy Q'ty Part No. Description Q'ty Remarks Required 4PP4044-5061G1 Carriage frame set 4PA4025-3718G1 Back up roller holder assy 4PP4025-3398P1 Guide roller 3PP4044-5065P1 Guide roller holder 4YA4044-5100G1 Space motor assy 3PB4044-5506P1 Head cable (9N) For ML3320 3PB4044-5507P1 Head cable (9W) For ML3321 3PB4044-5125P1...
- Page 11 [Pull-Tractor] [Bottom-Tractor] [I/F Board] Figure 11-5 Option Spare Parts B – 11...
- Page 12 Figure 11-5 Option Spare Parts Q'ty Part No. Description Q'ty Remarks Required 4PA4025-3608G1 Pull and bottom tractor assy (L) 4PA4025-3603G1 Pull and bottom tractor assy (R) 2PP4128-1239G1 Tractor cover assy (N) For ML3320 2PP4128-1243G1 Tractor cover assy (W) For ML3321 1PA4128-1277G1 Bottom push stand (L) 1PA4128-1277G2...
