MICROLINE
320/321 TURBO
Printer Handbook

Advertisement

Table of Contents
loading

Related Manuals for Oki MICROLINE 320 Turbo

Summary of Contents for Oki MICROLINE 320 Turbo

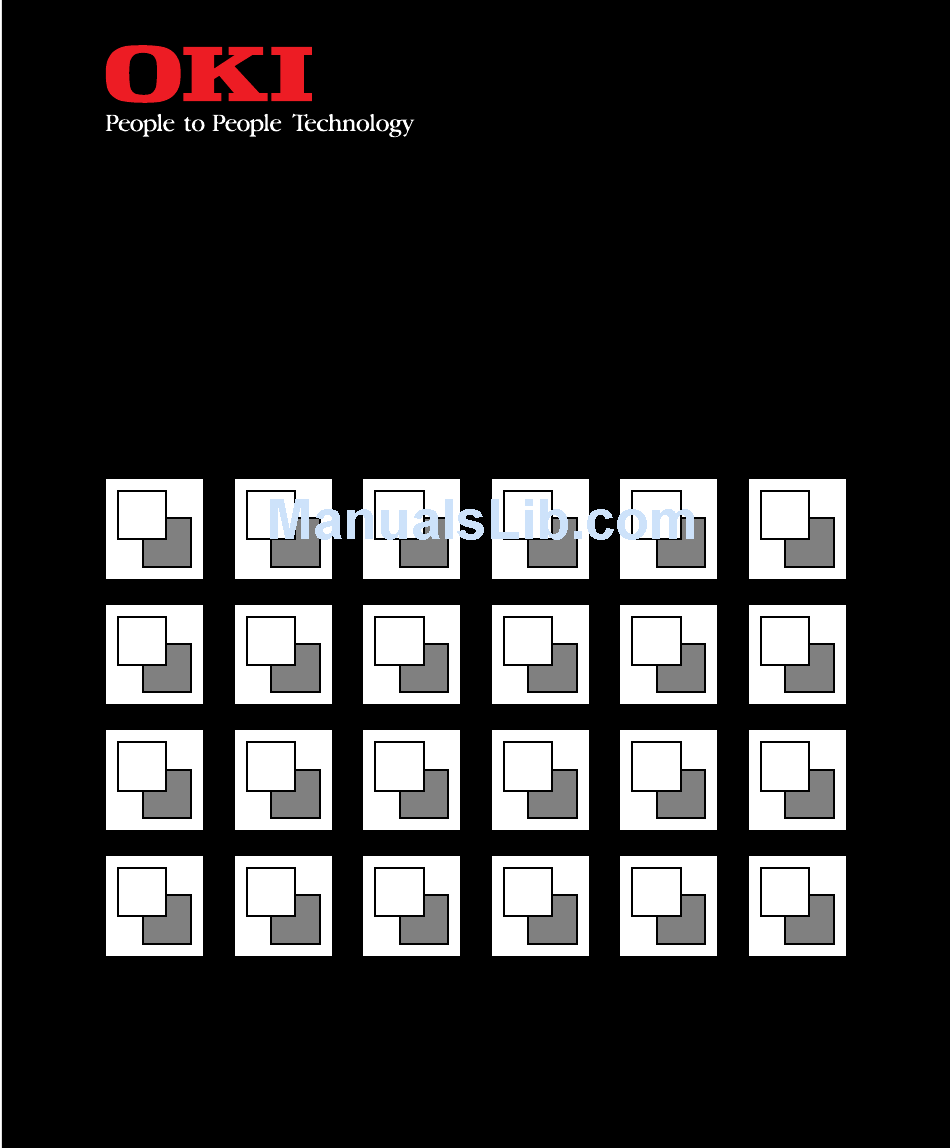

  • Page 1 MICROLINE 320/321 TURBO Printer Handbook...
  • Page 2 Every effort has been made to ensure that the information in this document is com- plete, accurate and up-to-date. OKI assumes no responsibility for the results of errors beyond its control. OKI also cannot guarantee that changes in software and equip- ment made by other manufacturers, and referred to in this handbook, will not affect the applicability of the information in this manual.

  • Page 3: Important Safety Instructions

    Important Safety Instructions Your OKI printer has been carefully designed to give you years of safe, reliable per- formance. As with all electrical equipment, however, there are a few basic precau- tions you should take to avoid hurting yourself or damaging the unit: •...
  • Page 4 • If you’re using an extension cord or power strip with the printer, make sure that the total of the amperes required by all the equipment on the extension is less than the extension’s rating. Generally, the total ratings of all equipment plugged into any one power line should not exceed 15 amperes.

  • Page 5: Table Of Contents

    ontents Introduction ......................1 Chapter 1: Installation ................... 3 Unpacking ........................3 Removing Shipping Retainers ................4 Installing Ribbon Cartridge ..................5 Making Connections ....................6 Connection with Computer ................6 Connection with Power ................... 8 Chapter 2: Loading Paper ..................9 Loading Single-Sheet Paper ..................11 Loading Rear-Feed Paper ..................14 Paper Handling ......................
  • Page 6 Appendix A: Specifications ................65 Appendix B: Menu Selections ................69 Explanation of Menu Items ..................72 Appendix C: Printer Commands ............... 79 IBM Proprinter Printer Commands ............... 79 Epson FX Printer Commands ................. 83 OKI Microline (ML) Printer Commands ............... 87...
  • Page 7 Appendix D: ASCII Character Codes ............... 91 Lower ASCII Character Sets ................... 91 Upper ASCII Character Sets ................... 95 Epson International Character Substitutions ............99 IBM International Character Substitutions ............100 MICROLINE International Character Substitutions ......... 101 Code Page Character Sets ..................102 Appendix E: Interfacing ..................
  • Page 8 This Guide is arranged to help you get your new MICROLINE 320 Turbo or 321 Turbo printer set up and running quickly as well as providing you with more detailed infor- mation for future reference. Here’s how it’s organised: •...

  • Page 9: Introduction

    Introduction...

  • Page 10: Chapter 1: Installation

    hapter 1: Installation This chapter explains how to unpack and install your new printer. Unpacking Unpack your printer and make sure you have the following items. If you are missing any of these items, contact your dealer immediately for a replacement. •...

  • Page 11: Removing Shipping Retainers

    Removing Shipping Retainers 1. Open access cover by grasping tabs at either end and lifting. 2. Remove printhead shipping retainer Shipping retainer (leave cover open for installation of rib- bon). Installation...

  • Page 12: Installing Ribbon Cartridge

    knob Paper separator 3. Hold the knob and remove the paper separator. ”∆”mark 4. Remove the protective material. Paper separator Protictive material 5. Set and attach the post to the“∆”mark ”∆”mark of the upper cover and the paper sepa- rator. Protictive material 6.

  • Page 13: Making Connections

    Knob specifically for use with MICROLINE 100’, 320 series. Headgap lever For best results, use genuine OKI ribbons. Making Connections Connection with Computer There instructions are for the standard parallel interface. Instructions for installa- tion/connection of a serial interface are included with the serial interface accessory.
  • Page 14 Pin assignments for both the parallel and the serial interfaces are listed in appendix E. You must supply the cable for connecting your printer to your computer. 1. Make sure both printer and computer are OFF. 2. Locate interface port on back of printer. Interface port 3.

  • Page 15: Connection With Power

    Connection with Power 1. Make sure both printer and computer are OFF. 2. Plug power cord into back of printer. Plug other end into grounded outlet. Power cord Socket 3. Turn printer on. Printhead will cross back and forth along platen, and POWER light will come on.

  • Page 16: Chapter 2: Loading Paper

    hapter 2: Loading Paper Your printer has provision for single-sheet paper feed from the top and for continu- ous-form paper feed from the rear. You can also install options: the Cut Sheet Feeder, which holds a stack of 100 sheets for feeding from the top and the Push and/or Pull Tractors for feeding continuous-form labels, heavy card stock or multi-part forms from the bottom.
  • Page 17 Bottom feed (continuous forms only, thickness to 0.017” [0.44mm]) • Single-part continuous forms – 12 to 24 lb – Minimum 3” wide • Carbonless, multi-part forms – Original, plus 4 copies – 9 to 11 lb – Minimum 3” wide •...

  • Page 18: Loading Single-Sheet Paper

    Loading Single-Sheet Paper The single-sheet paper path is best for letterhead stationery, memos, and envelopes. We also recommend it for printing graphs and charts because it provides the most accurate control of the paper. To load in single sheets of paper: If you have any continuous-form paper in the paper path, you must press the PARK button on the front panel to remove it from the path before lading single sheets.
  • Page 19 3. Grasp back of paper separator and un- Paper Wire feed snap it from housing, then swing it up separator guide into single-sheet feed position, making sure that wire feed guide is nestled in separator. Paper feed 4. Adjust paper feed guides for width of guides paper and drop sheet of paper into separator.
  • Page 20 5. Baseline for Top of Form (TOF) on pa- Baseline per is indicated by red line on clear plas- tic paper shield. 6. If desired, change TOF setting using Press to feed control panel: paper down in Hold micro increments to set TOF further down on page, hold SHIFT button while pressing FF/ FF/LOAD...

  • Page 21: Loading Rear-Feed Paper

    Loading Rear-Feed Paper The rear-feed paper path is recommended for single-thickness, continuous fan-fold paper when printing spreadsheets, long reports, etc. For graphics or charts, it’s best to use the single-sheet paper path. To load continuous-form paper from the rear: 1. If you have paper in paper path, be sure to remove it before installing rear-feed paper.
  • Page 22 4. Locate tractors. Tractors 5. Pull up on lock levers to release trac- tors and swing open tractor covers. Po- Lock lever Tractor cover sition right-hand tractor for width of paper you’re loading. The movement of the left tractor is limited to ensure that the paper will always contact the paper sen- sor when loaded.
  • Page 23 7. Close tractor covers and adjust left trac- tor to position edge of paper: reference marks on printer indicate left edge po- sition for the two most common paper sizes. When paper is properly aligned, lock left tractor in place by pushing back on lock lever.
  • Page 24 11. Baseline for top of Form(TOF) on pa- Baseline per is indicated by red line on clear plas- tic paper shield. 12.If desired, change TOF setting using Press to hold the Press to bring control panel: paper before the paper down releasing the TEAR to the print If form tear off is being selected in the...
  • Page 25 13.Press SEL button (SEL light will come on). MENU EXIT POWER To temporarily change the Top of Form setting for a particular print job, deselect the printer and press Micro Feed the LF button until you reach the Down TOF position you want to use. The GROUP printer will retain this setting un- til you turn it off.

  • Page 26: Paper Handling

    Paper Handling Your printer has several handy paper handling features: • Tear • Form Tear-off • Paper Park Tear Feature When you’re using continuous forms with either the built-in rear-feed tractor or the optional bottom-feed push tractor, you can use this feature to advance the forms up to the tear position so you can easily tear off a printed sheet without wasting paper or readjusting the printer.

  • Page 27: Forms Tear-Off Feature

    Forms Tear-off Feature Caution! Do not engage Forms Tear-off when printing on labels! The Forms Tear-off feature can be engaged to automatically move the paper up to the tear position after the selected interval (500 milliseconds, one second, or two seconds). The page will stay in the tear-off position until the printer receives data.

  • Page 28: Switching Paper Paths

    Switching Paper Paths To switch from continuous-form feed from the rear or bottom (optional push or pull tractor installed) of the printer to single-sheet feed from the top: 1. Tear off printed pages. 2. Press PARK button. 3. Swing wire guide up into paper separator, then pivot separator to upright posi- tion.
  • Page 29 Loading Paper...

  • Page 30: Chapter 3: Operation

    hapter 3: Operation This chapter explains how to operate your printer. It also provides instructions on how to change the default settings and how to perform basic tasks, including select- ing typeface/print quality, selecting character pitch, testing your printer, and reset- ting Top of Form to the factory default.
  • Page 31 FF/LOAD TEAR PARK QUIET Micro Feed Micro Feed MENU SHIFT Down EXIT GROUP ITEM PRINT POWER ALARM MENU The seven buttons to the left on your control panel are multi-function buttons. In routine printer operation, they are used to manipulate the paper, but you can also use them to enter and make changes in the printer’s program menu.

  • Page 32: Print Mode

    Print Mode In its normal operating state, your printer’s front panel is in the Print Mode. Indicator Lights In the Print Mode, your printer has the following lights to indicate its status: PRINT QUALITY FF/LOAD TEAR PARK QUIET Micro Feed Micro Feed MENU SHIFT...

  • Page 33: Buttons

    Buttons FF/LOAD PARK QUIET TEAR Micro Feed Micro Feed MENU SHIFT Down EXIT GROUP ITEM PRINT POWER ALARM MENU When the printer is selected (SEL light on), only the functions marked at the top of the bank of buttons (LF, FF/LOAD, TEAR, PARK, QUIET) are in effect. When the printer is deselected (SEL light off), the functions marked at the bottom of the buttons (Micro Feed Down, Micro Feed Up, TOF) can be accessed by means of the SHIFT button.
  • Page 34 Summary of Front Panel Button Functions Button Print Mode Menu Mode Help on Power Up With CSF Installed Selects/deselects printer. Activates Menu Same as Print Resets Paper Resets Paper Out of Paper Mode. Mode Out Alarm. Jam Alarm. Also ends Font Test or Rolling ASCII test .
  • Page 35 Button Print Mode Menu Mode Help on Power Up With CSF Installed TEAR+ Move the print head to Re- Move the print Goes back to SHIFT verse. head to Reverse. previous Value in Menu. PARK Parks continuous-form pa- Ejects paper. Prints list of all per.
  • Page 36 Button Print Mode Menu Mode Help on Power Up With CSF Installed SEL+LF Resets Menu to factory default. QUIET+ Resets Top of PARK Form to factory default. SEL+ Activates hex FF/LOAD dump mode. N/A : Not applicable. ML320/321 Turbo Printer Handbook...

  • Page 37: Menu Mode

    Menu Mode When your printer is in the Menu Mode, you can use the front panel controls to change the defaults for the printer parameters, including emulation, page length, line spac- ing, typeface, pitch, etc. For example, you might want to change the page length to 14 inches if you’re printing on legal-size documents, or to 3 inches if you’re printing on labels or small cards.

  • Page 38: Sample Menu

    Sample Menu The menu is made up of groups of parameters. Within each group is a list of items and each of those items has several possible settings. Here’s a sample Menu printout. The first column lists the groups; the second, items; the third, settings: ML320/321 Turbo Printer Handbook...

  • Page 39: Summary Of Menu Settings

    Summary of Menu Settings The table below details the entries in the printer Menu as it comes from the factory. The defaults are in bold face italic type. Other entries will appear in the Menu depending on what options you have installed and what emulation is engaged.
  • Page 40 Group Item Setting Bottom Feed Line Spacing 6 LPI, 8 LPI Form Tear-Off Off, 500 ms, 1 sec, 2 sec Skip Over Perforation No, Yes Page Width * 13.6", 8" Page Length 11", 11 ", 12", 14", 17", 3", 3.5", 4", 5.5", 6", 7", 8", 8.5"...
  • Page 41 Group Item Setting Parallel I/F I-Prime Buffer Print, Buffer Clear, Invalid Pin 18 +5V, Open Auto Feed XT * Invalid, Valid EPSON mode Only Operation...

  • Page 42: Menu Mode Indicator Lights

    Menu Mode Indicator Lights In the Menu Mode, the following lights indicate your printer’s status: PRINT QUALITY FF/LOAD TEAR PARK QUIET Micro Feed Micro Feed MENU SHIFT CHARACTER PITCH Down EXIT GROUP ITEM PRINT PROP POWER ALARM MENU RESET 1. POWER light: Glows when printer is on. 2.

  • Page 43: Resetting Menu To Factory Defaults

    Here is a summary of the buttons active in the Menu Mode: 1. GROUP button: Press to scan through groups of listings. Each time you press the GROUP button, a line will print, showing the next group in the Menu. To go back one group, hold the SHIFT button while pressing the GROUP button.

  • Page 44: Performing Basic Tasks

    Performing Basic Tasks Selecting Print Quality PRINT QUALITY Print quality button Your printer allows you to select from four print qualities: utility, near letter quality (NLQ), high speed draft (HSD) and super speed draft (SSD). Utility printing, in Gothic, is the default, designed for preparing rough drafts or internal correspondence. NLQ printing, in Courier or Gothic (depending on MENU setting), gives you sharp, crisp characters for correspondence and important final documents that require a polished appearance.

  • Page 45: Selecting Character Pitch

    Selecting Character Pitch CHARACTER PITCH PROP RESET Character Pitch button The character pitch determines the width of the individual characters and is mea- sured in characters per inch (cpi). To select the character pitch, press the CHARAC- TER PITCH button successively until the light underneath the pitch you wish to en- gage is lit.

  • Page 46: Testing Your Printer

    The table below summarizes the fonts available from your printer: Typeface Spacing NLQ Courier 10 cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, Proportional NLQ Letter Gothic 10 cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, Proportional Utility (Gothic) 10 cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi, Proportional High Speed Draft (Gothic) 10 cpi, 12 cpi, 15 cpi, 17 cpi, 20 cpi...
  • Page 47 To run the Font Test: 1. Be sure paper is loaded. 2. Turn off printer. 3. Hold LF button for several seconds while turning printer on. (IF printer simply turns on without starting to print, you didn’t hold down LF button long enough.) Rolling ASCII Test The Rolling ASCII Test produces a continuous printout of all ASCII characters.
  • Page 48 To activate the Rolling ASCII Test: 1. Be sure paper is loaded. Caution! For wide carriage Model 321 Turbo, be sure you have wide paper loaded! 2. Turn off printer. 3. Hold QUIET button for several seconds while turning printer on. (If printer sim- ply turns on without starting to print, you didn’t hold down QUIET button long enough.) Hexadecimal Dump Test...

  • Page 49: Resetting Top Of Form

    To engage the Hexadecimal Dump Mode: 1. Be sure paper is loaded. 2. Turn off printer. 3. Hold SEL and FF/LOAD buttons for several seconds while turning on printer. The printer will print the line “Hex Data Dump” and be ready to receive data in the Hexadecimal Dump Mode.
  • Page 50 You will find a list of the bar code printer commands for each emulation in appendix Here is a brief explanation of each of the available bar codes, along with a sample printout for each one. UPC A Bar Code UPC (Universal Product Code) bar coding is used in the supermarket industry.
  • Page 51 EAN 8 EAN (European Article Numbering) bar coding is a variation of UPC coding. EAN 8 encodes eight digits. EAN 13 EAN 13 encodes 13 digits and contains the same number of bars as UPC A. The thir- teenth digit combined with the twelfth digit provides a code representing a country. Code 39 Also known as 3 of 9 Code, code 39 is used in non-retail applications.
  • Page 52 Code 128 Code 128 has 106 different characters, each of which can have any one of three differ- ent meanings depending on which code set (A, B, or C) is engaged. A special code at the beginning indicates which set is engaged: three shift codes are also available for use within the bar code to indicate a change in the code set engaged, as required.
  • Page 53 Operation...

  • Page 54: Chapter 4: Working With Software

    hapter 4: Working with Software This chapter covers the fundamentals of setting up commercial software packages for use with your printer. Be sure to read your software documentation carefully for more details. Basic Terminology Before we start, let’s examine a few terms with which you may not be familiar. Printer Commands If you’re using commercial software with an appropriate printer driver (see “Printer Drivers”...

  • Page 55: Emulations

    Your printer has three emulations: • IBM Proprinter III (factory default) • Epson FX • Oki Microline Printer Drivers Most of the time, your printer will be controlled by standard commercial software packages such as Lotus ®...

  • Page 56: Compatible Printer Drivers

    IBM Proprinter Emulation Epson FX Emulation OKI ML Emulation Oki ML 520/1 Oki ML 520/1 Oki Microline 520/521...
  • Page 57 Working with Software...

  • Page 58: Chapter 5: Ploblem Solving, Maintenance, & Service

    hapter 5: Ploblem Solving, Maintenance, & Service This chapter provides solutions to some common printer problems and explains the routine maintenance procedures that will help keep your printer in tip-top operating condition. It also tells you how to order parts, consumables and accessories, and pro- vides information on obtaining service for your printer.
  • Page 59 …I’m getting strange symbols, incorrect fonts, etc., when I try to print a document? The printer driver you have engaged does not agree with the emulation selected for your printer. To check the emulation selected, first make sure paper is loaded, then press the SEL and SHIFT buttons simultaneously to enter the MENU on your printer.
  • Page 60 … the Alarm light is on and the Character Pitch 15 light is flashing? This indicates a paper loading error. To stop the flashing light, press the SEL button. Before trying to load paper in again, check to be sure that you have the paper lever in the correct position (BOT, TOP, REAR) for the path you’re using.

  • Page 61: Maintenance

    Replacing the Ribbon Cartridge When replacing the ribbon, be sure to use only ribbons specifically for use with MICROLINE 320 /321 Turbo printers. For best results,use genuine OKI ribbons. 1. Turn printer off. 2. Disengage and swing open access cover.
  • Page 62 3. Slide ribbon cartridge along until it is centered on platen, being careful not to Center touch printhead. printhead 4. Swing front-end of cartridge up off printhead, then lift cartridge out and discard it. Swing front end up to remove 5.
  • Page 63 7. Lower front end of cartridge over printhead until it snaps into place. Turn knob in direction of arrow (clock-wise) to take up any slack in ribbon. Knob Ploblem Solving, Maintenance, & Service...

  • Page 64: Clearing Paper Jams

    Clearing Paper Jams Caution! Always turn the printer off before you turn the platen knob! Rear Feed Jams To clear a rear-feed paper jam: 1. Turn off printer 2. Turn platen knob to back paper out of printer. Remove any ripped pieces of paper. 3.
  • Page 65 4. Open tractor covers and remove paper Tractor covers from printer. 5. Open access cover and lift off pull-up Remove pull-up roller assembly. roller assembly Note: Never attach or remove the pull-up roller assembly when the paper separator is in the standing state.
  • Page 66 10.Replace pull-up roller assembly. Replace pull-up roller assembly Note: When installing a pull-up roller assem- bly, Shift the paper lever in agreement with the “Rear” mark before the installation. 11. Reload regular paper (open tractor cov- ers, place paper on pins, close tractor covers).
  • Page 67 Single Sheet Feed Jams To remove jammed single sheets of paper (top feed): 1. Turn printer OFF. 2. Rotate platen knob to back paper out of carriage. 3. If necessary, open access cover and lift Lift off pull-up roller off pull-up roller assembly to provide assembly access to remove any ripped pieces from around carriage.

  • Page 68: Cleaning The Housing

    Cleaning the Housing You should clean the printer every six months (or after about 300 hours of operation). To do this: 1. Turn printer OFF and remove paper from path. 2. Open access cover and remove pull-up Remove pull-up roller roller assembly.

  • Page 69: Accessories

    Accessories You can add even more flexibility to your printer by means of the following optional accessories. Cut Sheet Feeder, Single-Bin and Dual-Bin Mounts on the platen to provide continu- ous single-sheet paper feed. The bin will hold up to 100 sheets of standard, 20-lb paper.
  • Page 70 Pull Tractor, Top-Mount Used for bottom-feed of labels or heavy card stock, or in conjunction with the rear- feed tractor to provide more precise pa- per control when you’re using multi-part forms. Includes cover for installation in place of access cover. Roll Paper Stand Adapts ML 320 Turbo printer for use with roll-type paper (not supplied).

  • Page 71: Replacement Parts

    Replacement Parts Replacement Part Access Cover, ML 320 Turbo Access Cover, ML 321 Turbo AC Cord Poll-up Roller Assembly, ML 320 Turbo Poll-up Roller Assembly, ML 321 Turbo Platen Knob Printhead Ribbon, Black Ploblem Solving, Maintenance, & Service...
  • Page 72 204 cpl 17.1 cpi 137 cpl 233 cpl 20 cpi 160 cpl 272 cpl Emulations Epson FX, IBM Proprinter, OKI Microline co-resident Interface Standard: Centronics parallel Optional: RS-232C serial Graphics Resolution: Epson/IBM Single Density: 60 x 216 dpi Emulations Double Density: 120 x 216 dpi...

  • Page 73: Appendix A: Specifications

    Resident Font Near Letter Quality Courier, Gothic Utility Gothic High Speed Draft Gothic Super Speed Draft Gothic Bar Code: Code 39, UPC A, UPC E, EAN 8, EAN 13, Inter- leaved 2 of 5, Code 128, Postnet Receive Buffer Size MAX 28K Reliability Mean Time Between...
  • Page 74 Paper Specifications Width Minimum 3” Maximum ML 320 Turbo: 10” ML 321 Turbo: 16” Weight 12 to 24 lb. Thickness Rear feed 0.014”(0.36 mm) Bottom feed 0.017”(0.44 mm) Paper type Feed Weight Width range Cut sheets Top only 14 to 24 lb. ML320Turbo: 7.2"...
  • Page 75 Dimensions (W x D x H) ML 320 Turbo: 15.7 x 13.6 x 4.6 inch (398 x 345 x 116 mm) ML 321 Turbo: 21.7 x 13.6 x 4.6 inch (552 x 345 x 116 mm) Weight ML 320 Turbo: 14 lb (6.5Kg) ML 321 Turbo: 19 lb (8.5Kg)

  • Page 76: Appendix B: Menu Selections

    ppendix B: Menu Selections The menu selections for your printer are summarized below. Factory defaults are indicated in bold face italic. Explanations for each item follow the table. The table below summarizes all possible menu settings available with your printer. Which of these you will actually see when you are working in the Menu depends on the active emulation and on the options installed.
  • Page 77 Group Item Setting Bottom Feed Line Spacing 6 LPI, 8 LPI Form Tear-Off Off, 500 ms, 1 sec, 2 sec Skip Over Perforation No, Yes Page Width * 13.6", 8" Page Length 11", 11 ", 12", 14", 17", 3", 3.5", 4", 5.5", 6", 7", 8", 8.5"...
  • Page 78 Group Item Setting Parallel I/F I-Prime Buffer Print, Buffer Clear, Invalid Pin 18 +5V, Open Auto Feed XT * Invalid, Valid Serial I/F * Parity None, Odd, Even Serial Data 7/8 Bits 8 Bits, 7 Bits Protocol Ready/Busy, X/On/X-Off Diagnostic Test No, Yes Busy Line SSD-, SSD+, DTR, RTS...

  • Page 79: Explanation Of Menu Items

    Explanation of Menu Items These explanations are in alphabetical sequence to make it easier to look them up. Many of the items will appear only with optional equipment installed, as noted be- low. You will find the items Line Spacing, Form Tear-Off, Skip Over Perforation and Page Length appearing several times in the menu (once for each paper path).
  • Page 80 Busy Line. Appears only if optional Serial Interface is installed. SSD- (factory de- fault), SSD+, DTR, RTS. If Ready / Busy protocol (factory default) is selected, you can choose which line your system monitors for a busy signal: SSD -9V, select SSD- SSD +9V, select SSD+ DTR -9V, select DTR RTS -9V, select RTS...
  • Page 81 Emulation Mode. IBM PPR (factory default), Epson FX, or ML. Selects the Printer com- mand set you want your printer to use: IBM Proprinter III, Epson FX, or OKI Microline. ESC SI Pitch. Designate the function of ESC SI command to 17 cpi setting (default) or 20 cpi setting.
  • Page 82 Page Length. 11” (factory default), 11 ”, 12”, 14”, 17”, 3”, 3.5”, 4”, 5.5”, 6”, 7”, 8”, 8.5”. Selects the length of the paper you’ll be using in your printer. This enables the printer to keep track of the initial printing position on each page (Top of Form). Page Length Control.
  • Page 83 Print Suppress Effective. Yes (factory default) or No. Enables/disables print sup- press command. The factory default enables the print suppress command: the printer will ignore all data it receives after it accepts the print suppress command. Change to No to cause your printer to ignore the print suppress command. Proportional Spacing.
  • Page 84 Style. Choose Normal (factory default) or Italics. Time Out Print. Valid (factory default) or Invalid. When printing, if the printer doesn’t receive any data, a line feed, or a form feed signal for awhile, it will automatically dump out what’s in the print buffer. If your software spends a long time prossing between feeding portions of data to the printer, you should change the setting to Invalid to keep your printer from inadvertently dumping the received data while it’s waiting for more.
  • Page 85 Appendix B: Menu Selections...

  • Page 86: Appendix C: Printer Commands

    C: Printer Commands This appendix contains a listing of the printer commands for the IBM proprinter, Epson FX, and OKI MICROLINE emulations, grouped by function. IBM Proprinter Printer Commands IBM Function ASCII Code Decimal Code Hexadecimal Code Bar Code Commands...
  • Page 87 IBM Function ASCII Code Decimal Code Hexadecimal Code Character Size/Spacing (cont.) Start Double Width Printing Line by Line End Double Width Printing Line by Line Double Width Printing ESC W 1 27 87 1 1B 57 1 Double Width Printing ESC W 0 27 87 0 1B 57 00...
  • Page 88 IBM Function ASCII Code Decimal Code Hexadecimal Code Graphics Single Density Graphics ESC K L [data] 27 75 L [data] 1B 4B L [data] Double Density Graphics ESC L L [data] 27 76 L [data] 1B 4C L [data] Double Speed/Double ESC Y L [data] 27 89 L...
  • Page 89 Id a Incremental print mode ESC i n 27 105 n 1B 69 n On, Off Software I-Prime * ESC } 0 27 125 0 1B 7D 00 Stop Printing ESC j 27 106 * OKI-Unique command Appendix C: Priner Commands...

  • Page 90: Epson Fx Printer Commands

    Epson FX Printer Commands Epson Function ASCII Code Decimal Code Hexadecimal Code Bar Code Commands Select Bar Code Type ESC DLE A m n … n 27 16 65 m n … n 1B 10 41 m n … n and Size * Print Bar Code Data * ESC DLE B m n [data]...
  • Page 91 Epson Function ASCII Code Decimal Code Hexadecimal Code Character Size/Spacing (cont.) Double Height Printing On ESC w n 27 119 n 1B 77 n Proportional Spacing On ESC p 1 27 112 1 1B 70 01 Proportional Spacing Off ESC p 0 27 112 0 1B 70 00 Set Intercharacter Spacing...
  • Page 92 Epson Function ASCII Code Decimal Code Hexadecimal Code Graphics (cont.) Graphics Select/Print ESC * m L [data] 27 42 m L [data] 1B 2A m L [data] Reassign Graphics ESC ? m n 27 63 m n 1B 3F m n Select 9-pin Graphics ESC ˆ...
  • Page 93 Center Justification ESC a 1 27 97 1 1B 61 01 Right Justification ESC a 2 27 97 2 1B 61 02 Within Line Justification ESC a 3 27 97 3 1B 61 03 * OKI-Unique Command Appendix C: Priner Commands...

  • Page 94: Oki Microline (Ml) Printer Commands

    OKI Microline (ML) Printer Commands Microline Function ASCII Code Decimal Code Hexadecimal Code Bar Code Commands Select Bar Code Type ESC DLE A m n … n 27 16 65 m n … n 1B 10 41 m n … n...
  • Page 95 Microline Function ASCII Code Decimal Code Hexadecimal Code Character Style HSD Print Mode On ESC # 0 27 35 48 1B 23 30 Select Utility Print Mode ESC 0 27 48 1B 30 Select NLQ Courier Font ESC 1 27 49 1B 31 Select NLQ Gothic Font ESC 3...
  • Page 96 Microline Function ASCII Code Decimal Code Hexadecimal Code Graphics (cont.) Graphics Mode Selection ESC * n 27 42 n 1B 2A n Graphics Print Mode Selection Horizontal Control Backspace Carriage Return Horizontal Tab Margin Setting, Left ESC % C n 27 37 67 n 1B 25 43 n Margin Setting, Right...
  • Page 97 Microline Function ASCII Code Decimal Code Hexadecimal Code Vertical Control (cont.) Perform " Line Feed ESC % 5 n 27 37 53 n 1B 25 35 n Reverse Line Feed ESC LF 27 10 1B 0A Set Line Spacing to "...

  • Page 98: Appendix D: Ascii Character Codes

    ppendix D: ASCII Character Codes Lower ASCII Character Sets Lower ASCII Character Sets (1/4) ML320/321 Turbo Printer Handbook...
  • Page 99 Lower ASCII Character Sets (2/4) Appendix D: ASCII Character Codes...
  • Page 100 Lower ASCII Character Sets (3/4) ML320/321 Turbo Printer Handbook...
  • Page 101 Lower ASCII Character Sets (4/4) Appendix D: ASCII Character Codes...

  • Page 102: Upper Ascii Character Sets

    Upper ASCII Character Sets Upper ASCII Character Sets (1/4) ML320/321 Turbo Printer Handbook...
  • Page 103 Upper ASCII Character Sets (2/4) Appendix D: ASCII Character Codes...
  • Page 104 Upper ASCII Character Sets (3/4) ML320/321 Turbo Printer Handbook...
  • Page 105 Upper ASCII Character Sets (4/4) Appendix D: ASCII Character Codes...

  • Page 106: Epson International Character Substitutions

    Epson International Character Substitutions ML320/321 Turbo Printer Handbook...

  • Page 107: Ibm International Character Substitutions

    IBM International Character Substitutions Appendix D: ASCII Character Codes...

  • Page 108: Microline International Character Substitutions

    MICROLINE International Character Substitutions ML320/321 Turbo Printer Handbook...

  • Page 109: Code Page Character Sets

    Code Page Character Sets The characters in the lower ASCII range (hexadecimal 00 through 7F, decimal 0 through 127) are the same as IBM Set 3. The characters for the upper ASCII range are given in the tables below. Code Page Character Sets (1/4) Appendix D: ASCII Character Codes...
  • Page 110 Code Page Character Sets (2/4) ML320/321 Turbo Printer Handbook...
  • Page 111 Code Page Character Sets (3/4) Appendix D: ASCII Character Codes...
  • Page 112 Code Page Character Sets (4/4) ML320/321 Turbo Printer Handbook...
  • Page 113 Appendix D: ASCII Character Codes...

  • Page 114: Appendix E: Interfacing

    ppendix E: Interfacing This appendix gives the pin assignments for the parallel interface. It also explains how to install the optional Serial Interface Board and gives the pin assignments for the serial interface. Pin Assignments for Parallel Interface Signals Signal Return Pin Direction Strobe...

  • Page 115: Installing The Serial Interface

    Installing the Serial Interface Caution! Handle the interface board with care to avoid damaging its components. The components can also be damaged by static discharges. We recommend that you leave the board in its protective packaging until you’ve read these instructions and are ready to install it.
  • Page 116 3. By inserting board to the far end, it is Board locked by the lock piece inside. Lock piece 4. Connect suitable interface cable (must be purchased separately) to printer con- nector and to serial port of your com- puter. Be sure to tighten screws on both ends of cable to keep it in place.

  • Page 117: Pin Assignments For Serial Interface Signals

    Pin Assignments for Serial Interface Signals Signal Symbol Direction Protective Ground Transmitted Data From Printer Received Data To Printer Request to Send From Printer Not used Data Set Ready To Printer Signal Ground 8-10 Not Used Supervisory Send Data From Printer 12-19 Not Used Data Terminal Ready...
  • Page 118 Oki Electric Industry 10-3 Shibaura 4-chome, Tel : +81 3 5445 6335 Co., Ltd. Minato-ku, Tokyo, Fax : +81 3 5445 6362 ~ 6364 108-8551, Japan Oki Electronics 78 Shenton Way, #09-01, Tel : +65 221 3722 (Singapore) Pte., Ltd.
  • Page 119 Oki Data Corporation 4-11-22, Shibaura, Minato-ku Tokyo 108-8551 Japan Tel: +81-3-5445-6158 Fax: +81-3-5445-6189 Printed in Thailand 40018701EE...
