Test - Harman EASY Touch Control Owner's Manual

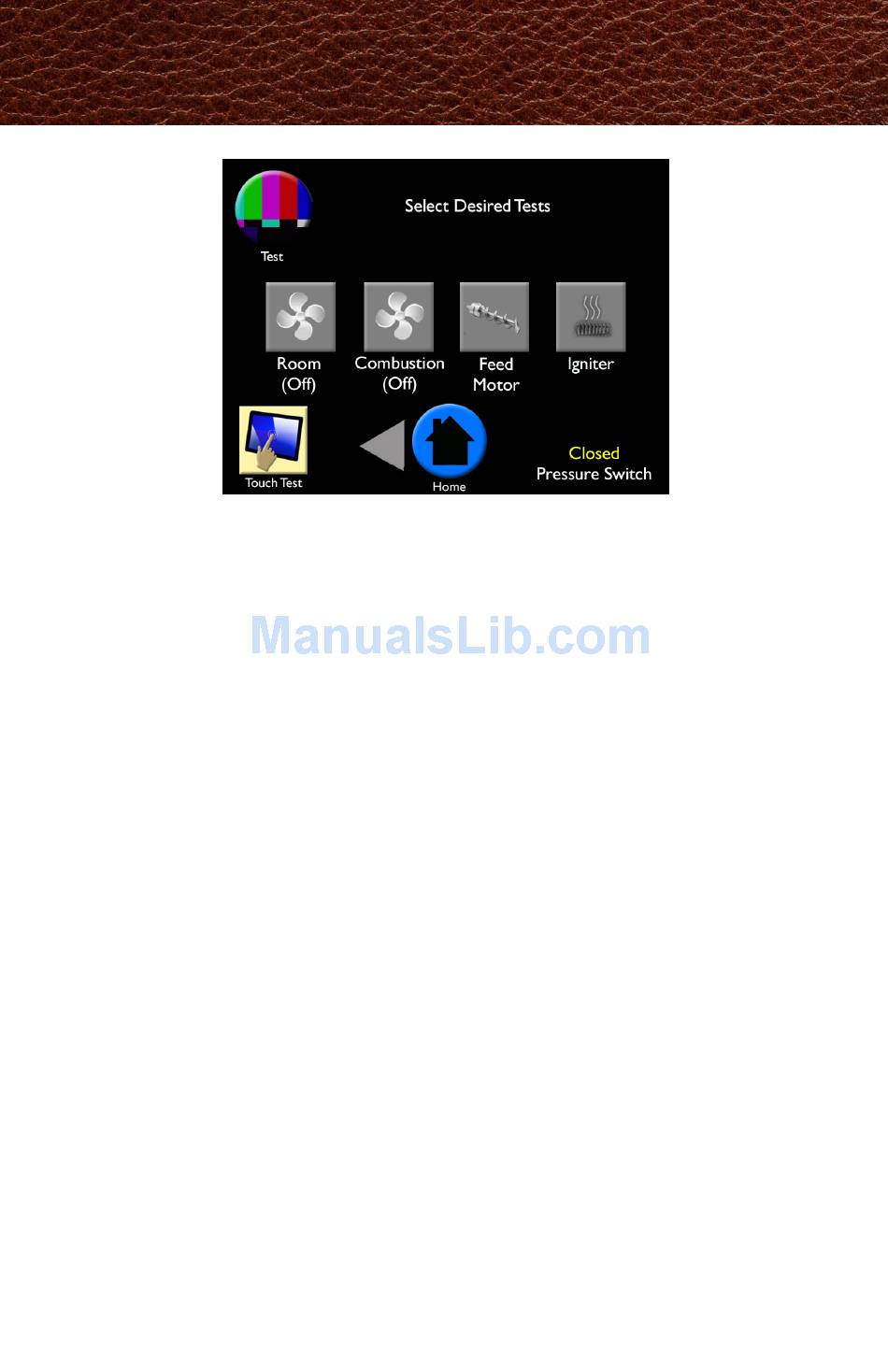

"Test" screen allows you to test the individual functionality of the motors and igniter.
To test functionality, simply press the icon for the component you want to test.
The icon will change colors while testing.
During testing, the components will do the following:
Room Fan: (Is air moving?)
• First touch turns blower on maximum set point
• Second touch reduces blower to minimum set point
• Third touch turns off the fan
Combustion Fan: (Can you hear it?) A message will appear stating the RPM
• First touch turns on full voltage RPM
• Second touch goes to max RPM set point
• Third touch goes to minimum RPM set point
• Fourth touch turns off the fan
Note: A cold unit may show reduced RPM's due to air density.
Feed Motor: (Is auger moving?)
• First touch starts the test, and automatically turns on combustion fan to
activate the pressure switch safety device in the auger circuit
• Second touch turns off the igniter
• Turn off the combustion fan (3 touches)
Igniter: This test only needs performed if you experience failed ignition. We
recommend contacting your Authorized Harman Dealer for assistance.
(After one minute, open the front door and check for heat. Be careful since they
burn pot can be hot.)
• First touch starts the test and automatically turns on combustion fan to
activate the pressure switch safety device in the igniter circuit
• Second touch turns off the igniter
• Turn off the combustion fan (3 touches)
Touch Test: The touch accuracy can be tested on the "Touch Test Area" by
pressing inside the rectangle. If circles appear outside of the area you touched,
calibration may need completed by your Authorized Harman Dealer.
The other data on this screen are factory tests that do not need to be accessed.
