Summary of Contents for Harman EASY Touch Control
- Page 1 EASY Touch Control Easy, Accurate, Smart and provides Yearly savings. Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents EASY Touch Control Overview ......3 Quick Start: Starting Your Pellet Stove ......4 Menus . -
Page 3: Easy Touch Control Overview
EASY Touch Control Overview The EASY Touch Control home screen manages the essential functions of your Harman pellet stove. Message Area Schedule Icon Day/Time Prompts and messages will Appears if “Scheduling” is Current day/time appear in the top center of turned on. -
Page 4: Quick Start: Starting Your Pellet Stove
Touch the Power Icon Your EASY Touch Control automatically runs at our factory default settings which is the most convenient way to heat with a Harman pellet stove. Factory default settings include but are not limited to: •... -
Page 5: Menus
Home Screen you to scroll through 3 pages of icons to access controls for individual features. We have organized the menu pages in order of most frequent use. Menu 1 Menu 2 Menu 3 Harman EASY Touch Control Owners Manual... -
Page 6: Menu I Overview
Note: You cannot cause harm to the unit by changing settings, however, you may not achieve your ideal temperature. If you are unsure of what you have set, you can always go to “Factory Default” on page 3 to revert to factory settings. Harman EASY Touch Control Owners Manual... -
Page 7: Burn Mode
For your reference, the room temperature is displayed to the right of the slider bar on the home screen. The stove will not shut down regardless of room temperature, until you manually turn it off. Harman EASY Touch Control Owners Manual... -
Page 8: Cleaning Prompts
You will be prompted to completely clean the unit and venting after each ton* It is important to perform these maintenance tasks to keep your Harman pellet stove/insert warming your home as efficiently as possible. *Depending on stove model and quality of the pellets burned ** See “Fuel Calibration”... -
Page 9: Diagnostics
Diagnostics - Page 1 There are 6 pages of diagnostic information that will be helpful if you ever have questions about your Harman pellet product. The data on these screens allows you to understand and reference how your unit is working. - Page 10 Fuel Used Since Cleaning: Displays how many pounds of fuel was used since last total clean. Fuel Remaining: Displays amount of fuel in hopper. To enhance accuracy, fuel calibration should be completed, see Menu 2. Harman EASY Touch Control Owners Manual...
- Page 11 • Graphics Package Diagnostic information on page 6 of 6 displays wireless sensor information: • Sensor Signal Strength (wireless) • Communication Status: Enabled or Disabled • Sensory Battery • Sensor ID • Sensor Temperature Harman EASY Touch Control Owners Manual...
-
Page 12: Feed Limit
Decrease your feed limit if you see unburnt pellets falling into the ash pan • Increase your feed limit to maintain approximately 1” of completely burnt pellets on the burn pot The quality of pellets is what causes the need for this adjustment. Harman EASY Touch Control Owners Manual... -
Page 13: Igniter
Igniter There are two ignition and shutdown modes for Harman pellet products: “Automatic” and “Disabled”. Each can be used in conjunction with Constant Burn Mode. “Automatic” will automatically ignite and shut down. “Disabled” requires the stove to be lit in Automatic and then switched to Disabled. - Page 14 “Automatic” and then switched to “Disabled”. The stove will operate at your selected Constant Burn setting. The unit will not shut down unless the “On/Off” icon is touched or if the hopper runs out of fuel. Harman EASY Touch Control Owners Manual...
-
Page 15: Room Fan
In Manual, you can set the fan rate between off and maximum. For your reference, the fan percentage rate is displayed on the lower right of the screen. Safety note: The unit will override the low Manual setting at high burn rates. Harman EASY Touch Control Owners Manual... -

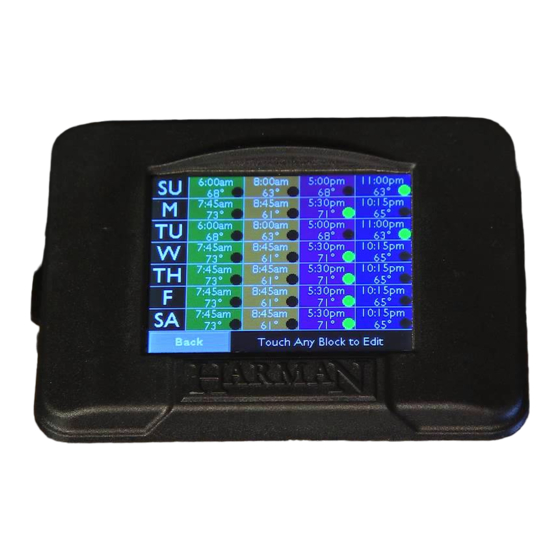

Page 16: Schedule
• Scheduling will not work in Constant Burn Mode—Constant Burn will override scheduling to maintain the consistent burn you set • The day/time must be set for scheduling to function Harman EASY Touch Control Owners Manual... - Page 17 Paste into each day you want this schedule Review Schedule • Press any block to edit, if needed, or select “Back” to return to previous menu • Touch “Exit” when finished scheduling all 7 days Harman EASY Touch Control Owners Manual...
-
Page 18: Test
Touch Test: The touch accuracy can be tested on the “Touch Test Area” by pressing inside the rectangle. If circles appear outside of the area you touched, calibration may need completed by your Authorized Harman Dealer. The other data on this screen are factory tests that do not need to be accessed. -
Page 19: Menu 2 Overview
F - Languages: Choose the language you prefer G - Units: Choose “Metric” or “English” units of measure H - Wireless Room Sensor: Enable optional wireless room sensor (see your authorized Harman dealer for availability) Harman EASY Touch Control Owners Manual... -
Page 20: Home Screen Options
Home Screen Options If you prefer to see how your Harman pellet stove is performing without going into the menus, you can elect to have information shown on your home screen. “Show Fuel Gauges” will display: • Estimated pounds until empty: Turning this function on enables the “Touch Here If Hopper Was Filled”... -
Page 21: Screen Brightness
Active: Touch Screen brightness and adjust with arrows from 20% to 100% Auto-Dim: Touch Screen brightness and adjust with arrows from 0% to 100% After 30 seconds of inactivity the display will revert to the auto-dim state and go back to the home screen. Harman EASY Touch Control Owners Manual... -
Page 22: Day/Time
• The Day/Time must be set for the scheduling feature to work • The Day/Time will automatically set to the correct time after power outage if it is connected to the optional Wireless Remote Sensor Harman EASY Touch Control Owners Manual... -
Page 23: Fuel Calibration
• If you do not add fuel to the hopper, the prompt will stop blinking after 30 seconds • Calibration may be required when using various brands of fuel based on quality Harman EASY Touch Control Owners Manual... -
Page 24: Lock
Lock The “Lock” screen provides an easy way to lock the EASY Touch Control. This feature protects the control from being accessed. To Lock: • Go to “Lock” screen • Press the “Lock” icon • Return to home screen and notice the small lock icon on the lower right corner—settings cannot be altered when control is... -
Page 25: Languages & Units
“Units” screen. The “Units” screen gives the option to see temperature in Fahrenheit or Celsius and weight in pounds or kilograms. Simply press the icon of the preferred unit. Harman EASY Touch Control Owners Manual... -
Page 26: Menu 3 Overview
Menu 3 Overview The third menu includes: A - Dealer Info: Access your Authorized Harman Dealer’s contact information B - Factory Defaults: Allows you to reset to factory settings C - USB: Shows the USB menu for software upgrades D - Video/Manual: Scan QR codes to view manuals and use and... -
Page 27: Dealer Information
Dealer Information The “Dealer Information” screen contains your Harman Dealer information. Please contact this dealer for all your Harman pellet stove needs. In case you feel you have a problem with your unit, your dealer may instruct you to press the “Diagnostic” or “Test” icon to give them more detailed data to properly troubleshoot your pellet stove over the phone. -
Page 28: Factory Defaults
Select “Yes” to erase your settings and return to factory defaults. Select “No” to cancel reset. If “Yes” was selected, this screen will appear to confirm the EASY Touch Control has been reset to the factory default. Harman EASY Touch Control Owners Manual... -
Page 29: Usb
Save History saves data of your unit’s performance history that can be shared with an authorized Dealer to help troubleshoot your unit. Firmware Update is used for EASY Touch Control updates which can be uploaded to the provided USB. You may use another USB. -
Page 30: Video/Manual
Video/Manual This screen allows you to access the EASY Touch Control video and manual anytime by scanning the QR code with your smart-phone or tablet. Harman EASY Touch Control Owners Manual... -
Page 31: Prompts, Messages & Errors
Cleaning Prompts, Messages and Errors Your EASY Touch Control communicates with you by showing messages on the top center of the EASY Touch Control home screen. If you have more than one message, the messages will show consecutively until you acknowledge the mes- sage by performing the task. -
Page 32: Software Updates
Software Updates You can find firmware upgrades for your EASY Touch Control on the Harman website (see link below). The upgrade file will be downloadable on the provided Harman USB flash drive. Go to http://www.harmanstoves.com/Products/Absolute43-Pellet- Stove.aspx?page=Downloads Simply follow the instructions to download the file onto the USB;... -
Page 33: Faq
4. Do I need to use the menus? The EASY Touch Control was designed for you to never have to leave the home screen if you want to operate in the most popular, “Automatic Ignition”... - Page 34 Notes: ________________________________________________________________ _______________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ www.harmanstoves.com Harman EASY Touch Control Owners Manual...
