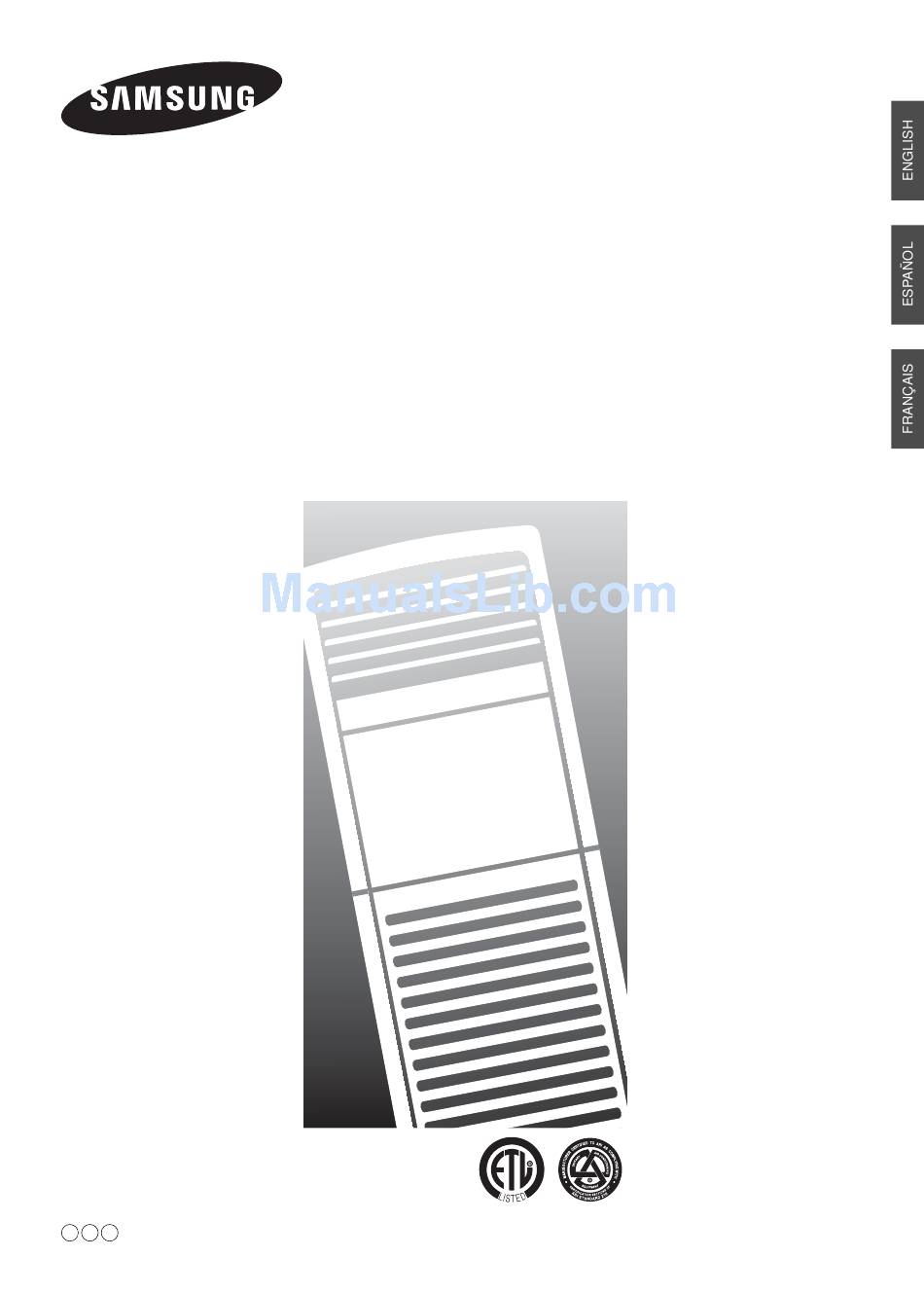

- Page 1 USER’S MANUAL APV48Q0AN FLOOR STAND TYPE AIR CONDITIONER ( Cooling and Heating ) E S F DB98-00000A(1) Air Marketing Group LLC 141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com...
-
Page 2: Safety Precautions
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions are provided to protect the users’ safety and prevent property damage. Make sure to read the followings and use the air conditioner properly. ◗ Keep this user ’s manual together with the installation manual in a handy place so that you can find it whenever you need to see it after reading this manual thoroughly. - Page 3 WARNING URING PERATION ➤ ➤ ➤ Do not attempt to repair, Never spill any kind of Do not place any obstacles move,modify or reinstall the liquid into the unit.Should in front of the unit. unit on your own.Make sure this happen,unplug or main Make sure that the unit is that these installations are switch off the unit and...
- Page 4 WARNING ISPOSING ➤ ➤ ➤ Before throwing out the When you need to dispose Please recycle or dispose device,it is necessary to pull of the unit,consult your of the packaging material back the battery cells and dealer. If pipes are removed for this product in an get rid of them safely for incorrectly, refrigerant may...
- Page 5 CAUTION EGARDING OWER OURCE ➤ ➤ ➤ Disconnect the circuit Contact the service center Do not place any obstacles breaker when you don’t use or manufacturer if you want in front of the unit. the air conditioner for a long to repair the air conditioner.
- Page 6 CAUTION URING PERATION ➤ ➤ Do not use the air Do not give excessive shock conditioner to maintain the to the air conditioner. machine,food, pet, plant or cosmetics. THERS ➤ ➤ ➤ Be sure that the air filter not The appliance is not intended The maximum input power to be exposed to direct for use by young children or...
-
Page 7: Table Of Contents
Contents ◆ REPARING YOUR AIR CONDITIONER Safety Precautions ........2 ■... -
Page 8: View Of The Unit
View of the Unit Indoor Unit Air flow blades (up/down orientation) Air flow blades (right/left orientation) Air outlet Remote control holder To open the grille Air filter ◆ Hold the upper part of the Air inlet grille, then pull it slightly forward. -
Page 9: Outdoor Unit
Outdoor Unit Air inlet(Rear) Air outlet Connection valve Air Marketing Group LLC 141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com... -
Page 10: Remote Control-Buttons
Remote Control - Buttons Temperature adjustment buttons Air flow swing buttons Operation mode selection button (Cool, Heat, Auto, Dry, Fan) Off Timer button Turbo/Long function button (Only in the Cool mode) Fan speed adjustment button On/Off button Air Marketing Group LLC 141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com... -
Page 11: Getting Started
etting Started You have just purchased a Floor stand type air conditioner and it has been installed by your installation specialist. Your Owner's Instructions contain much valuable information on using your air conditioner. Please take the time to read them as they will help you take full advantage of unit's features. -
Page 12: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : ◆ You purchase the air conditioner ◆ The remote control does not work correctly ◆ Use two AAA, LR03 1.5V batteries. ◆ Do not use old batteries or different kinds of batteries together. ◆... -
Page 13: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to adjust the : ◆ Cooling temperature ◆ Fan speed when cooling If necessary, press the (On/Off) button. ◆ The power indicator on the control panel comes on. Result: ◆... -
Page 14: Heating Your Room
Heating Your Room You must select the Heat mode if you wish to adjust the : ◆ Heating temperature ◆ Fan speed when heating If necessary, press the (On/Off) button. ◆ The power indicator on the control panel comes on. Result: ◆... -
Page 15: Selecting The Automatic Operating Mode
Selecting the Automatic Operating Mode You can start the air conditioner in the Automatic mode. In the Automatic mode, the temperature and the optimum fan speed is selected automatically. If necessary, press the (On/Off) button. ◆ The power indicator on the control panel comes on. Result: ◆... -
Page 16: Changing The Room Temperature Quickly
Changing the Room Temperature Quickly The Turbo function is used to Cool /Auto(Cool) your room as quickly as possible. : You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum setting before returning automatically to the mode and temperature previously selected. -
Page 17: Operating To The Long Distance
Operating to the Long Distance The Long function is used to Cool/Auto(Cool) your room as far as possible. In the Long function, the up/down orientation of air flow and fan speed are selected automatically. If necessary, press the (On/Off) button. ◆... -
Page 18: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the (On/Off) button. ◆ The power indicator on the control panel comes on. Result: ◆... -
Page 19: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. ◆ The power indicator on the control panel comes on. Result: ◆ The indoor unit beeps. IMPORTANT The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started... -
Page 20: Adjusting The Air Flow Direction Vertically
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit your room, you can adjust the position of the outer air flow blade on the upper part of the unit, thus increasing the efficiency of the air conditioner. Press the button. -
Page 21: Setting The Off Timer
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 1 to 8 hours. You can select the Off Timer only when the air conditioner is on. To set the operating time, press the button one or more times until the required time is displayed. -
Page 22: Other Function
Other Function You can use the Lock function on the control panel of the indoor unit. Press the buttons simultaneously for 3 seconds. ◆ Result: indicates on the control panel. ◆ The control panel is locked. You can use the remote control even if the control panel is locked. -
Page 23: Operating Recommendations
Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Heating performances The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. -
Page 24: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges, within which the air conditioner can be used. If the air conditioner is used at... Then... High temperature The automatic protection feature may be triggered and the air conditioner stopped. Low temperature A water leakage or some other malfunction may happen if the heat... -
Page 25: Cleaning Your Air Conditioner
Cleaning Your Air Conditioner For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning your air conditioner, ensure that you have switched off the breaker for the unit. -
Page 26: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution ◆ Check that the breaker used for the air conditioner is switched on. The air conditioner does not ◆... -
Page 27: Technical Specifications
Technical Specifications Model Power Supply 1Ø, 208~230V, 60Hz APV48Q0AN Air Marketing Group LLC 141 Kinderkamack Rd, Park Ridge, NJ 07656 Tel: 201-782-1782 Fax: 201-782-1783 Web: www.amgair.com Email: info@amgair.com... - Page 28 Contact SAMSUNG WORLD WIDE If you have any comments or questions regarding a Samsung product, contact the SAMSUNG customer care center. Country Customer Care Center Web Site CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL 0800-124-421 / 4004-0000 www.samsung.com/br...
