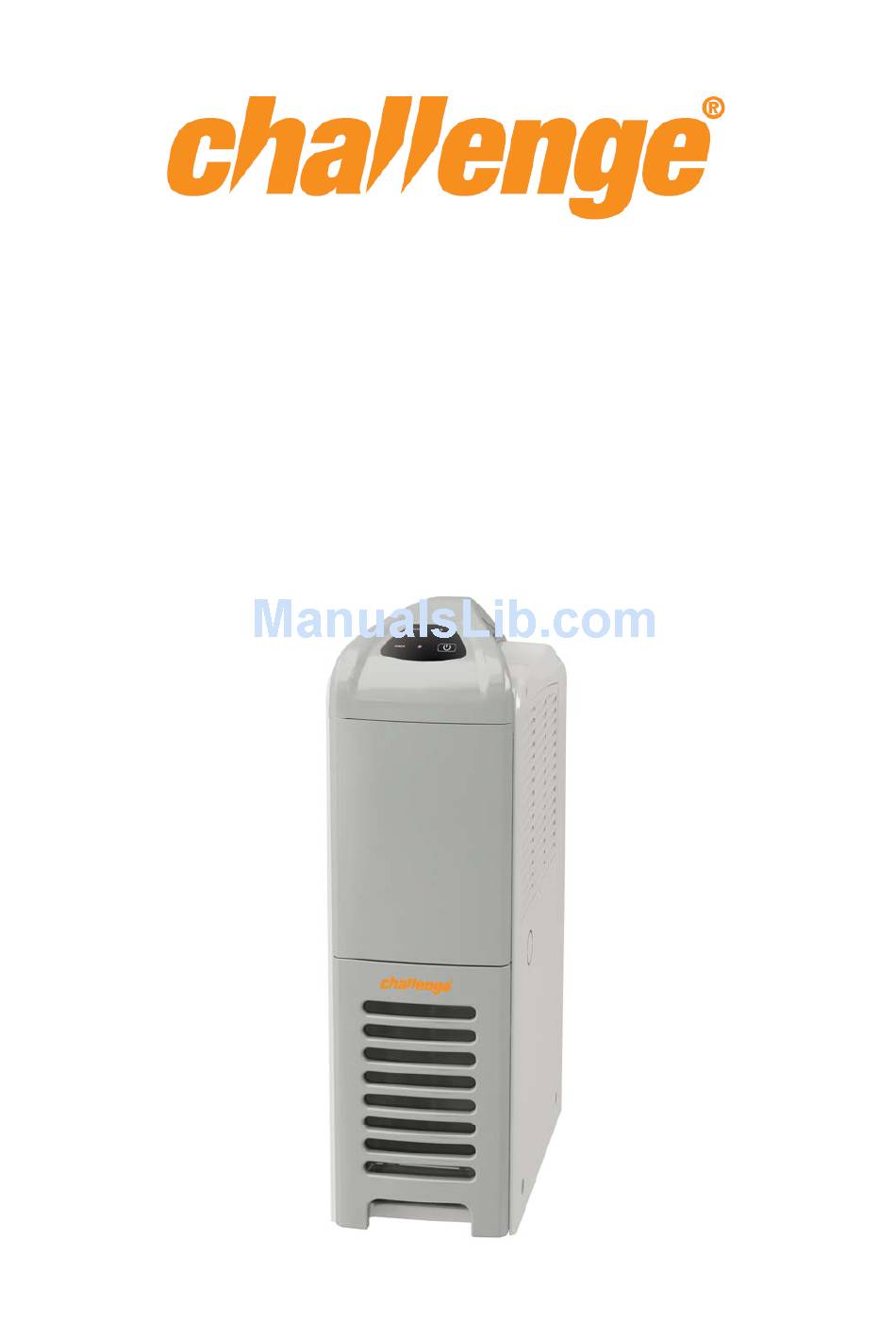

- Page 1 12L DEHUMIDIFIER INSTRUCTION MANUAL ...
- Page 2 Thank you for selecting super quality dehumidifier. Please be sure to read this manual carefully before using it. Keep the manual for future reference. CAUTIONS Please read the operating instructions carefully before using your dehumidifier for the first time. 1. Install the appliance on flat and hard place to avoid occurrence of vibration noise.
- Page 3 PLACEMENT When positioning the dehumidifier, ensure that it is placed on a level surface and that there is a minimum of 10cm of space on either side of the unit to allow for efficient airflow. We do not recommend the use of an extension lead, so please try tot ensure that the unit is sufficiently close to a fixed main socket.
- Page 4 PARTS 1. ON/OFF Switch 2. Power indicator light 3. Water full indicator 4. Control panel 5. Water tank 6. Power Cord 7. Filter 8. Carry Handle 9. Air outlet grille 10. Continuous drainage hole 11. Caster Operation Plug the unit into a correct mains socket. Press ON/OFF switch “(I)”...
-
Page 5: Continuous Drainage
DRAINAGE While the water tank is full, the compressor will stop and the water full indicator light will illuminate. To remove the water tank, pull it out carefully from the unit. After empting the water tank, place the tank back to the unit. Make sure it is properly positioned, in order for the water full indicator light to go out and your dehumidifier is operating. - Page 6 CLEANING Always unplug the unit from the power supply before beginning cleaning to avoid electric shocks. Housing - Use a soft, damp cloth to wipe the cabinet clean. Never use strong chemicals, oil-based products, detergents, chemically treated cloths or other cleaning solution. These could damage the cabinet.
-
Page 7: Troubleshooting
STORAGE If not use the unit for an extended period of time. Please: Turn the unit off and unplug it from the mains. Completely empty the water tank and wipe it clean. Cover the unit and store where it will not receive direct sunlight. TROUBLE SHOOTING Never try to repair or dismantle the dehumidifier yourself. -
Page 8: Technical Data
TECHNICAL DATA Model MDN-12DMN3 Mains 220-240V~/50Hz Power 320W Ampere consumption 1.5 A Dehumidification capacity L/24h 12 L/24h (30℃ RH 80%) Air volume(max) m³/h 85 m³/h Refrigerant load R134a/65g Compressor QX42H ℃ Thermostat 5℃-35℃ Recommended room size Up to 18 m Water tank 1.5 L... -
Page 9: Connection To Power
CONNECTION TO POWER Before connecting, check that the voltage indicated on the appliance (bottom of the appliance) corresponds with the main voltage in your home. If this is not the case, consult your dealer and do not use. This appliance may be fitted with a non-rewirable plug. If you need to change the fuse in a non-rewirable plug, the fuse cover must be refitted. - Page 10 ...
