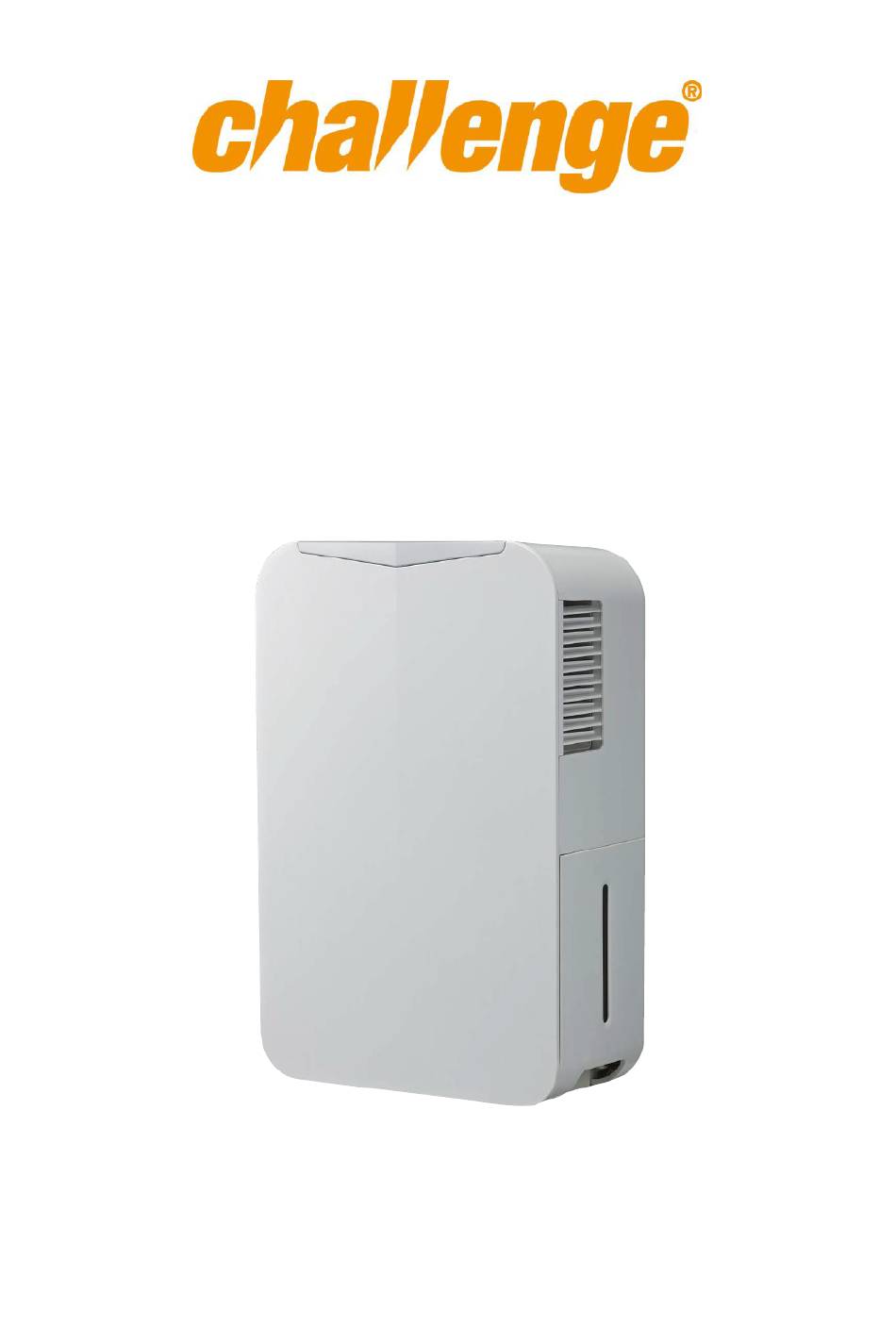

- Page 1 10 LITRE DEHUMIDIFIER INSTRUCTION MANUAL MODEL NO. : MDN4-10DMN3-QA3...
-
Page 2: Safety Instructions
Thank you for selecting Challenge dehumidi er. Please be sure to read this manual carefully before using it. Keep the manual for future reference. SAFETY INSTRUCTIONS Please read the operating instructions carefully before using your dehumidi er for the first time. - Page 3 17. Do not damage or use an unspecified power cord. 18. Do not modify power cord length or share the outlet with other appliances. 19. Do not insert or pull out plug with wet hands. 20. Disconnect the power if strange sounds, smell, or smoke comes from it. 21.
- Page 4 Don’t try to repair, dismantle or remold such app an ce, or it may make some damage. if the su ly cord is damag , it must replaced by the manufacturer or its service t or a similarly q ualified person in order to avoid a zard.
-
Page 5: Know Your Appliance
KNOW YOUR APPLIANCE MAIN Control panel Handle Air inlet Air filter Drain hose outlet Power Cord and plug Water tank Air outlet grille CONTROL PANEL Power on indicator light(green) Water full indicator light(red) Power ON / OF F F F buttons 2 2 2 2 1 1 1 1 3 3 3 3... - Page 6 Operation Power on in dicator ght(green) This indicator light remains on(green) when the unit is switched on and turns dark when the unit is switched off. Water f ull in dicator ght(red) Glows when the water tank is water full, or when the water tank is removed or not replaced in the proper position.
-
Page 7: Continuous Drainage
DRAINAGE While the water tank is full, the compressor will stop and the water full indicator light(Red) will illuminate. To remove the water tank, pull it out carefully from the unit. After empting the water tank, place the tank back to the unit. Make sure it is properly positioned, in order for the water full indicator light(Red) to go out and your dehumidifier is ope rating. - Page 8 CLEANING Always unplug the unit from the power supply before beginning cleaning to avoid electric sho Housing - Use a soft, damp cloth to wipe the c inet clean. Never use strong c micals, oil- ba ed products, detergents, c mically treated cloths or ot r cleaning solution.
-
Page 9: Troubleshooting
TROUBLE SHOOTING Never try to repair or dismantle the dehumidifier yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property. Problem Possible Cause Solution Has the power cord Plug the power cord into been the outlet. -
Page 10: Technical Data
TECHNICAL DATA Model MDN4-1 0DMN3-QA3 Mains 220V-240V ~50Hz Power 320W Ampere consumption 1.5 A Dehumidification capacity L/24h 10 L/24h ℃ RH 80%) Air volume(max) m³/h 110 m³/h Refrigerant load R134a/90 g Compressor KANGPUSI QX42H Recommended room size Up to 3 Water tank 1.5 L Dimensions(W*H*D) - Page 11 lf a 13 Amp (BS 1363) fused plug is used it must be fitted with a 13 fuse. lf in doubt consult a qualified electrician. Wiring for a 13 Amp Plug (BS1363) lf a 13 Amp (BS 1363) plug is used , it must be fitted with a 13 Amp Fuse conforming to BS1363 and be ASTA approved.
-
Page 12: Product Guarantee
PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.
