14 Using the Web-GUI
The following sections provide an overview of the different programming panels available within the
codec's Toolbox web-GUI. Navigate with the mouse pointer to a symbol at the top of the web-GUI
screen and click to open the panel selected. When a panel is opened in the web-GUI, the text
below the symbol is highlighted (see Master in the following image).

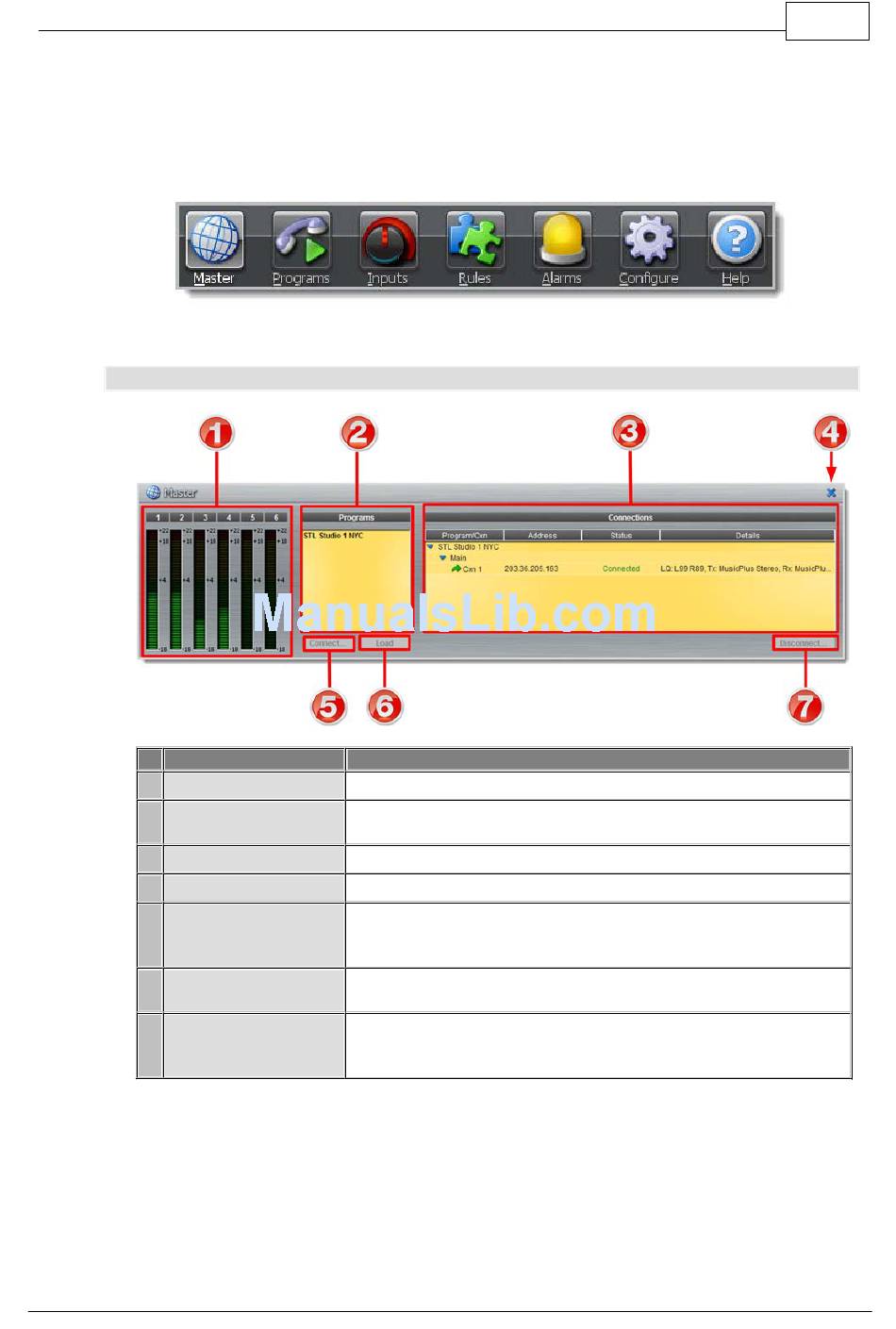

Master Panel to Load and Connect Programs, Audio Streams and Connections
Feature
1 Input/Output PPMs
2 Programs list
3 Connections
4 Close button
5 Connect button
6 Load button
7 Disconnect button
© Tieline Pty. Ltd. 2012
Web-GUI Symbols for Opening Panels
Description
6 PPM meters to display audio levels for inputs and outputs
Lists all configured programs which have been added into the
codec. Click to select a program before loading or connecting
Provides a summary of connection details and audio streams
Click to close the Master panel
Click Connect to connect all audio streams configured within the
currently selected program in the Programs list; this button also
loads the program currently selected in the Programs list
Click to Load the codec with the program currently selected in
the Programs list
Click to disconnect the currently selected audio stream or a
specific connection. Note: this button becomes a Connect or
Unload button when all audio streams are disconnected.
Connecting to the Web-GUI 41
