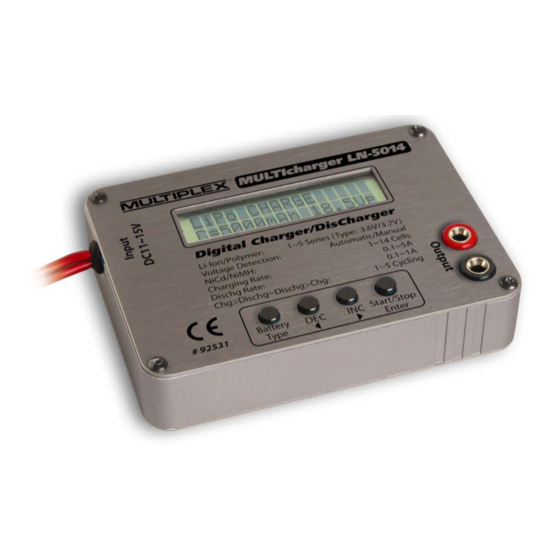

Multiplex MULTIcharger LN-5014 Operating Instructions

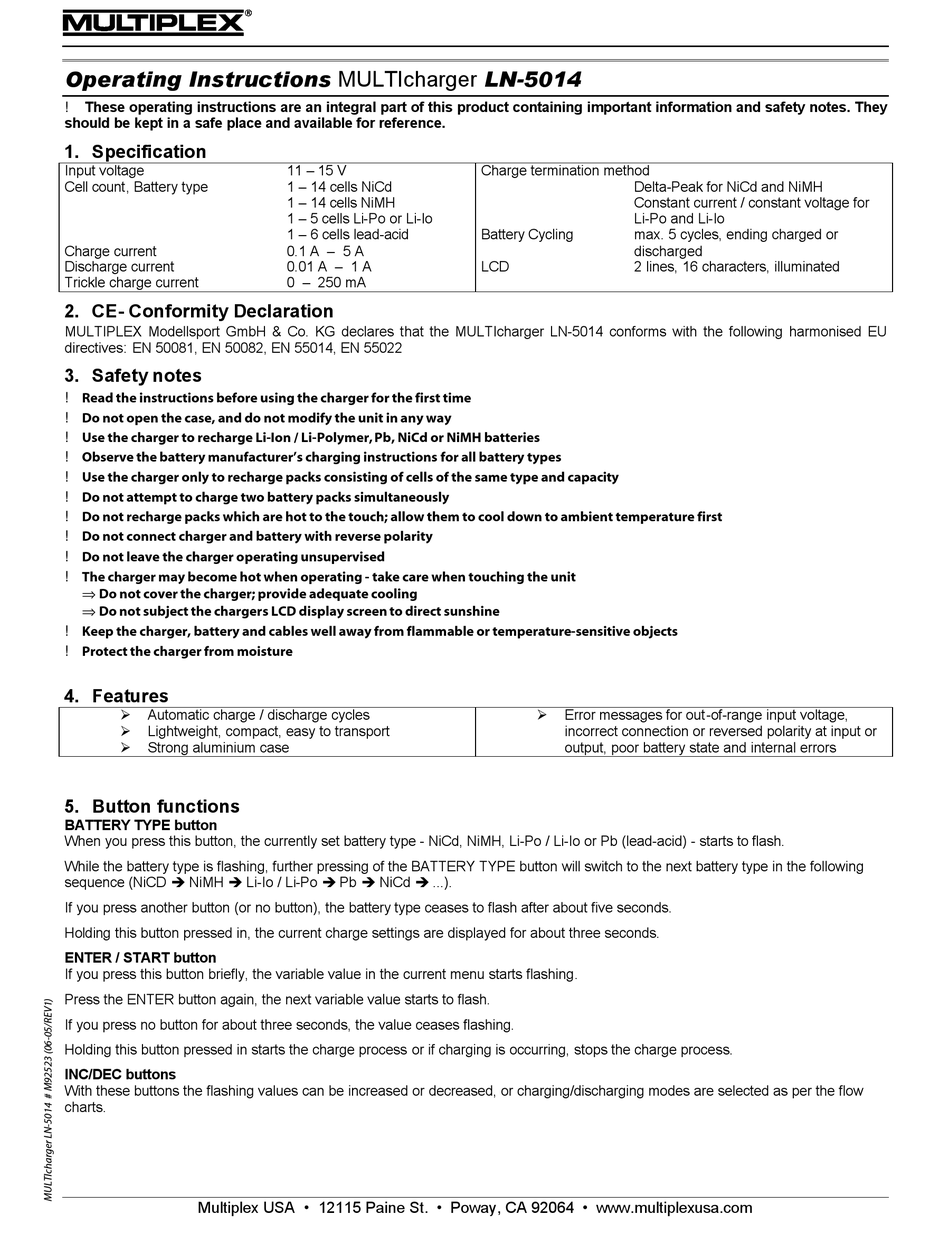

Operating Instructions MULTIcharger LN-5014
! These operating instructions are an integral part of this product containing important information and safety notes. They
should be kept in a safe place and available for reference.
1. Specification
Input voltage
Cell count, Battery type
Charge current
Discharge current
Trickle charge current
2. CE- Conformity Declaration
MULTIPLEX Modellsport GmbH & Co. KG declares that the MULTIcharger LN-5014 conforms with the following harmonised EU
directives: EN 50081, EN 50082, EN 55014, EN 55022

3. Safety notes

! Read the instructions before using the charger for the first time
! Do not open the case, and do not modify the unit in any way
! Use the charger to recharge Li-Ion / Li-Polymer, Pb, NiCd or NiMH batteries
! Observe the battery manufacturer's charging instructions for all battery types
! Use the charger only to recharge packs consisting of cells of the same type and capacity
! Do not attempt to charge two battery packs simultaneously
! Do not recharge packs which are hot to the touch; allow them to cool down to ambient temperature first
! Do not connect charger and battery with reverse polarity
! Do not leave the charger operating unsupervised
! The charger may become hot when operating - take care when touching the unit
⇒ Do not cover the charger; provide adequate cooling
⇒ Do not subject the chargers LCD display screen to direct sunshine
! Keep the charger, battery and cables well away from flammable or temperature-sensitive objects
! Protect the charger from moisture
4. Features
Ø Automatic charge / discharge cycles
Ø Lightweight, compact, easy to transport
Ø Strong aluminium case

5. Button functions

BATTERY TYPE button
When you press this button, the currently set battery type - NiCd, NiMH, Li-Po / Li-Io or Pb (lead-acid) - starts to flash.
While the battery type is flashing, further pressing of the BATTERY TYPE button will switch to the next battery type in the following
sequence (NiCD è NiMH è Li-Io / Li-Po è Pb è NiCd è ...).
If you press another button (or no button), the battery type ceases to flash after about five seconds.
Holding this button pressed in, the current charge settings are displayed for about three seconds.
ENTER / START button
If you press this button briefly, the variable value in the current menu starts flashing.
Press the ENTER button again, the next variable value starts to flash.
If you press no button for about three seconds, the value ceases flashing.
Holding this button pressed in starts the charge process or if charging is occurring, stops the charge process.
INC/DEC buttons
With these buttons the flashing values can be increased or decreased, or charging/discharging modes are selected as per the flow
charts.
Multiplex USA • 12115 Paine St. • Poway, CA 92064 • www.multiplexusa.com
11 – 15 V
1 – 14 cells NiCd
1 – 14 cells NiMH
1 – 5 cells Li-Po or Li-Io
1 – 6 cells lead-acid
0.1 A – 5 A
0.01 A – 1 A
0 – 250 mA
Charge termination method
Delta-Peak for NiCd and NiMH
Constant current / constant voltage for
Li-Po and Li-Io
Battery Cycling max. 5 cycles, ending charged or
discharged
LCD 2 lines, 16 characters, illuminated
Ø Error messages for out-of-range input voltage,
incorrect connection or reversed polarity at input or
output, poor battery state and internal errors
