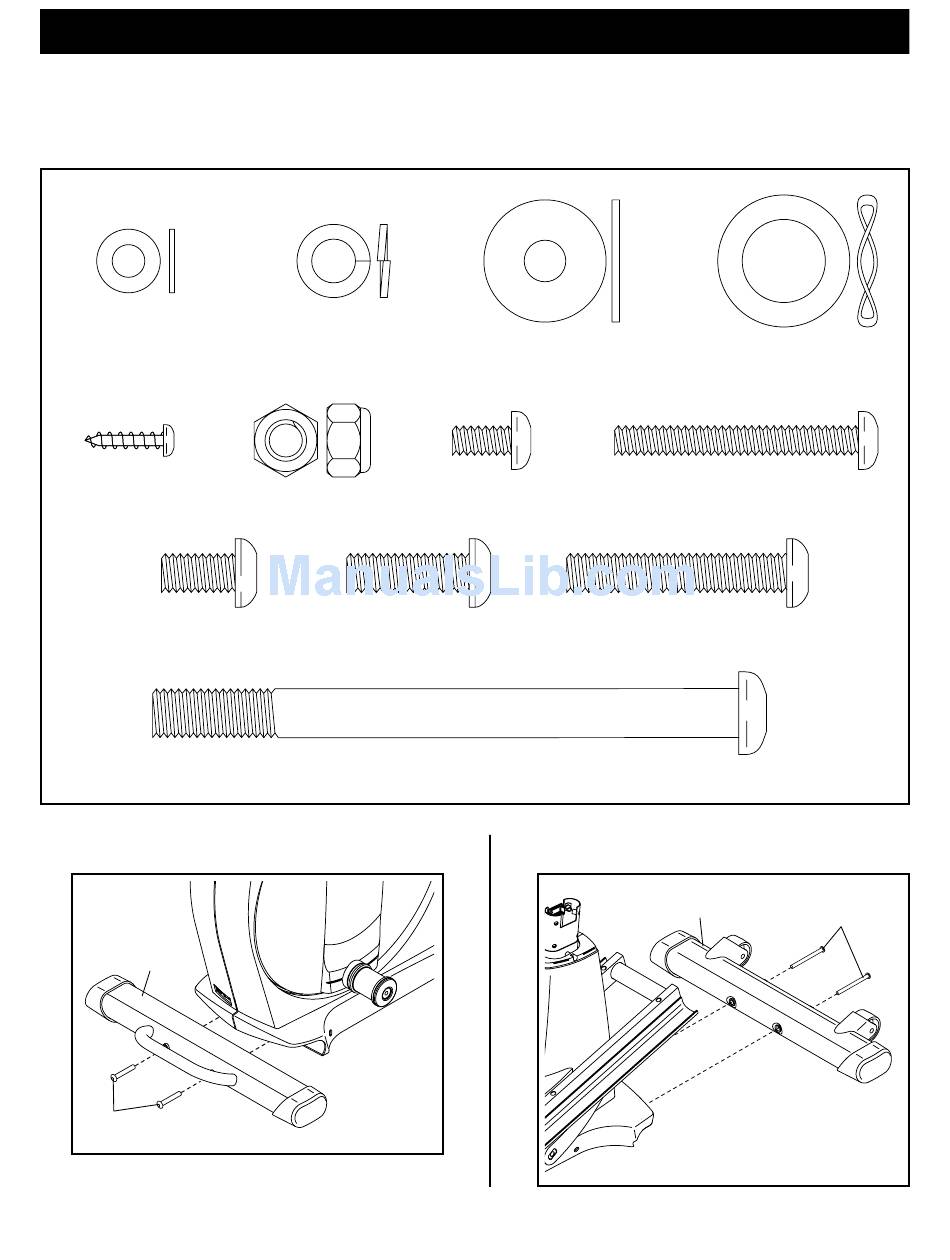

QUICK ASSEMBLY GUIDE
NORDICTRACK
®
E 7.5 Elliptical •• Model No. 831.23897.0 •• Revised 9/27/12
For detailed instructions, see the User’'s Manual.
M6 x 13mm
M8 Split
M8 x 25mm x
M17 x 27mm
Washer (140)––8
Washer
1.5mm Washer
Wave Washer
(131)––8
(126)––4
(88)––2
M4 x 16mm
M8 Locknut
M6 x 12mm
M6 x 50mm
Screw (93)––14
(105)––6
Screw (139)––4
Screw (62)––4
M8 x 16mm
M8 x 25mm
M8 x 45mm Bolt
Screw (102)––12
Screw (128)––2
(104)––6
M10 x 120mm Screw (100)––4

1. Attach the Rear Stabilizer (4).

2. Attach the Front Stabilizer (3).

3
100
4
100
