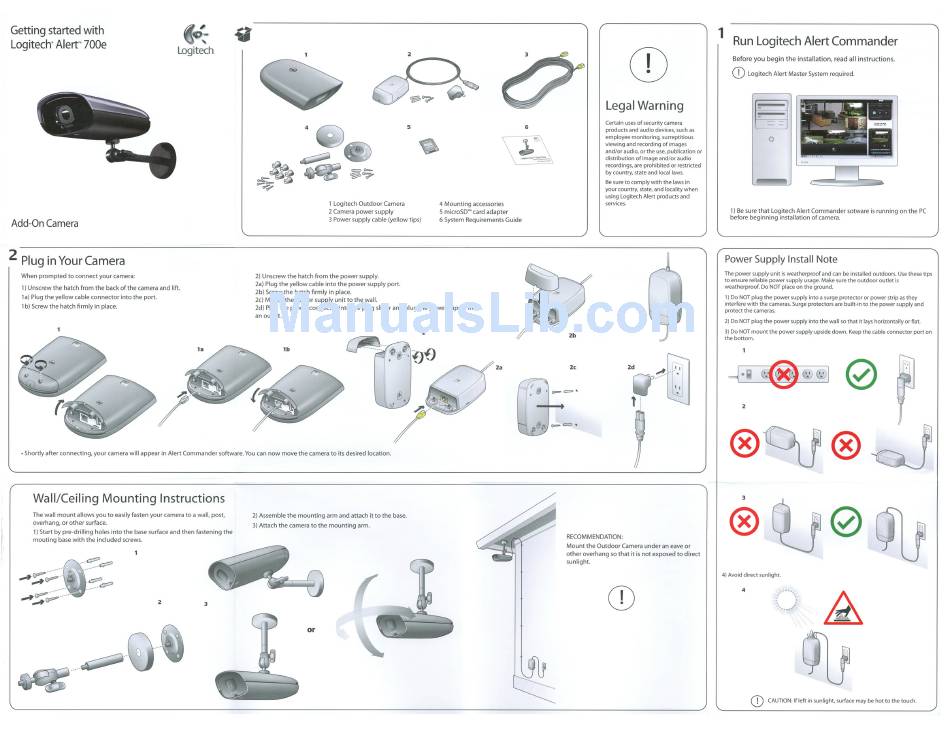

Logitech Alert 700e Getting Started

«~
Getting started with
Logitech· Alert· 700e
Logitech
Add-On Camera
2
Plug in Your Camera
When prompted to connect your camera:
1) Unscrew the hatch from the back of the camera and lift.
1 a) Plug the yellow cable connector into the port
1 b) Screw the hatch firmly in place.
1 Logitech Outdoor Camera
2 Camera power supply
4 Mounting accessories
5 microSD"' card adapter
3 Power supply cable (yellow tips) 6 System Requirements Guide
2) Unscrew the hatch from the power supply.
2a) Plug the yellow cable into the power supply port.
2b) Screw the hatch firmly in place.
2c) Mount the power supply unit to the wall.
2d) Plug the power connector into the plug slider and plug the power supply into
an outlet.
2c
~=·
ld--=·
CD
Legal Warning
Certain uses of security camera
products and audio devices, such as
employee monitoring, surreptitious
viewing and recording of images
and/or audio, or the use, publication or
distribution of image and/or audio
recordings, are prohibited or restricted
by country, state and local laws.
Be sure to comply with the laws in
your country, state, and locality when
using Logitech Alert products and
services.
• Shortly after connecting, your camera wi ll appear in Alert Commander software. You can now move the camera to its desired location.
Wall/Ceiling Mounting Instructions
The wall mount allows you to easi ly fasten your camera to a wall, post,
overhang, or other su rface.
1) Start by pre-drilling holes into the base surface and then fastening the
mouting base with the included screws.
.....
;::;;;;.--
.....
;:::;;----
----~-----
2) Assemble t he mounting arm and attach it to the base.
3) Attach the camera to the mounting arm.
or
RECOMMENDATION:
Mount the Outdoor Camera under an eave or
other overhang so that it is not exposed to direct
sunl ight
CD
1
Run Logitech Alert Commander
Before you begin the installation, read
all
in struction s.
Q)
Logitech Alert Master System required.
1) Be sure that Logitech Alert Commander sotware is ru nning on the PC
before beginning insta llation of camera.
Power Supply Install Note
The power supply unit is weatherproof and can be installed outdoors. Use these tips
to ensure reliable power supply usage. Make sure the outdoor outlet is
weatherproof. Do NOT place on the ground.
1) Do NOT plug the power supply into a surge protector or power strip as they
interfere with the cameras. Surge protectors are built-in to the power supply and
protect the cameras.
2) Do NOT plug the power supply into the wall so that it lays horizontally or flat.
3) Do NOT mount the power supply upside down. Keep the cable connector port on
the bottom.
~-A
4) ©©1
0
r
®OJ ®-o]
4) Avoid direct sunlight.
4
C)
Q)
CAUTION: If leh in sunlight, surface may be hot to the touch.
