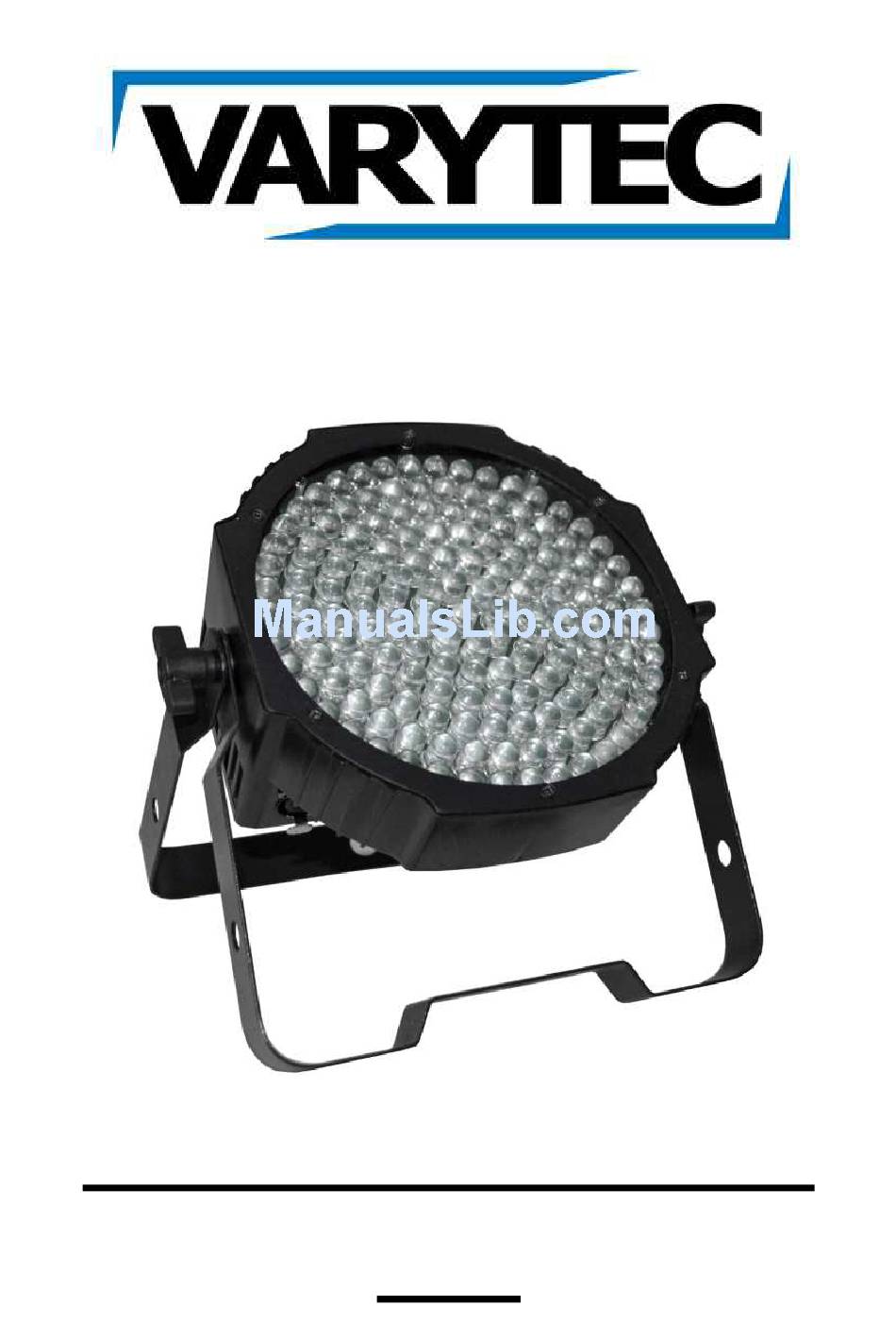

- Page 1 User manual LED Flat Par 152x10mm...
-
Page 2: Table Of Contents
Table of contents Safety instructions ..........................3 1.1. FOR SAFE AND EFFICIENT OPERATION ................3 Technical Information ........................4 Menu structure ..........................4 DMX Table ............................6 4.1. DMX Mode 1 (1 Channel) ......................6 4.2. DMX Mode 2 (2 Channel) ......................6 4.3. -
Page 3: Safety Instructions
1. Safety instructions • This device is suitable for indoor use only. • All modifications to the device will void the warranty. • Repairs are to carry out by skilled personnel only. • Use only fuses of the same type and original parts as spare parts. •... -
Page 4: Technical Information
Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. Make sure the electrical connection is carried out by qualified personnel. All electrical and mechanical connections have to be carried out according to the European safety standards. - Page 5 5 / 9...
-
Page 6: Dmx Table
4. DMX Table 4.1. DMX Mode 1 (1 Channel) Value Function Channel 0 – 255 0 = Off 1 - 255 = Different colour macros 36 4.2. DMX Mode 2 (2 Channel) Value Function Channel 0 - 255 0= Off 1 – 255 = Master dimmer 0 - 255 0 = Off 1 - 255 = Different colourmacros 36 4.3. -
Page 7: Dmx Mode 4 (8 Channel)
4.4. DMX Mode 4 (8 Channel) Value Function Channel 0 - 255 Adjust master Dimmer low to high 0 - 255 Adjust red LEDs Dimmer low to high 0 - 255 Adjust green LEDs Dimmer low to high 0 - 255 Adjust blue LEDs Dimmer low to high 0 - 255 0 –... -
Page 8: Ir Control
5. IR control 6. Technical Data Power supply: 100-240V AC, 50-60Hz LED: 152 x 10mm LEDs R/G/B Measurements: 182mm x 216mm x 177mm (L x W x H) Weight: 0,90 kg Protection class: IP 20 8 / 9... - Page 9 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 9 / 9...
