Summary of Contents for Varytec MINI LED SPOT

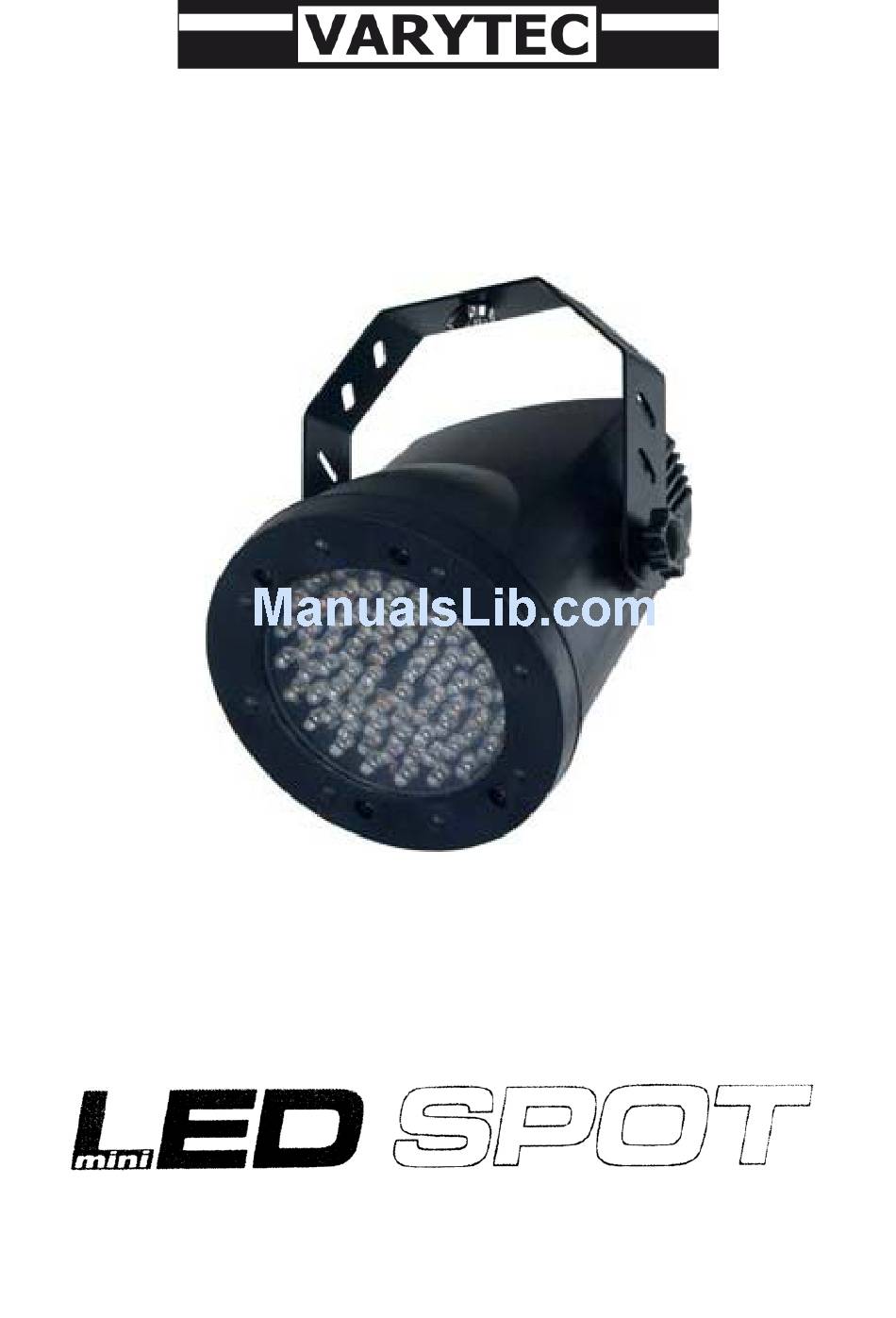

- Page 1 User’s manual...
- Page 2 Table of content Safety instructions........................... 3 Package content ..........................4 Installation............................4 Functions ............................4 4.1. Setting up the Auto mode....................... 4 4.2. Setting up the DMX mode ...................... 5 4.3. DMX channels ........................5 Technical data..........................5 2 / 6...
-
Page 3: Safety Instructions
1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperatureAvoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. Keep away from humidity, water and dust Do not place the set in a location with high humidity or lots of dust. - Page 4 2. Package content 1 x Mini LED Spot 1 x manual 3. Installation Mount the item and set the desired degree for the binder by using the screw on the side. Connect the DMX Input of the Spot with the DMX Output of your DMX Controller by using a standard XLR 3 Pin DMX Cable.
-
Page 5: Technical Data
4.2. Setting up the DMX mode For the DMX addressing make sure that the channel 10 is on. With all the other dipswitches you can set up your desired DMX address by using the binary system. 4.3. DMX channels Channel 1 Dimmer Strobe Channel 2 Channel 3... - Page 6 Importeur: B & K Braun GmbH Industriestraße 1 D-76307 Karlsbad www.bkbraun.com info@bkbraun.com 6 / 6...
