Contec CheckMate IV RT-U49A Programming And Operating Instructions

CheckMate
Model RT-U49A
Universal Remote Control
Programming And

Operating Instructions

To have a clearer idea of the features and capabilities
of your remote control, take a moment to read these
instructions. Save for future reference.
Rev. 11/2000. © 2001, CONTEC CORPORATION
™
IV
1. Introduction

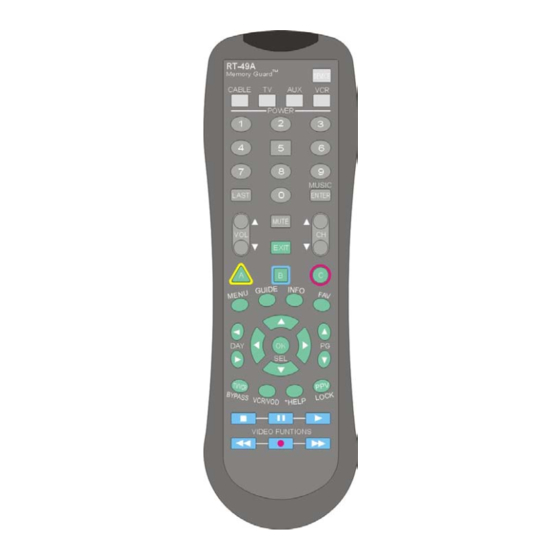

Your Checkmate IV (Model RT-U49A) universal remote
control is simple to program, easy to use, and can operate
up to four (4) electronic devices which include:
CABLE
TV
VCR
AUX
Before you can use your remote control, it must be
programmed (set-up) to operate the above devices.
Programming your remote is a simple procedure using Point
and Press™ Programming, an automatic method whereby
the remote self-programs to each of your devices, eliminating
the need to use codes. Programming your remote can also
be done by entering code numbers.
Simplified Point and Press™ Programming instructions can
also be found on the back of your remote control.
2. Installing / Replacing Batteries
Install two (2) "AAA" batteries as indicated by the diagram in
the battery compartment. Be careful to properly match the
"+ / -" ends of the batteries with the diagram in the battery
compartment.
Under normal use, your remote should operate for
approximately 10 - 12 months on 2 "AAA" non-alkaline
batteries. For longer life, use alkaline-type batteries.
When the batteries become too weak to operate the remote
control properly, the mode keys will become dim or not
illuminate at all during use. When this happens, install 2 new
"AAA" size batteries.
Your remote control has Memory Guard™, which eliminates
reprogramming after battery changes provided new batteries
are installed within 6 hours of removal of old batteries.
3. Programming Your Cable Converter
Your remote is pre-programmed to operate Motorola's
®
DCT and CFT2200
If you need to operate a different CABLE converter, look up
the brand and model number in the attached code list. If you
are not sure of your brand and model, contact your cable
company.
Cable converters
Televisions
VCRs
nd nd nd
2 CABLE, 2 TV, 2 VCR
®
set-top CABLE converters.
To program (setup) the remote to operate your CABLE
converter...
1. Turn on your CABLE converter.
2. Press [DEVICE], then [MUTE] together - hold both
buttons down until the lighted mode buttons start blinking
in sequence.
3. Press [CABLE]. The [CABLE] button will illuminate.
4. From the Cable Setup Code list below, locate and enter
the 3-digit code for your brand and model.
5. Press [CABLE] to lock in the code. The [CABLE] button
will blink 2 times and go out.
Write your CABLE brand & setup code _______________
Cable Setup Codes
Motorola (General Instrument)
DCT, CFT2200 (default)
CFT2100, CFT2000
Jerrold
DL4, DP(V), DQN(V), DPBB
Scientific Atlanta
Explorer
8600X
8600
8540, 70, 90
Pioneer
Voyager
BA-V1000, BA-V2000
BA-9000
BC-4600, BA-5000, BA-6000
Tocom
5503VIP, 5507, 5508
Zenith
Z-Tac
MM2500
Oak
Sigma One, P1, P2, P3, Sigma 2000
4. Programming Your TV
If you have a TV operated by remote control, it is
recommended that you plug it directly into a wall outlet
instead of the cable converter.
To program (setup) the remote to operate your TV...
101
102
103
104
105
106
107
104
110
109
108
111
112
113
114
