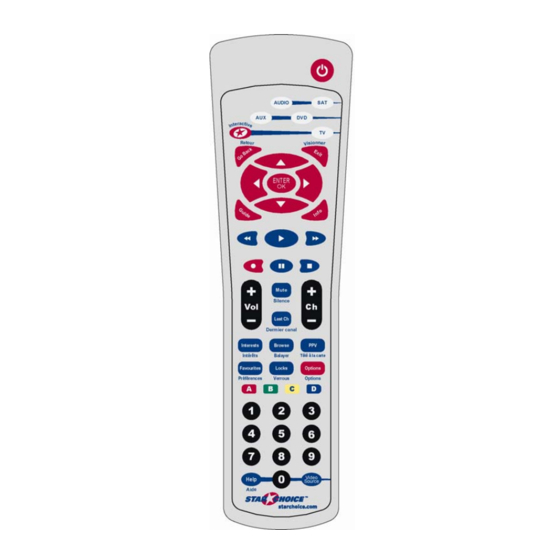

Model IRC 550
Universal Remote Control
Programming and Operating
Instructions
To have a clearer idea of the features and capabilities of
your remote control, take a moment to read these
instructions. Save for future reference.
© 2006 Contec Holdings, LLC, Rev. 04/06
1. Introduction
Your universal remote control is simple to program,
easy to use, and can operate up to five (5) devices,
which include:
SAT
Satellite receivers
TV
Televisions
DVD
DVD
AUDIO
Audio receivers, amplifiers, CD players
nd
nd
AUX
VCRs, 2
TV, 2
DVD, 2
Before you can use your remote control, it must be
programmed (set-up) to operate the above devices.

2. Before Getting Started

Some of the special features and buttons on your
remote control are as follows:
®
Point and Press
Programming
Lets you program your TV, VCR, DVD, AUDIO
devices without codes. For more information, see
Sections 5 and 14.
®
Memory Guard
Eliminates reprogramming after battery changes.
Time Out
If the same button is pressed and held for 30-
seconds, your remote control will turn itself off
automatically. This extends the battery life should
the remote become lodged under or between heavy
objects, for example sofa cushions.

3. Installing. Replacing Batteries

Install two (2) new "AA" batteries as indicated by the
diagram in the battery compartment.
When the batteries become low and need to be
replaced, the [SAT], [TV], [DVD], [AUDIO], [AUX]
buttons will not illuminate normally or at all during use.
When this happens, replace the existing batteries with
two (2) new "AA" batteries to restore normal operation
to the remote control.

4. If You Have More Than One Satellite Receiver

Your remote control is set at the factory to control all
of the functions on your Motorola satellite receiver.
However, if you have more than one satellite receiver,
nd
Audio device
you may want to prevent the remote control in one
room from affecting the satellite receiver in another
room. To prevent this kind of interference, you must
"pair" each remote control with each receiver by
assigning a new "address" to each combination. This
"address" assignment is made using your remote
control as follows:
1. Press the [SAT] button to select the remote
control's SAT mode.
2. Press the [Options] button to display the Options
screen on your TV.
3. On the Options screen, use the [▲], [▼], [◄], [►]
buttons to highlight the Change System Settings /
System Setup option, then press [Enter].
4. On the Systems Setting / Setup screen, use the
[▲], [▼], [◄], [►] buttons to highlight the Change
Installation Settings / System Settings (applies to
DSR 5xx, 207, 317 receivers) option, then press
[ENTER].
5. On the System Settings (applies to DSR 5xx, 207,
317 receivers) screen, use the [▲], [▼], [◄], [►]
buttons to highlight the Installation Settings option,
then press [ENTER]
6. On the Installation Settings screen, use the [▲],
[▼], [◄], [►] buttons to highlight the Remote
Control Address option, then press [ENTER]
7. Once you are on the Remote Control Address
screen, disregard the instructions on the
screen and follow these steps using the
remote control keypad....

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRC 550 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Contec IRC 550

  • Page 1 [SAT], [TV], [DVD], [AUDIO], [AUX] remote control keypad…. your remote control, take a moment to read these instructions. Save for future reference. buttons will not illuminate normally or at all during use. © 2006 Contec Holdings, LLC, Rev. 04/06...
  • Page 2 a. In this order, press and hold the [MUTE] button, 1. If the TV turns back on, press [ENTER] to code. The mode buttons will blink 3-times and then the [ENTER] button. Hold both buttons lock in the code. The mode buttons will go out.
  • Page 3 7. Programming Your TV / VCR Combination Before you can test for the correct DVD setup To identify the 3-digit AUDIO code, press [ENTER], code, you must first press the [DVD] button to put then [AUDIO] as defined in step 1 above, then press 1.
  • Page 4 2. Press [VOL ], then [SAT] for Satellite volume. Button AUDIO TV Mode Mode 11. Programming Volume Control The [SAT] button will blink 3-times and go out. Label Mode Mode (VCR) Rec - When you first program your remote, volume / mute To return volume control to your TV, repeat step 1, are controlled through your TV (except AUDIO which then press [VOL...
  • Page 5 ] - to “go back” through the codes using Envision 073 095 the “CH “ function on your devices. Rev. 04/06 454 456 © 2006, Contec Holdings, LLC Fisher 355 356 Note: When you find the correct code, the ® ® Point and Press...
  • Page 6 015 018 042 044 049 107 109 110 216 384 Sony 014 020 021 178 054 055 068 073 090 394 395 398 399 417 Soundesign 095 101 102 103 389 Squareview 390 396 403 406 407 Montgomery Ward 022 023 026 053 071 Superscan 072 108 211 213 Supre-Macy...
  • Page 7 Daytron 345 365 173 174 086 Gradiente 243 291 Realistic 066 132 238 363 Harmon Kardon Dynatech Samsung 269 271 275 276 278 Hitachi Emerson 033 086 132 326 327 Sansui 120 367 379 331 332 333 334 335 Sanyo 238 346 357 363 JVC-RM- 477 478...
  • Page 8 Aiwa Fosgate Audionics Carver 176 155 Goldstar (LG) Crown Harman Kardon 130 257 305 306 Denon Hitachi Fisher 230 274 Jensen Goldstar (LG) 114 241 Harman Kardon Kenwood 063 277 444 LG (Goldstar) Kenwood 131 176 274 289 299 Luxman Krol Magnavox 080 463...
  • Page 9 15. Using Your IRC550 Remote Control Yellow hi-lites are new and need translation Power for selected device Select Mode of remote. Press … [SAT] - for Satellite mode [TV] - for TV mode [DVD] - for DVD mode [AUDIO] - for Audio mode Exit any menu, display program [AUX] - for Auxiliary mode information...
  • Page 10 15. Comment utiliser votre télécommande IRC550 Mettre en marche l’appareil sélectionné Pour sélectionner le mode de votre télécommande. Appuyez sur l’une des touches suivantes : Quitter n’importe quel menu et pour afficher des [SAT] – mode satellite renseignements sur les émissions en cours [TV] –...
