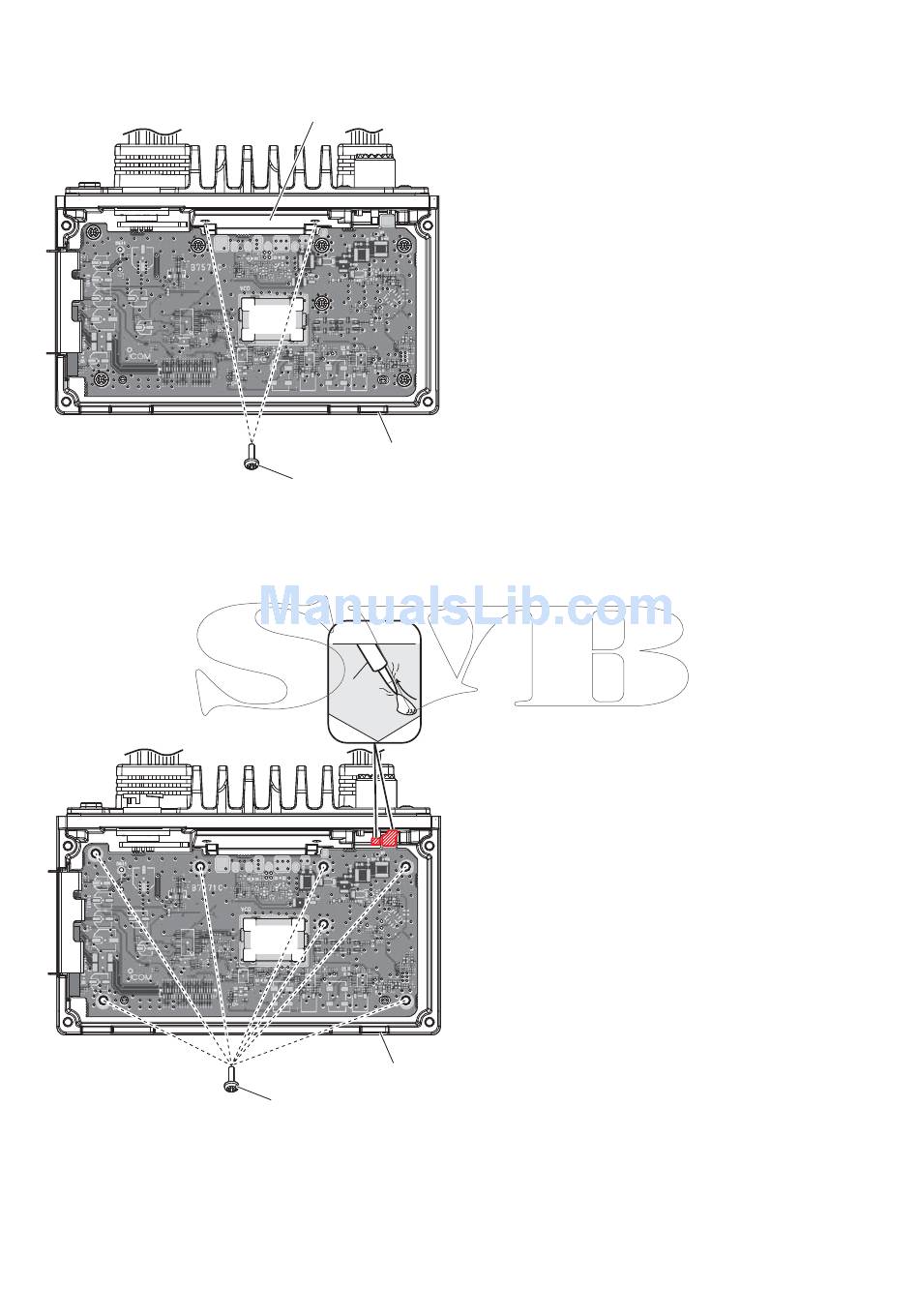

2. Removing the MAIN UNIT (Continued)
5) Remove 2 screws from the PA module.
(Top view)
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
6) Remove 7 screws from the top of MAIN UNIT.
7) Unsolder 2 points at the antenna connector.
8) Remove the MAIN UNIT from the chassis.
(Top view)
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
PA module
Chassis
Screw x2
UNSOLDER
Solder
remover
Chassis
Screw x7
3-2
